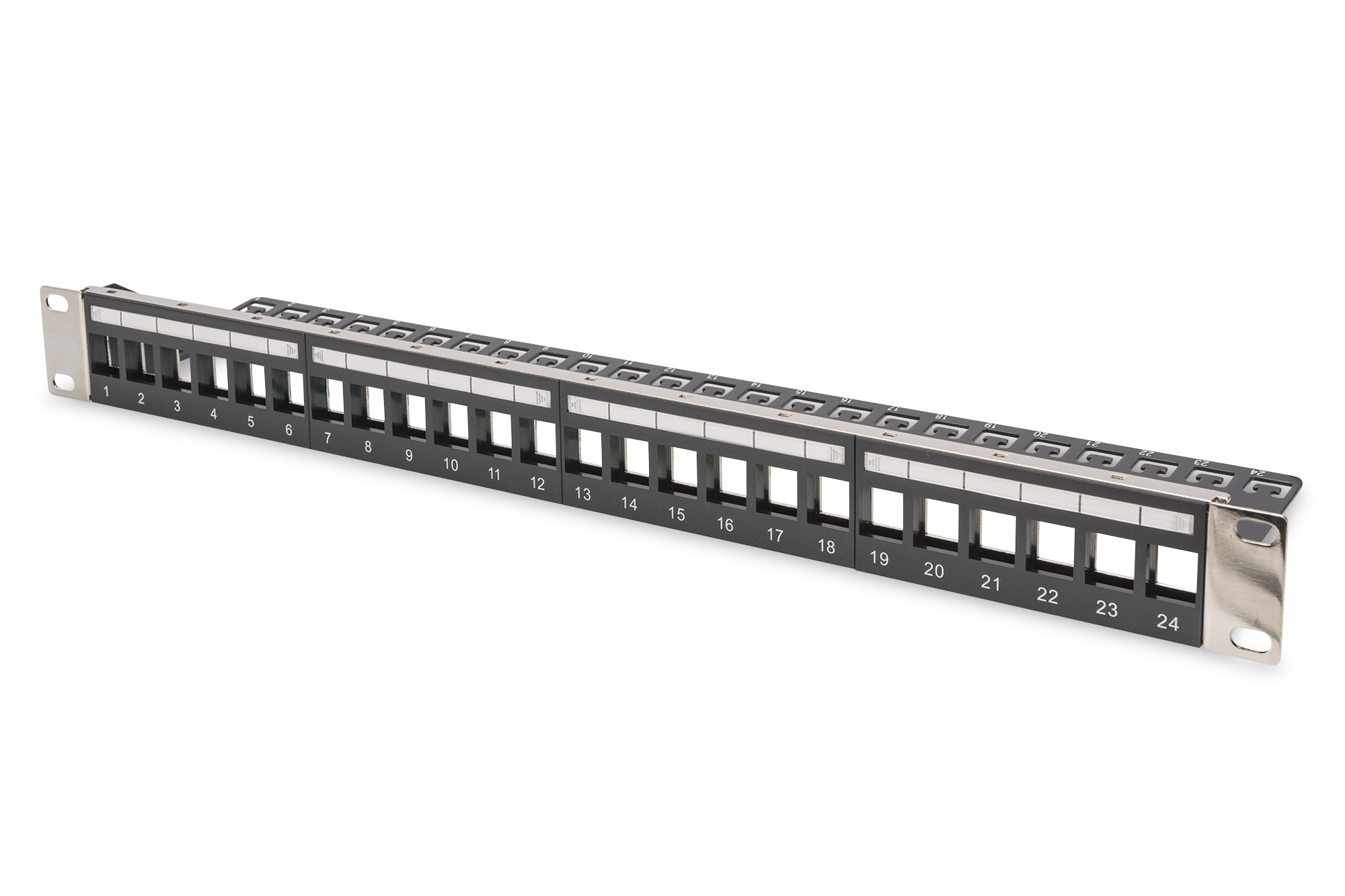

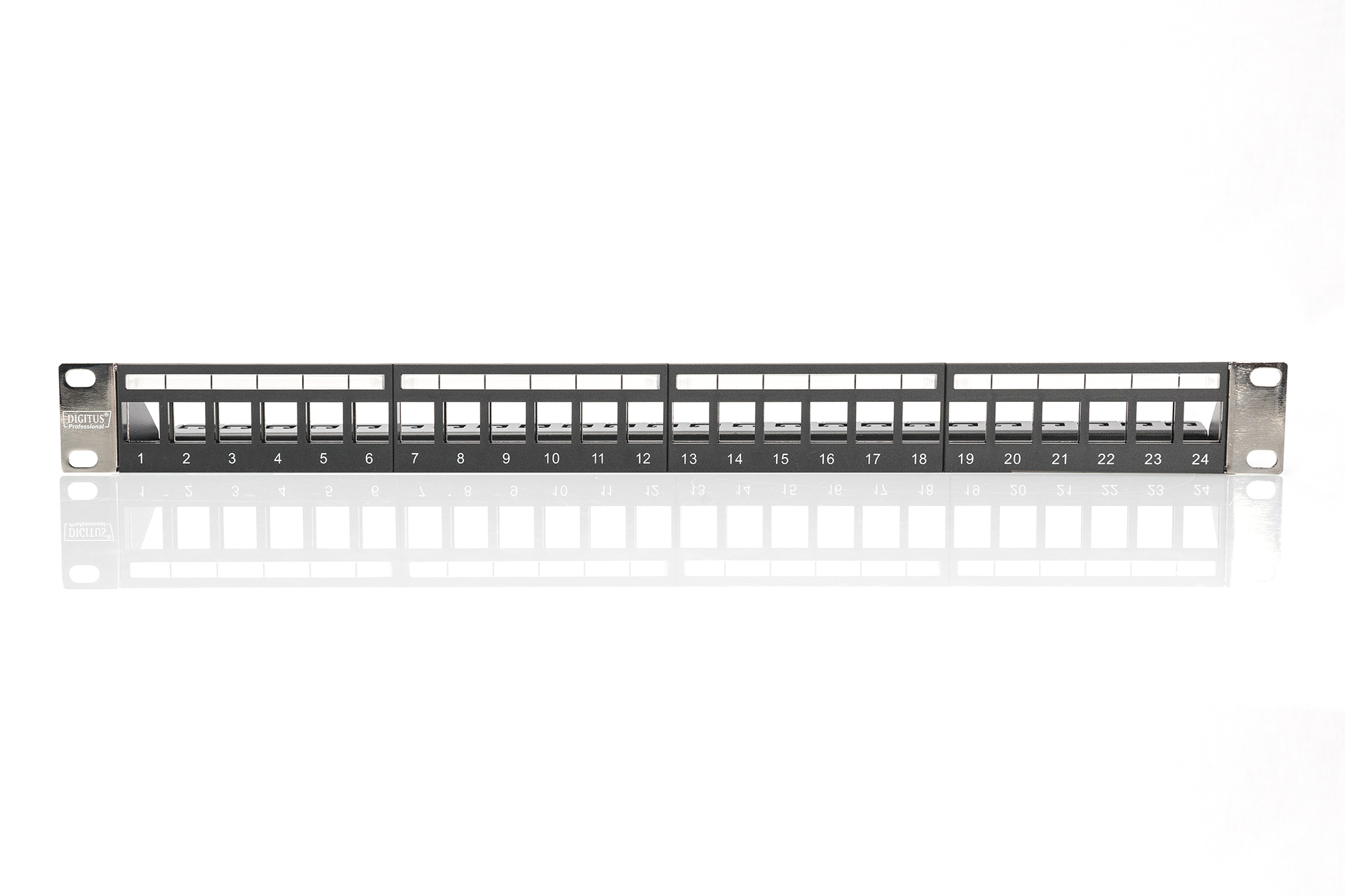

Modular Patch Panel for Keystone Jack 1U Rack Mount - Unloaded

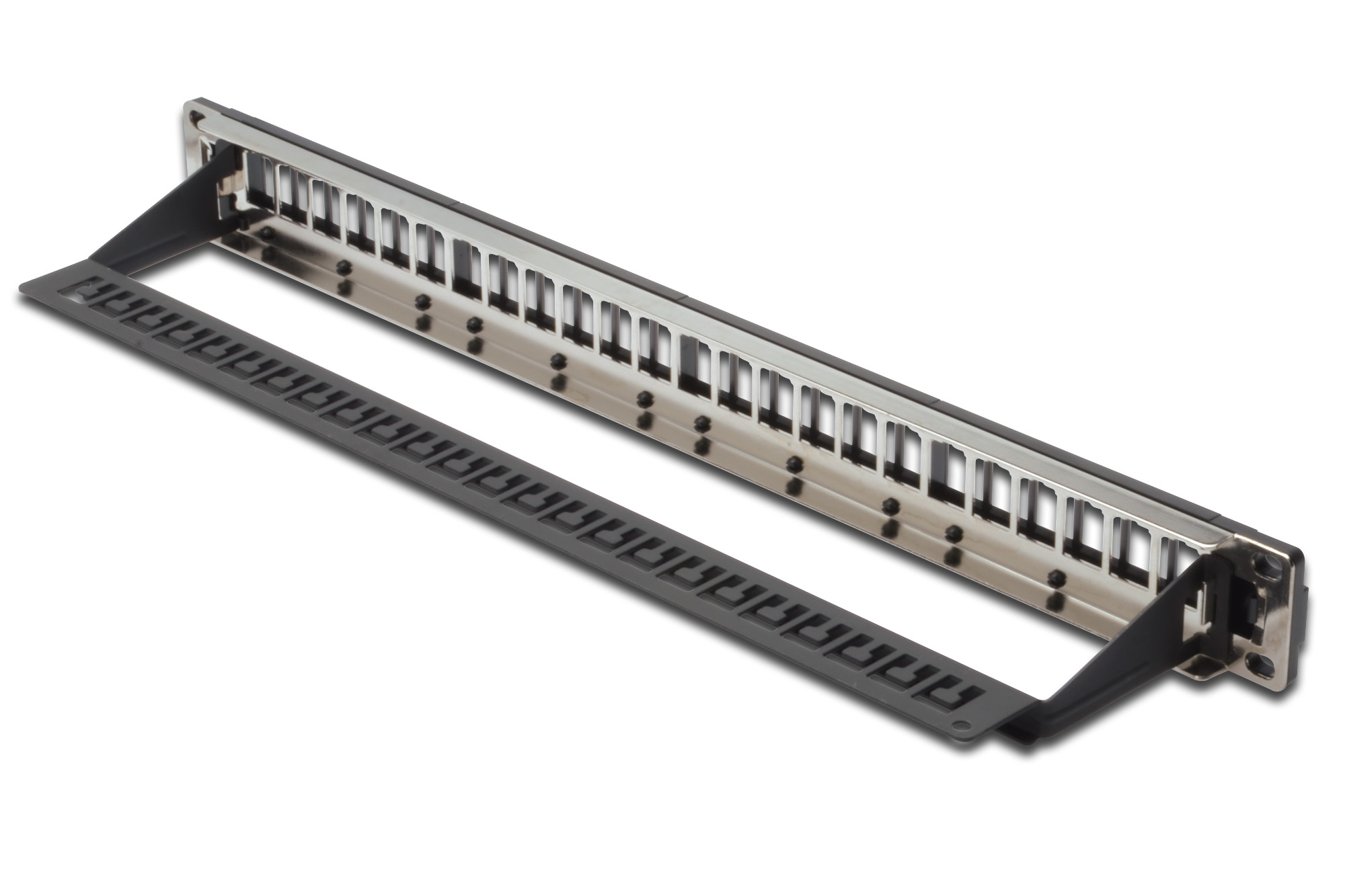

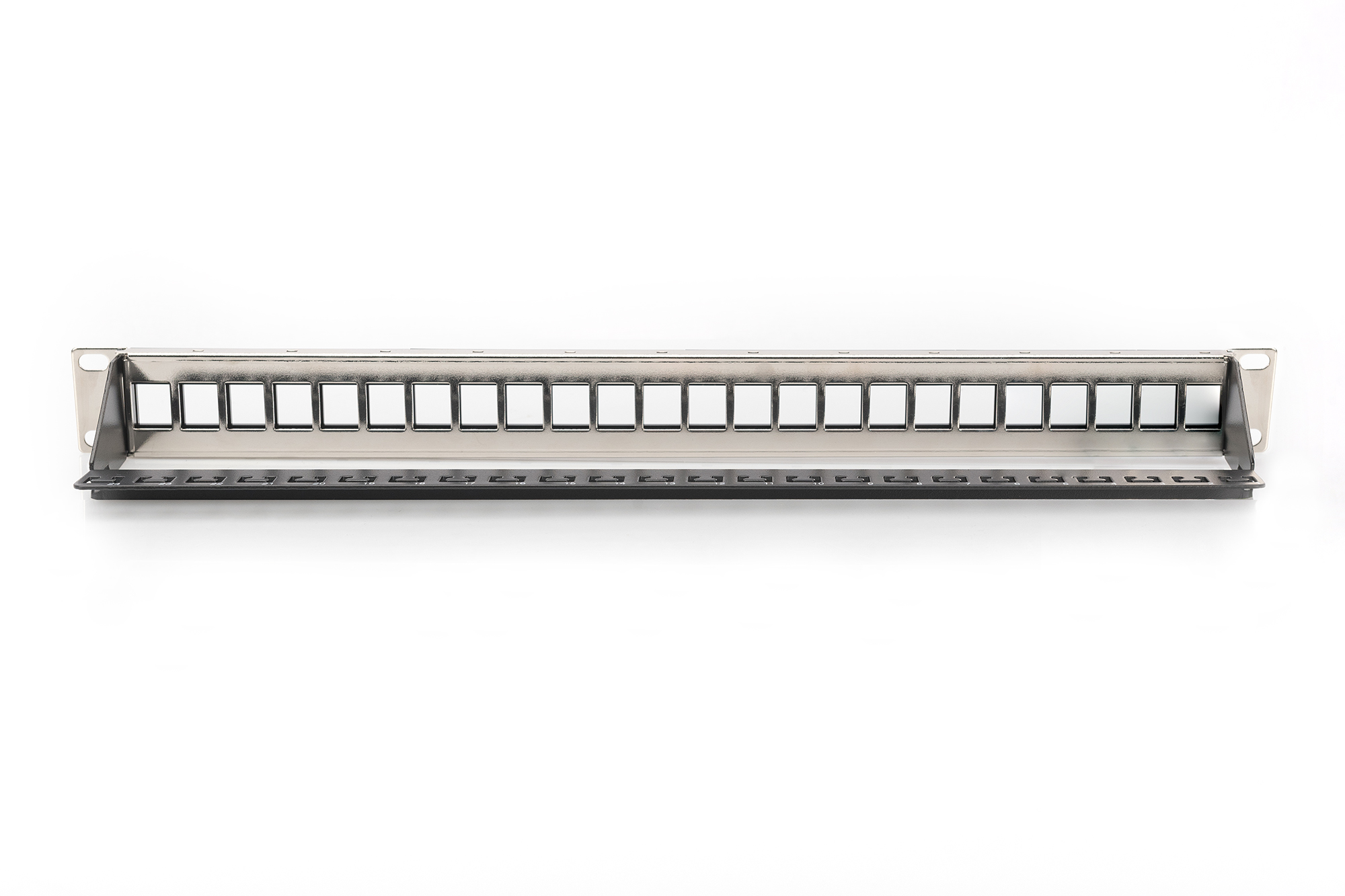

DIGITUS® modular patch panel are specially designed for 19" rack installation and for mounting DIGITUS® keystone jacks. The modular patch panel is available in two different colors, grey RAL 7035 and black RAL 9005. The material consists of SPCC, 1.55 mm cold-rolled carbon steel in compliance with JIS G3141-1996. The front part of the modular patch panel is manufactured of ABS High-Impact UL-94V-0. The rear management tray with special designed cable tie positions, is delivered as snapping in tool for simple installation.

[Data Network Technology][Copper Cabling]

Specification

Product
Product id	631611
Brand	Digitus
Partnr	DN-91411-LF
EAN/UPC code	4016032338543
Product information sheet(s)
Class	Patch panel copper (twisted pair)
Number of buses/couplings	24
Suitable for number of connectors	24
Type of connector	RJ45 8(8)
Screened	true
Category	Other
Connection type	Other
Number of height units	1
Colour	Black
RAL-number	9005
Mounting method	482.6 mm (19 inch) mounting
Height	44 mm
Width	483 mm
Depth	15 mm
Compatible with Grade2TV according to XP-C 90-483	false
Compatible with Grade3TV according to XP-C 90-483	false
