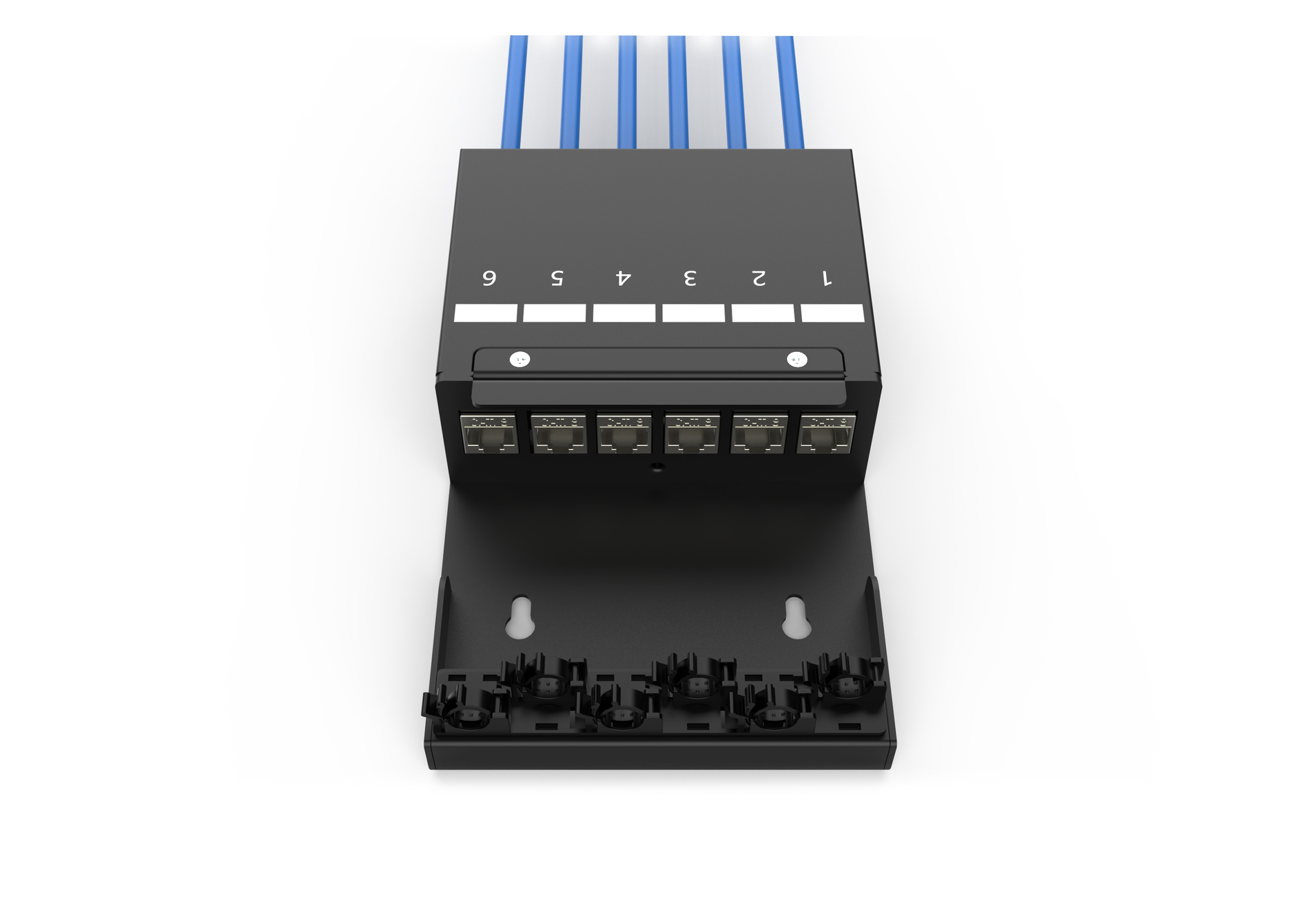

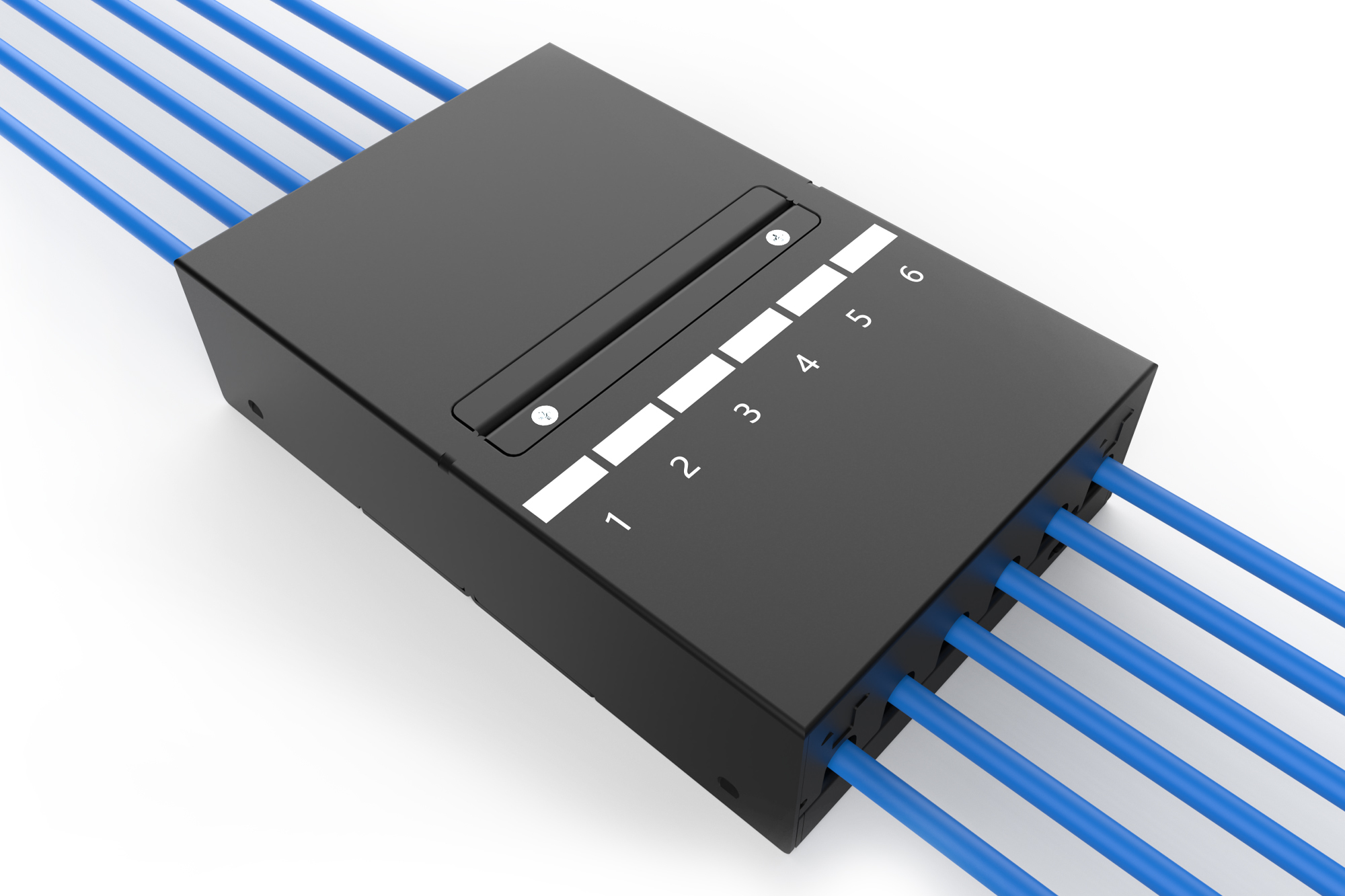

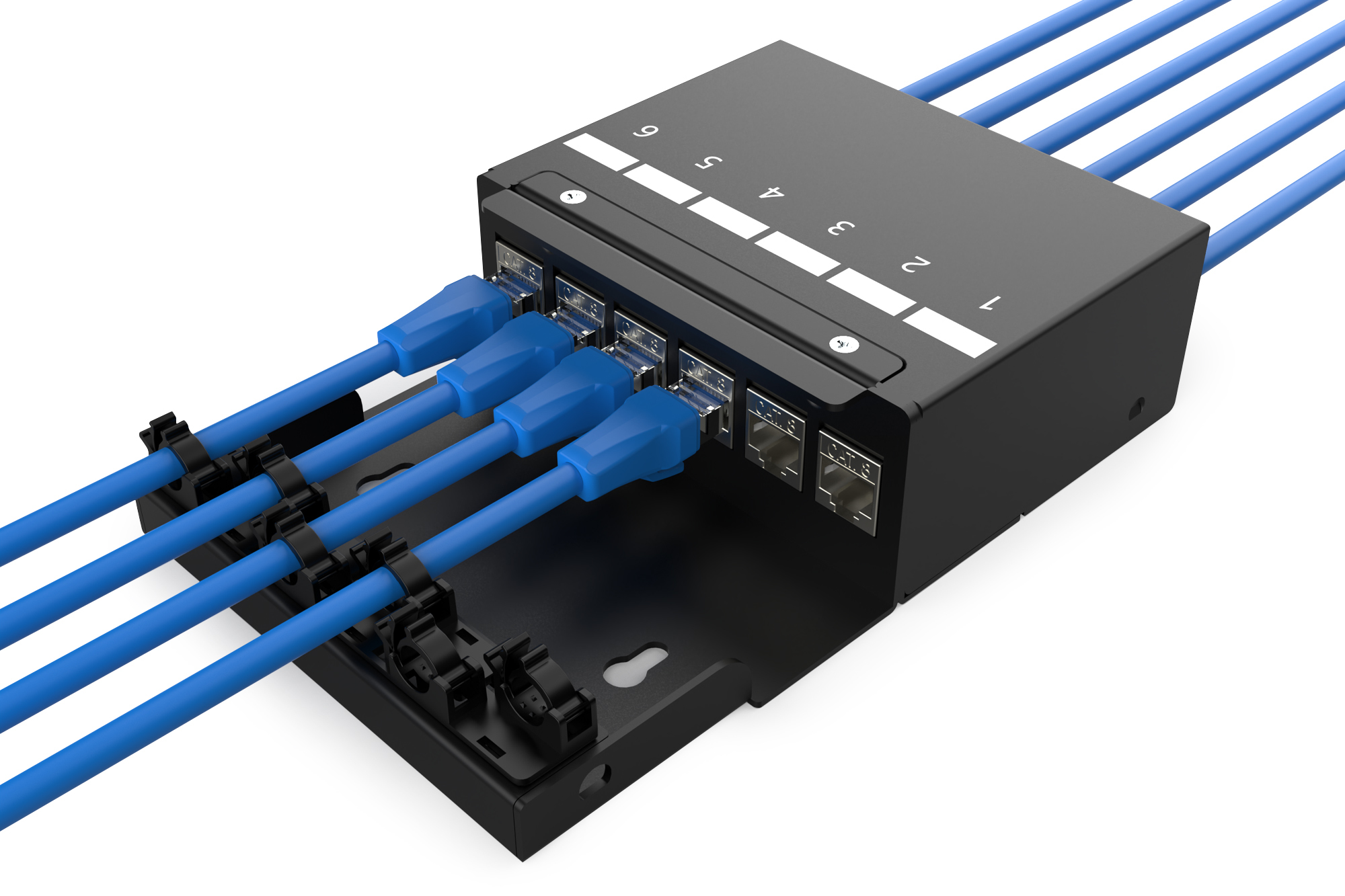

Consolidation point box, 6-port Keystone modules with intelligent cable manager

Optimal solution to ensure flexible network cabling in the modern office environment (clean desk)

- Robust steel housing with hinged cover and bolted cable clamp
- Suitable for the installation of 6 RJ45 Keystone modules

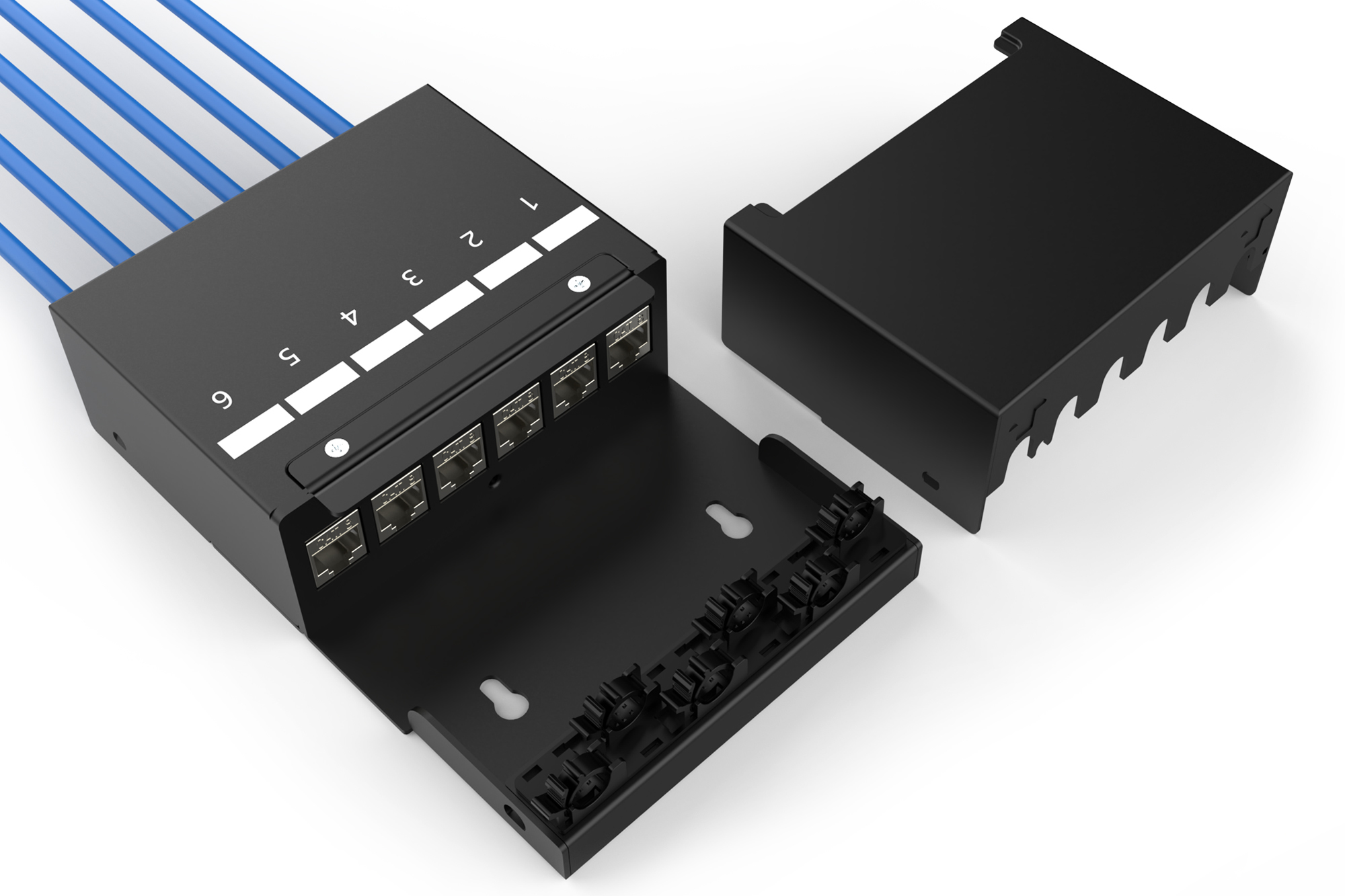

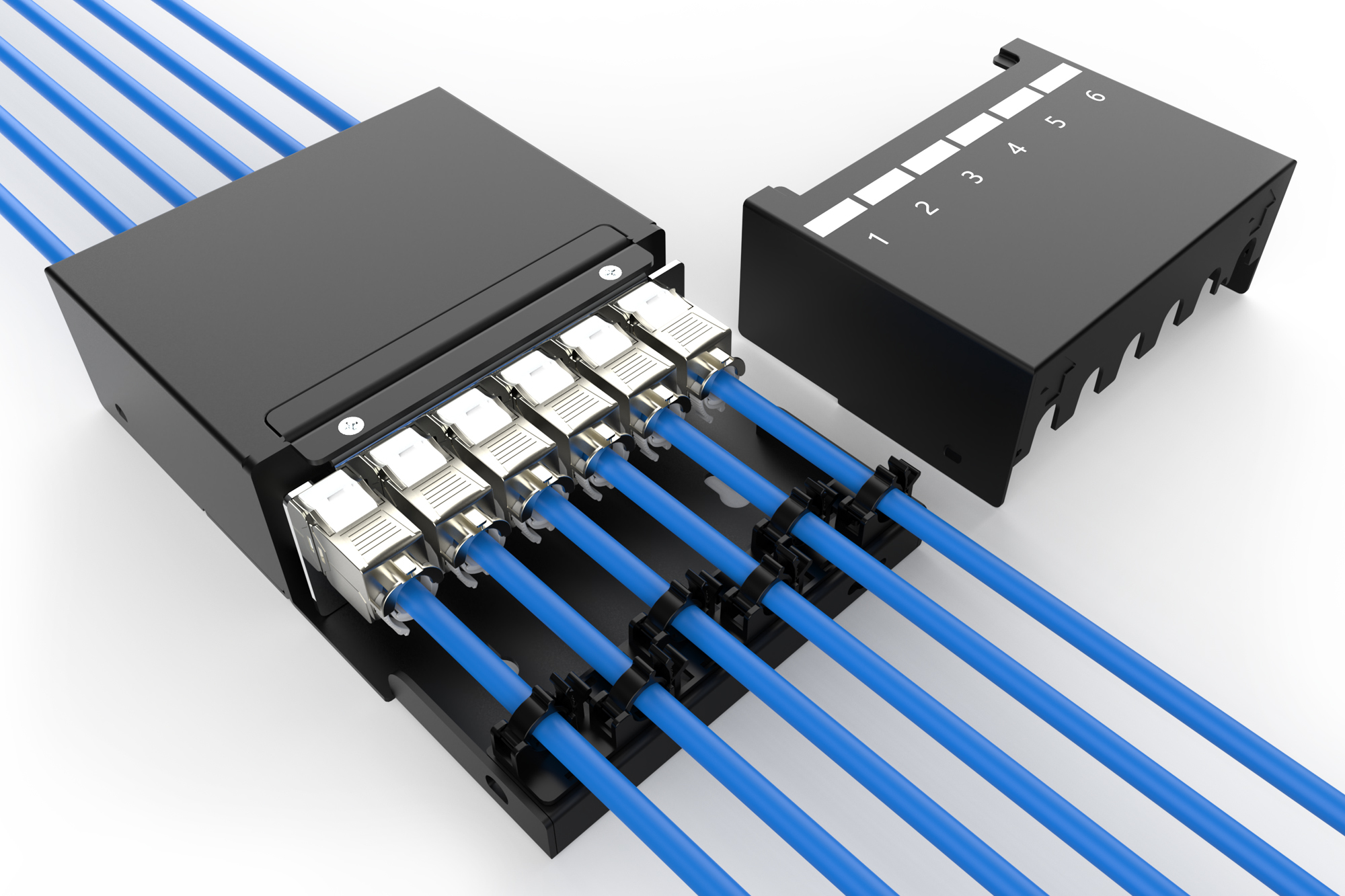

- The part accessible for the patch cables is hinged and can be opened without tools using a quick-release fastener

Consolidation points (CP) are collection points for structured building cabling, especially in the commercial or industrial sector. These core elements of cabling systems are used in buildings and open-plan offices as connection or distribution points for workstations. The DIGITUS® consolidation point box is designed to accommodate 6 Keystone modules. The box can be used for wall mounting, in ceilings, underfloor or as a desktop version. With optional accessories (AN-25188), it can also be mounted on a top-hat rail. A cost-effective and flexible solution for a wide range of areas and applications.

[Data Network Technology][Copper Cabling]

Specification

Product
Product id	1010886
Brand	Digitus
Partnr	DN-93708-6
EAN/UPC code	4016032497516
Product information sheet(s)
Class	Distribution box for cable floor system
Suitable for data	false
Suitable for 230 V	false
Suitable for loop-through wiring	false
Material	Steel
Surface protection	Other
Length	172 mm
Width	113 mm
Height	44 mm
Type of input	RJ45
Number of inputs	6
Type of output	RJ45
Number of outputs	6
Type of branch	Other
Pre-wired	false
With connection block	false
With strain relief	false
