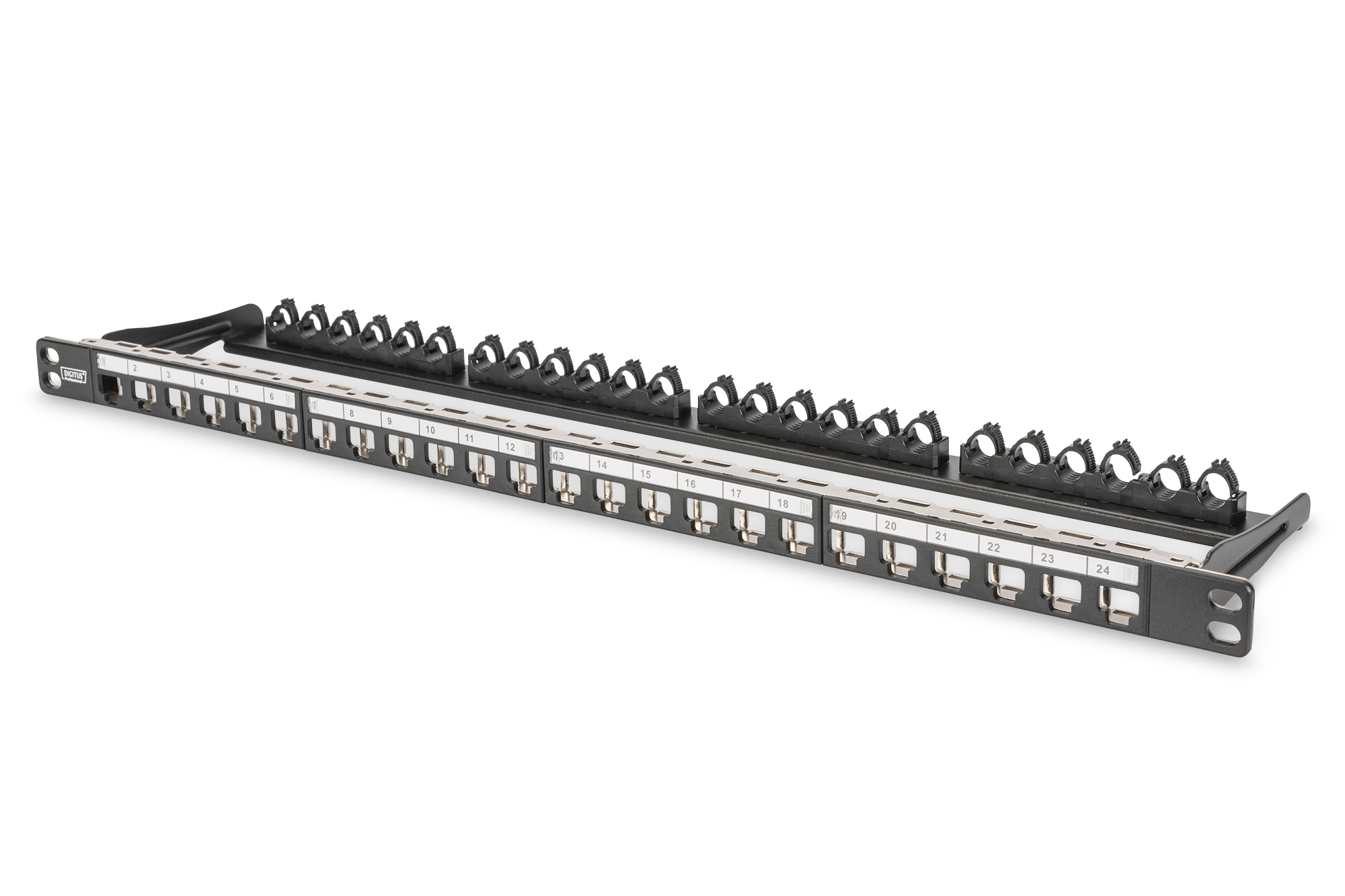

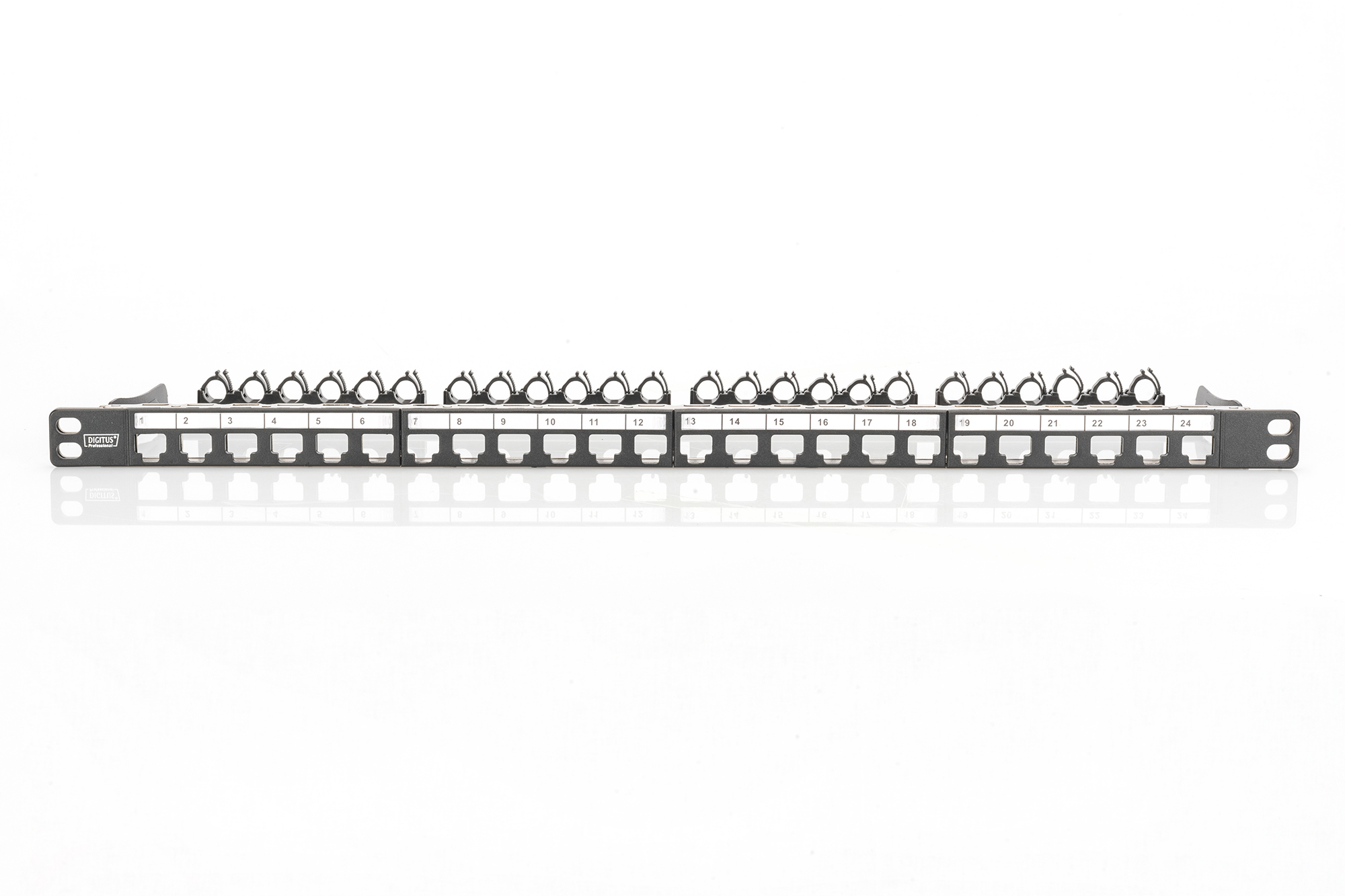

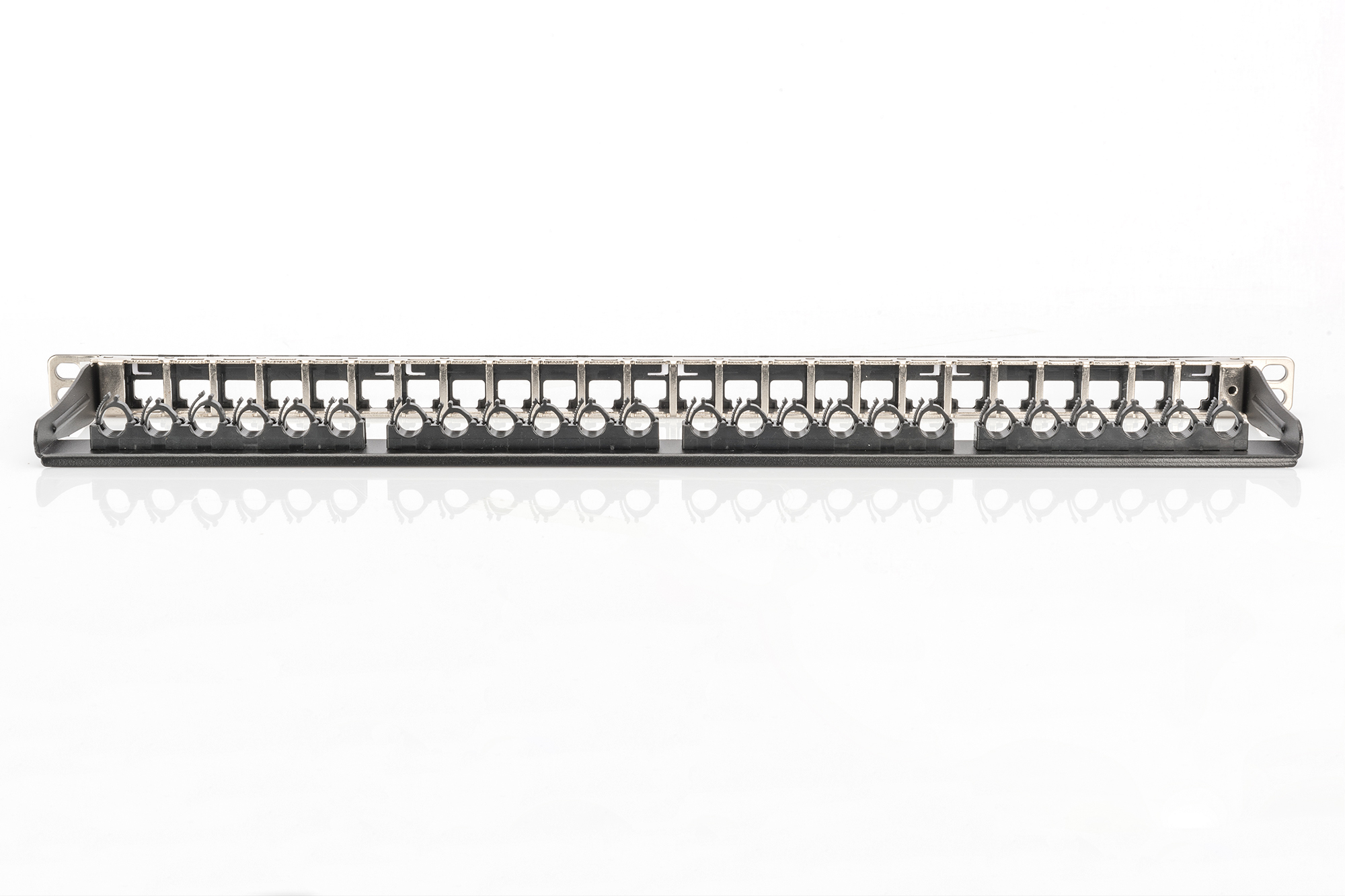

Modular High Density Patch Panel, shielded

The DIGITUS® 24-port 0.5U patch panel offers you a high packing density. As the panel is only 0.5U high, 48 ports (2 panels with 24 ports each) can be installed on 1U.

[Data Network Technology][Copper Cabling]

Specification

Product
Product id	548753
Brand	Digitus
Partnr	DN-91422
EAN/UPC code	4016032343295
Product information sheet(s)
Class	Patch panel copper (twisted pair)
Number of buses/couplings	24
Suitable for number of connectors	24
Type of connector	RJ45 8(8)
Screened	true
Category	Other
Connection type	Other
Number of height units	0.5
Colour	Black
RAL-number	9005
Mounting method	482.6 mm (19 inch) mounting
Height	18 mm
Width	482.6 mm
Depth	15 mm
Compatible with Grade2TV according to XP-C 90-483	false
Compatible with Grade3TV according to XP-C 90-483	false
