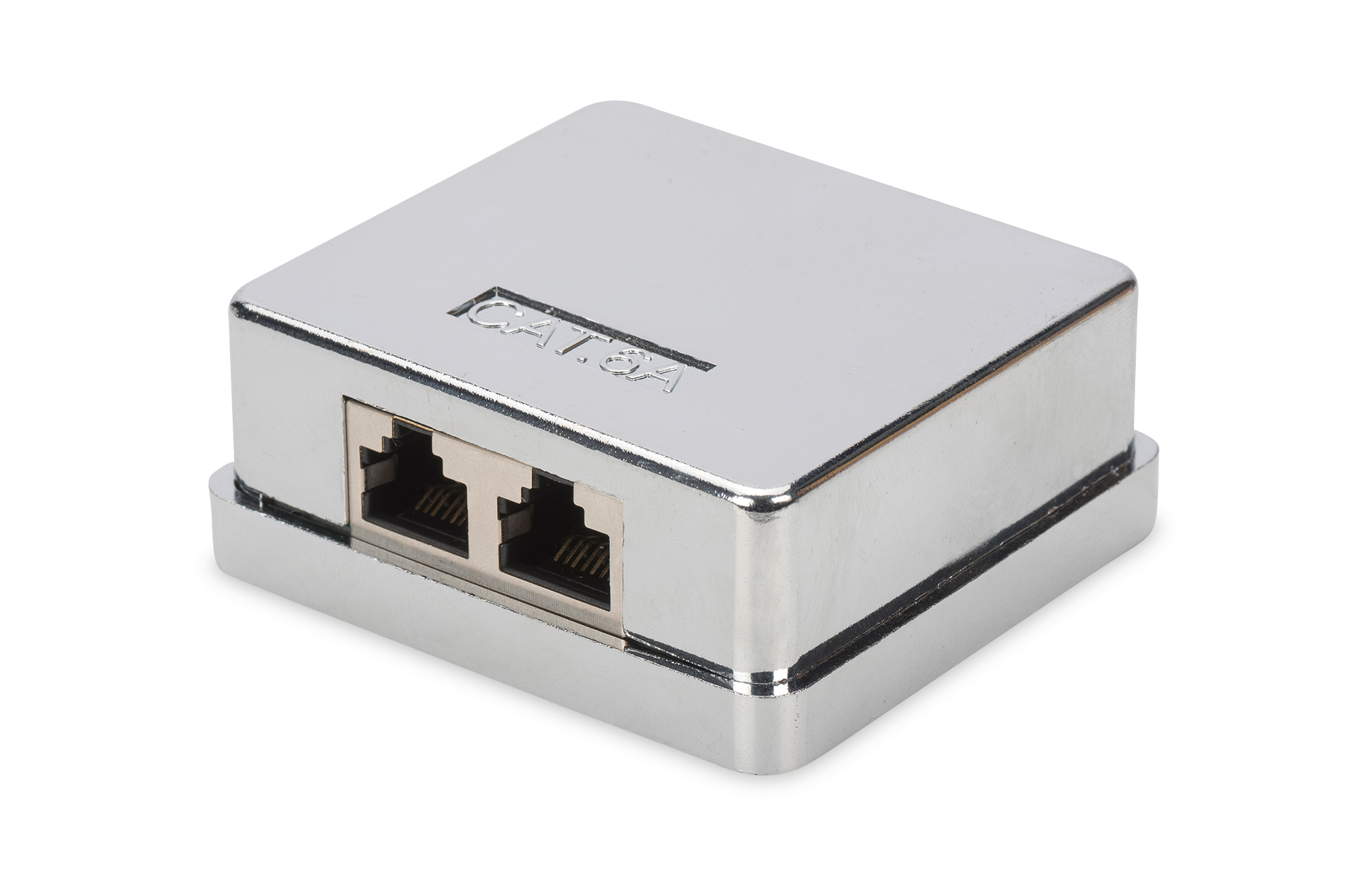

CAT 6A Surface Mount Box, 2-port

Future-oriented standards and high-end quality for your network.

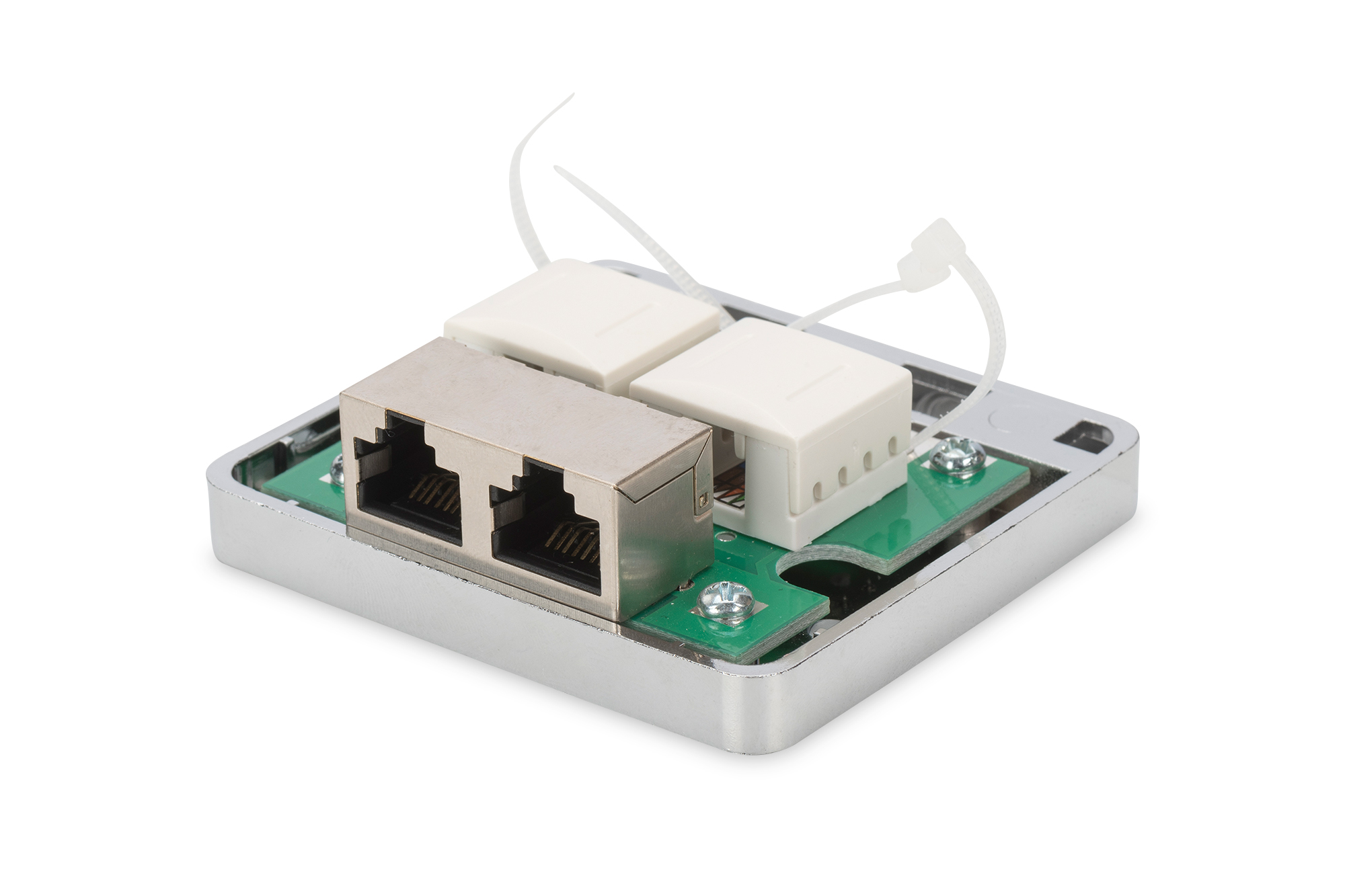

The DIGITUS® surface mount box is used for installation of consolidations points at desks, in intermediate ceillings as well as in underfloor systems. The installation will be placed via LSA-strips on the one side and via RJ45 jack on the other side.

[Data Network Technology][Copper Cabling]

Specification

Product
Product id	572486
Brand	Digitus
Partnr	DN-93713
EAN/UPC code	4016032425885
Product information sheet(s)
Class	Data communication connection box copper (twisted pair)
Surface mounting	true
Flush-mounted installation	false
Duct installation	false
Floor box/subfloor mounted	false
Type of fastening	Other
Assembly arrangement	Other
Type of connector	2x RJ45 8(8)
With buses/couplings	false
Suitable for number of connectors	2
Category	6A (IEC)
Colour	Silver
RAL-number	9006
Connection type	LSA
Shielded buses	true
Shielded housing	true
Separate earthing connection	false
With label space	false
Compatible with third-party covers	false
Separate strain relief	false
Mounting method shielding connection	Clamp
Outlet direction	Straight
With dust cover	false
With terminal resistor	false
Degree of protection (IP)	IP20
Mechanical coding	false
Colour coding	false
Device width	67 mm
Device height	26 mm
Device depth	61 mm
