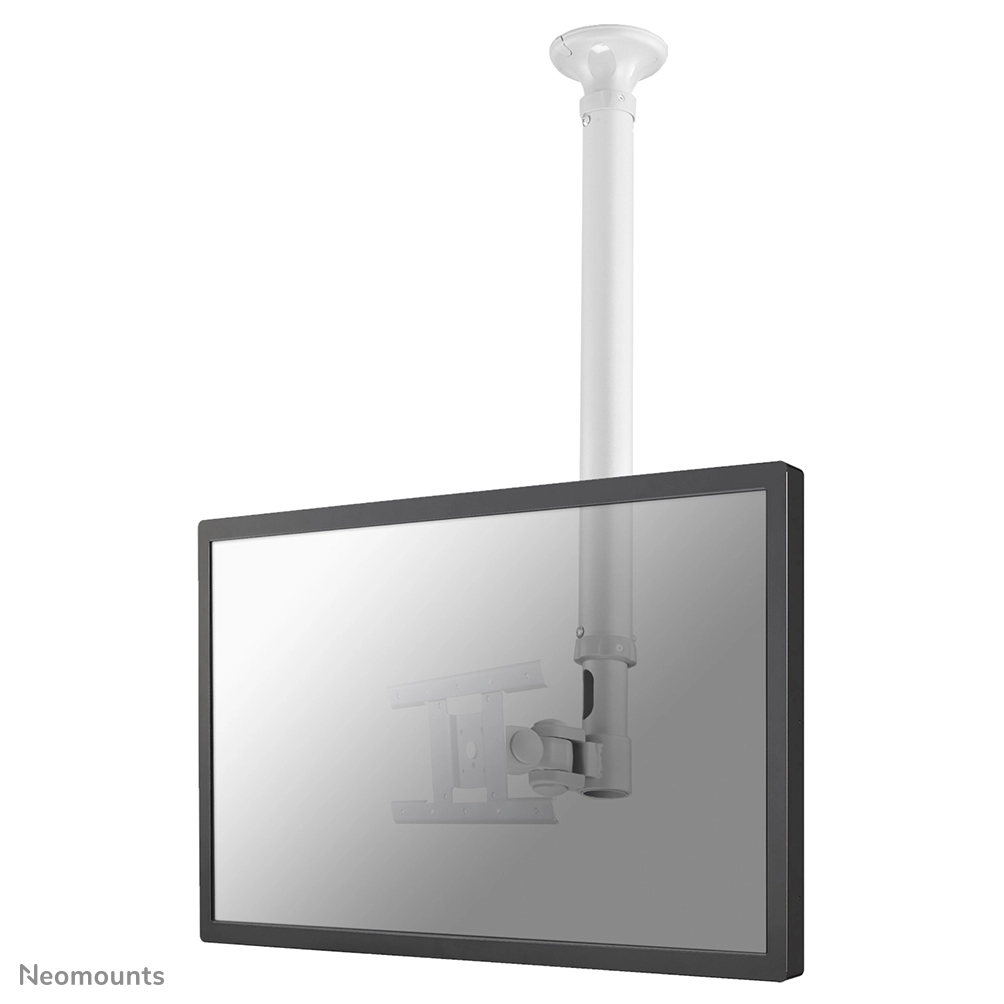

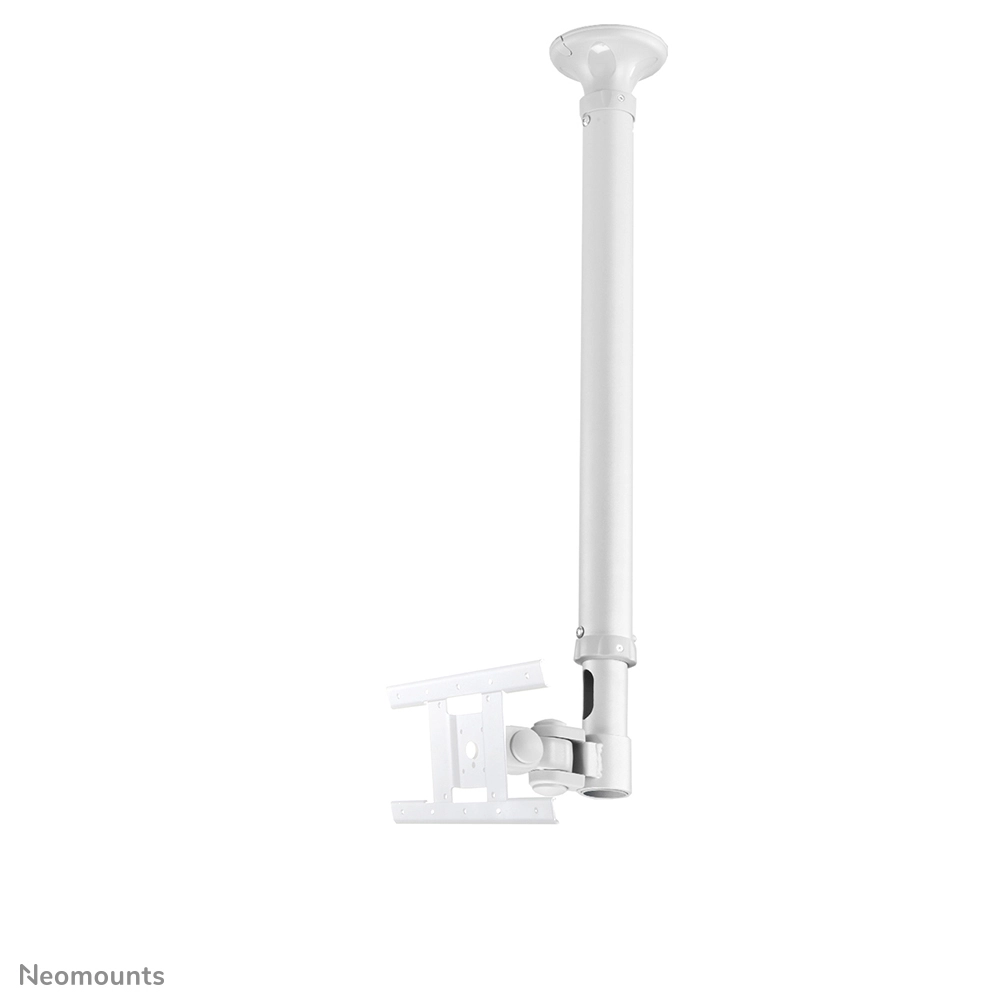

The Neomounts by Newstar ceiling mount, model FPMA-C100WHITE is a tilt- and swivel ceiling mount for flat screens up to 30". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.

Neomounts by Newstar's versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 79 to 129 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.

Neomounts by Newstar FPMA-C100WHITE has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 12 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.

All installation material is included with the product.

Specification

Product
Product id	459938
Brand	Neomounts
Partnr	FPMA-C100WHITE
EAN/UPC code	8717371444846
Warranty (months)	5 year
Mounting
Maximum weight capacity	12 kg
Minimum screen size compatibility	10 "
Mounting type	Ceiling
Maximum screen size	30
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	200 x 100 mm
Panel mounting interface	75 x 75, 100 x 100, 100 x 200 mm
Ergonomics
Height adjustment type	Manual

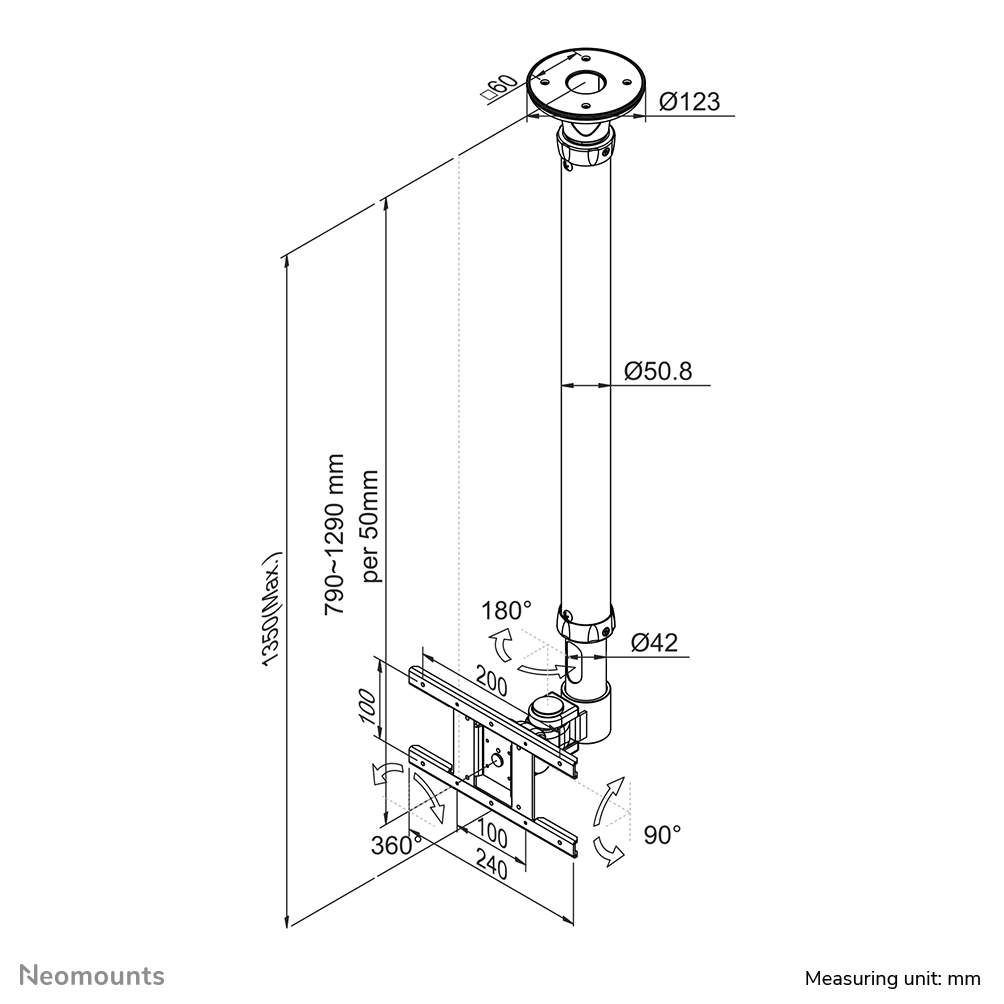

Height adjustment range	790 - 1290 mm
Swivelling	Y
Swivel angle	180 °
Height adjustment	Y
Tilt angle range	0 - 180 °
Tilt adjustment	Y
Depth adjustment	90 mm
Tilt angle	180 °
Rotating	Y
Design
Product colour	White
Housing material	Steel
Weight & dimensions
Depth	90 mm
Height	1290 mm
Weight	4320 g
Package width	858 mm
Package depth	152 mm
Package height	188 mm
Packaging data
Package weight	4500 g
Technical details
Angle of rotation	360 °
Number of displays supported	1
Other features
Country of origin	Taiwan
Logistics data
Quantity per master (outer) case	3 stuk(s)
Master (outer) case net weight	14600 g
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	39 stuk(s)
Master (outer) case width	880 mm
Master (outer) case length	495 mm
Master (outer) case height	175 mm
Master (outer) case weight	16200 g
Quantity per master (outer) case	3 stuk(s)
