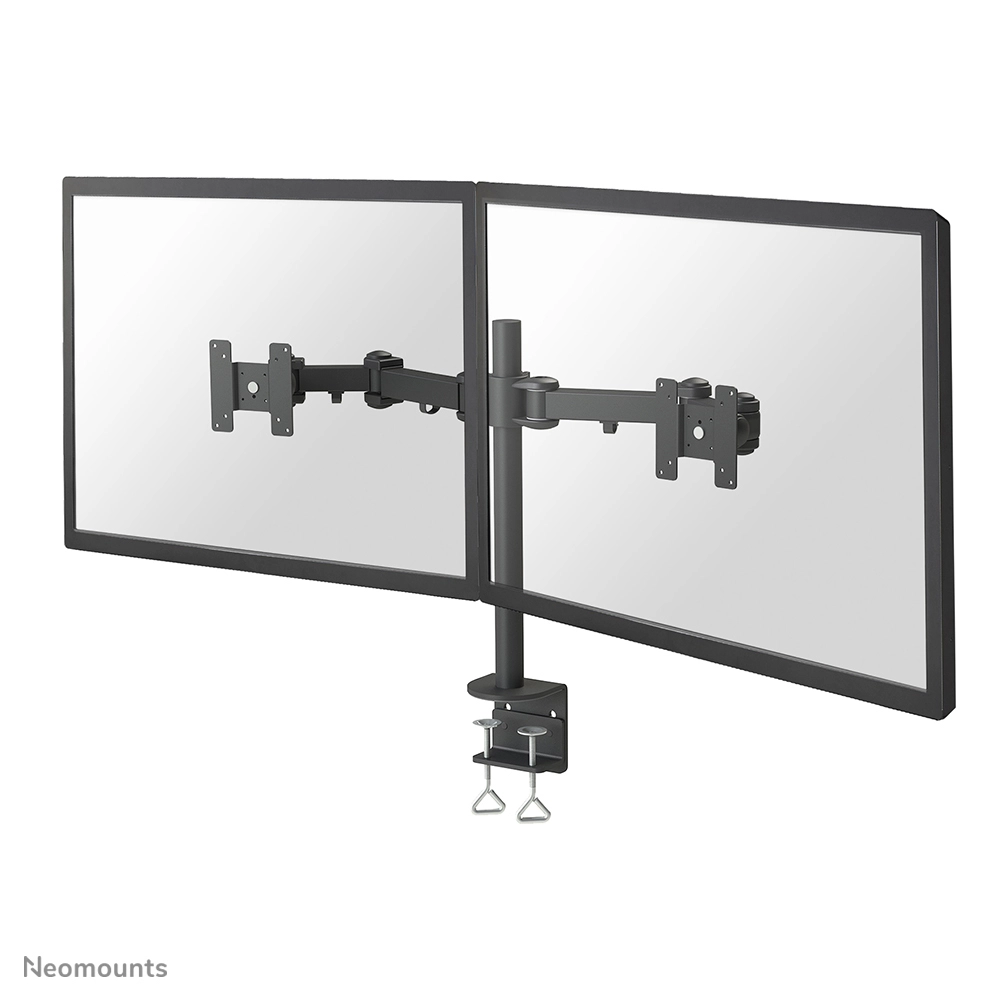

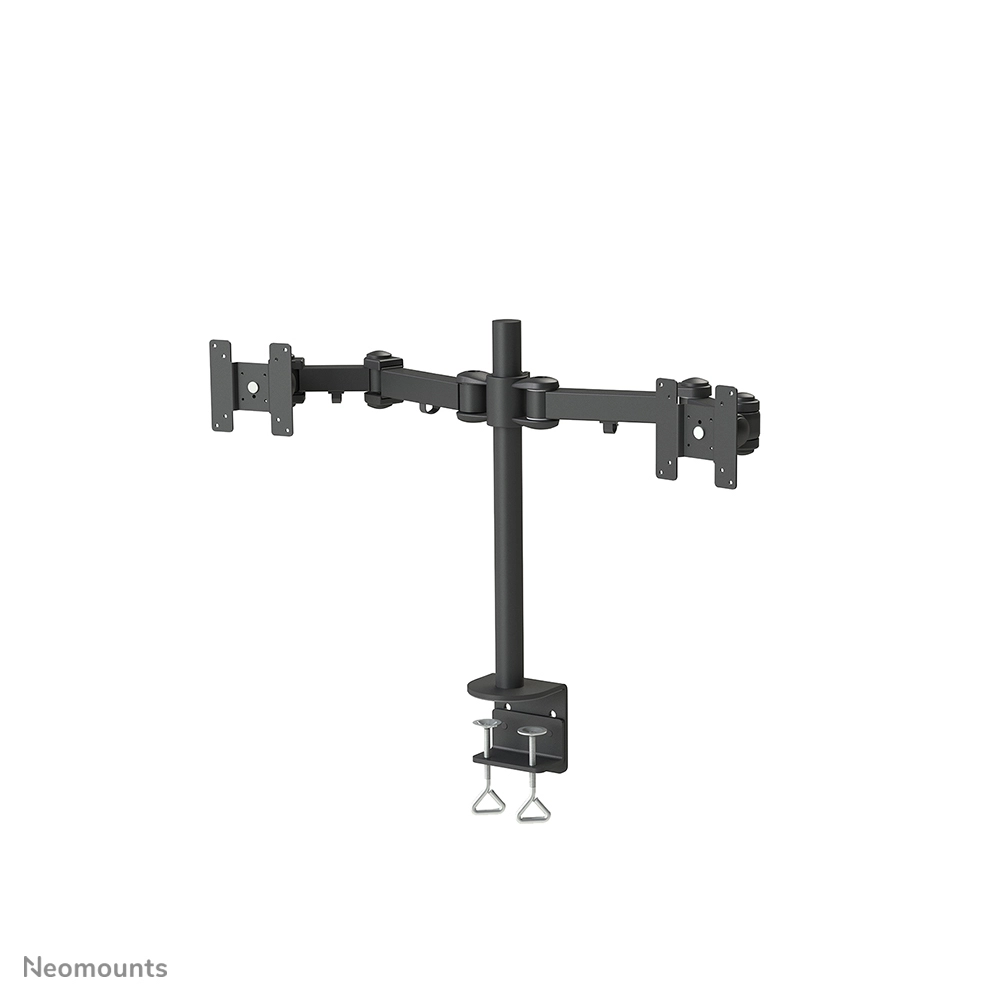

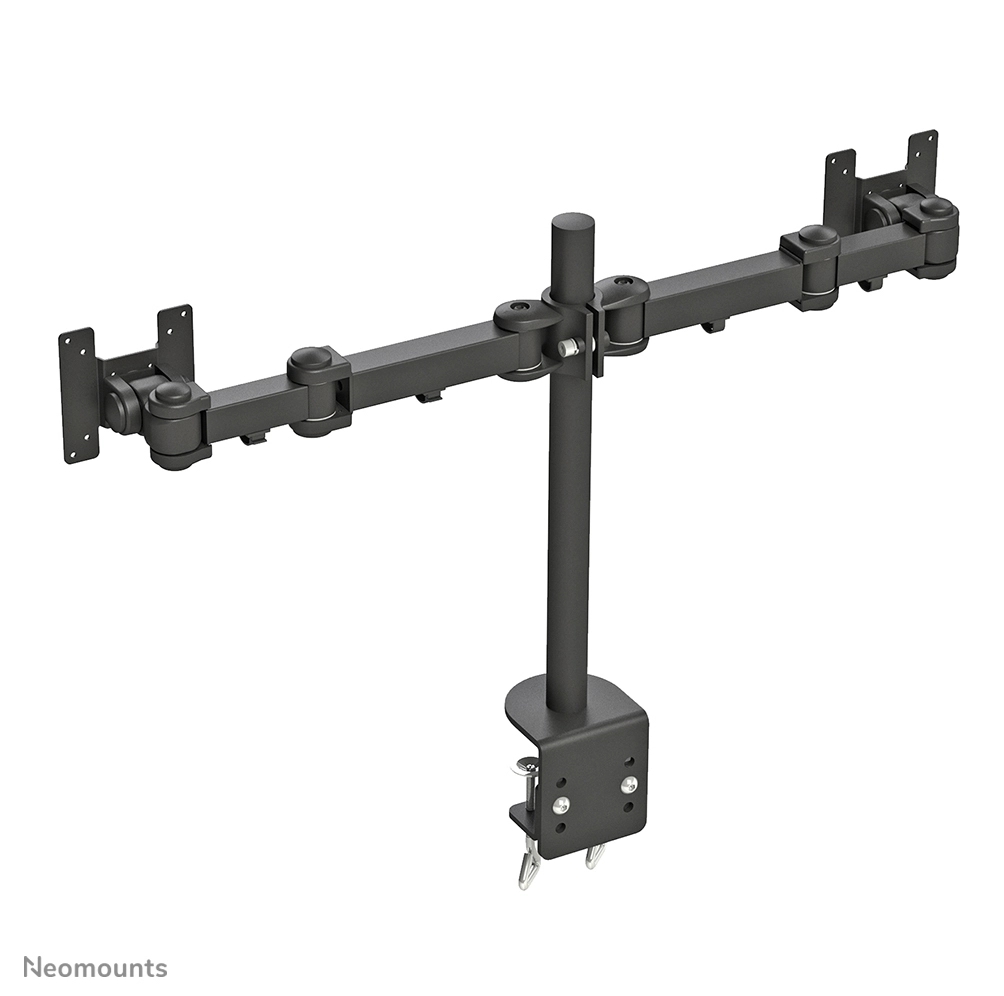

The Neomounts by Newstar desk mount, model FPMA-D960D is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp.

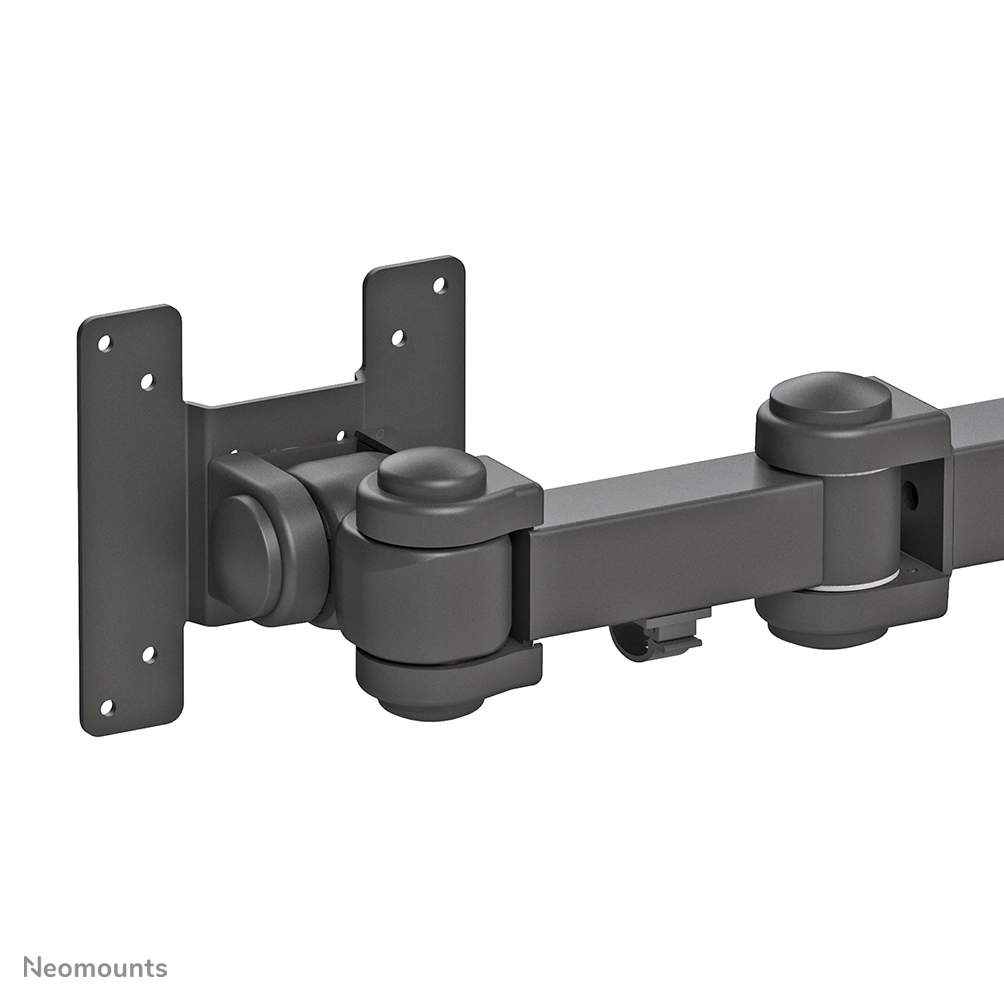

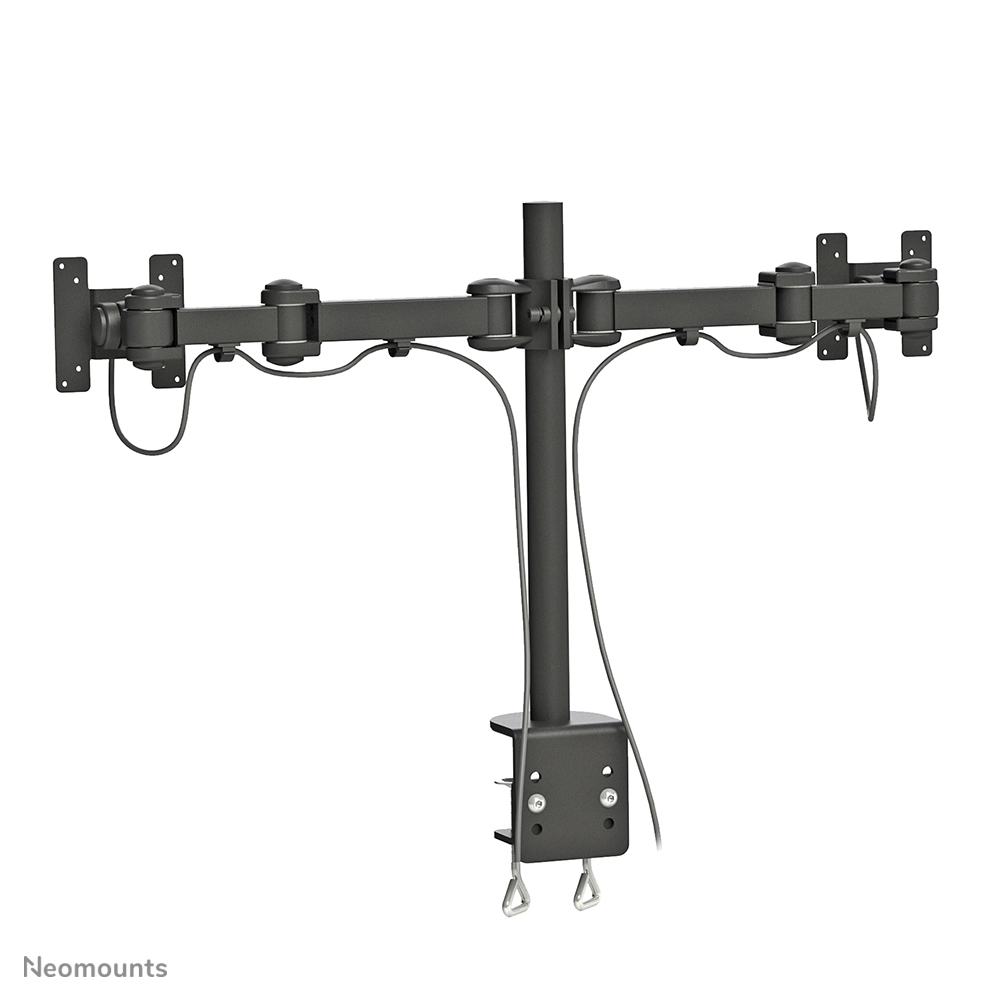

Neomounts by Newstar's versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 45 centimetres. Depth adjustable from 10 to 43 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts by Newstar FPMA-D960D has three pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.

For curved monitor screens we recommend our FPMA-D960 PLUS models; our FPMA-D960DVBLACKPLUS is suitable for screens up to 49" (124 cm). The weight capacity of this product is 32 kg each screen. This monitor arm is therefore extremely suitable for widescreens and curved screens.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specification

Product
Product id	275560
Brand	Neomounts
Partnr	FPMA-D960D
EAN/UPC code	8717371442224
Warranty (months)	5 year
Mounting
Maximum weight capacity	8 kg
Maximum weight capacity (per display)	8 kg
Minimum screen size compatibility	10 "
Maximum screen size	27
Mounting type	Desk

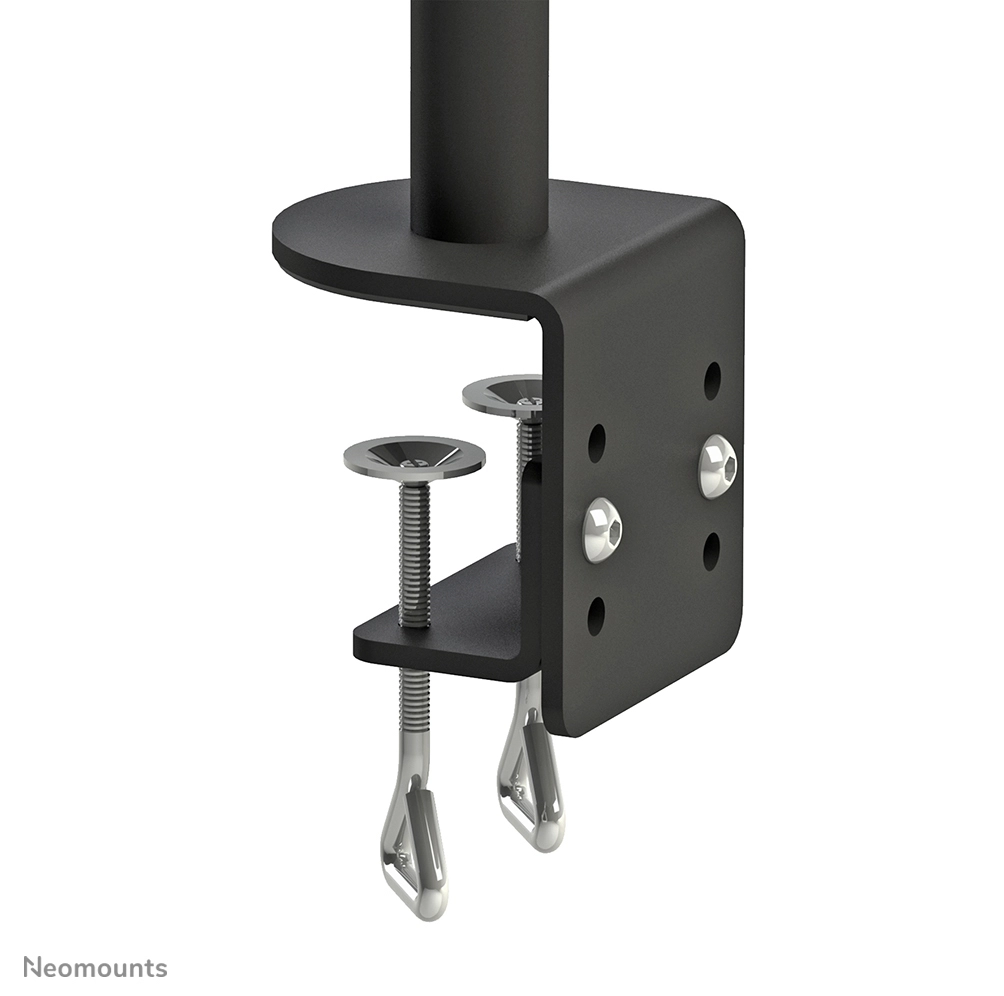

Mounting	Clamp
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	75 x 75, 100 x 100 mm
Number of displays supported	2
Desk thickness (min)	8 mm
Desk thickness (max)	100 mm
Distance to the wall (min)	100 mm
Distance to the wall (max)	430 mm
Ergonomics
Height adjustment	Y
Height adjustment type	Manual

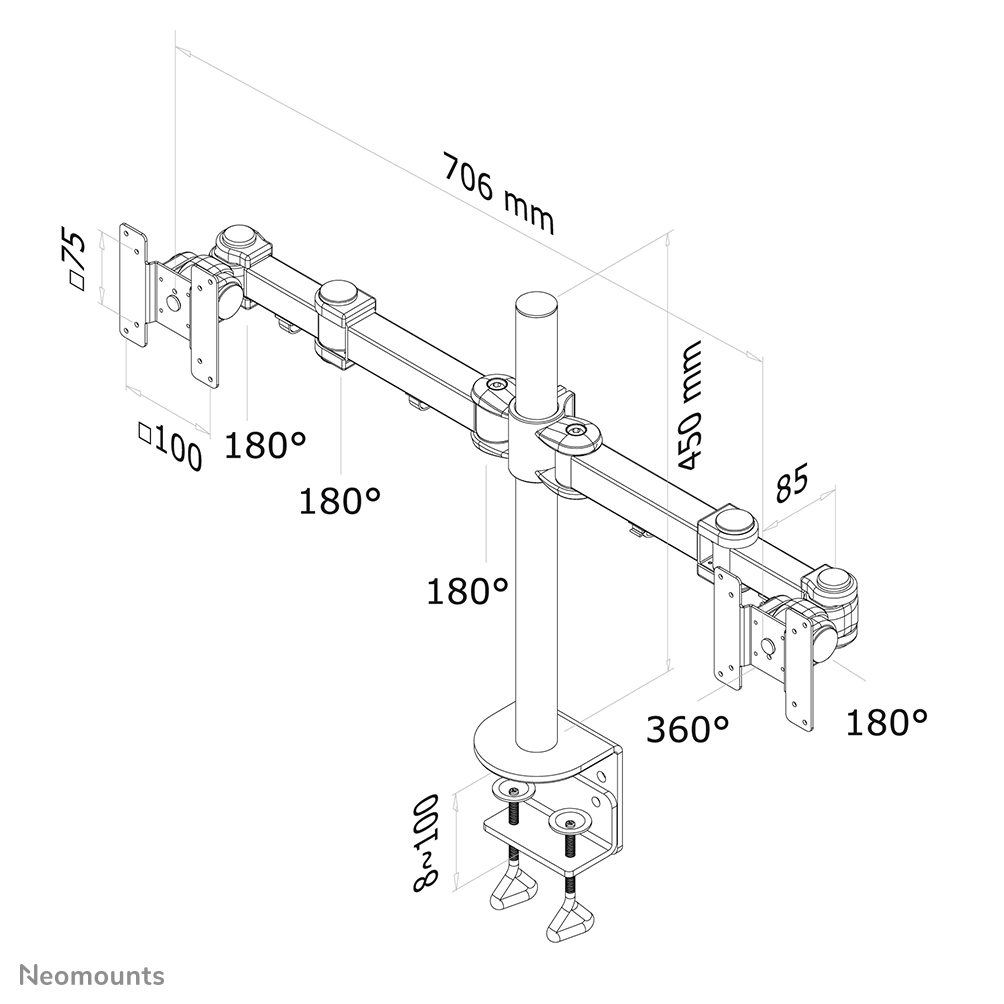

Height adjustment range	0 - 450 mm
Depth adjustment range	100 - 430 mm
Tilt angle range	0 - 180 °
Swivelling	Y
Swivel angle	180 °
Angle of rotation	360 °
Cable management	Y
Rotating	Y
Tilt adjustment	Y
Design
Product colour	Black
Housing material	Steel
Weight & dimensions
Depth	1430 mm
Height	450 mm
Weight	5140 g
Package width	585 mm
Package depth	239 mm
Package height	145 mm
Package weight	5700 g
Logistics data
Master (outer) case width	610 mm
Master (outer) case length	275 mm
Master (outer) case height	340 mm
Master (outer) case weight	13400 g
Quantity per master (outer) case	2 stuk(s)
Master (outer) case net weight	12500 g
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	52 stuk(s)
Other features
Country of origin	Taiwan
