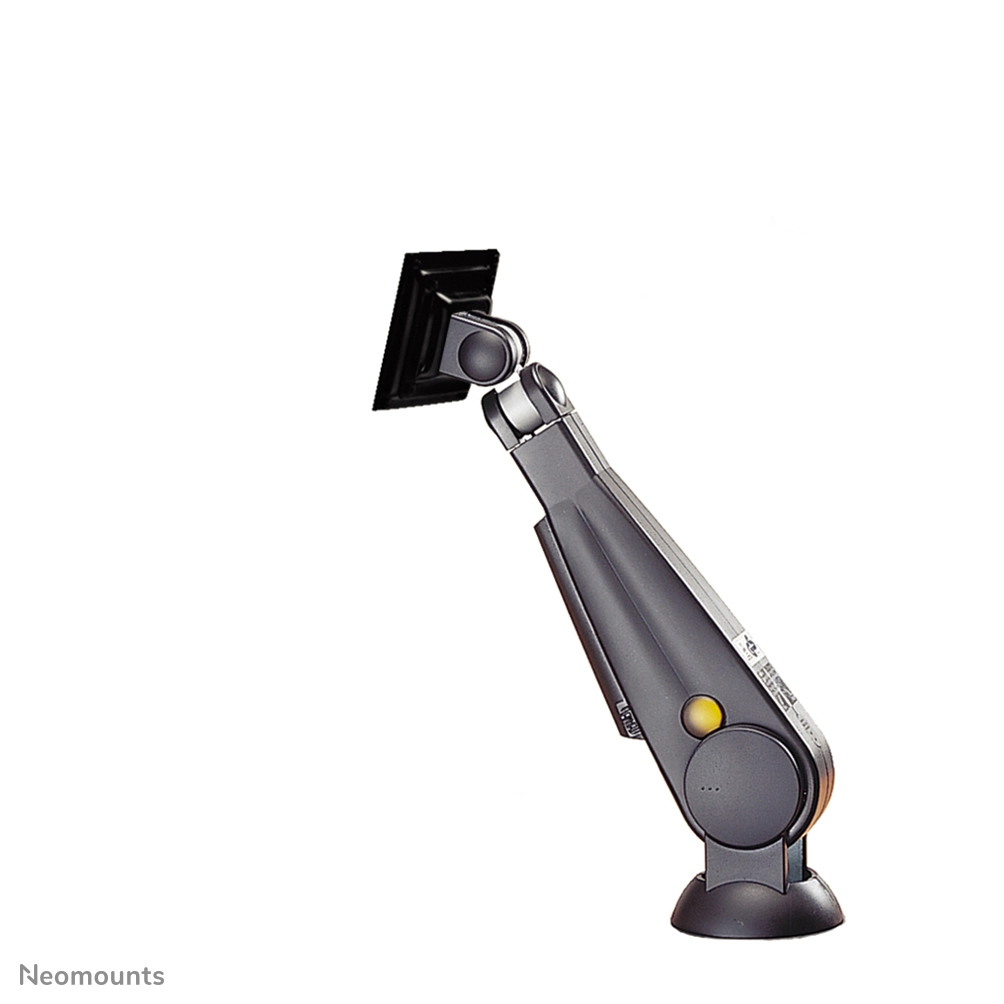

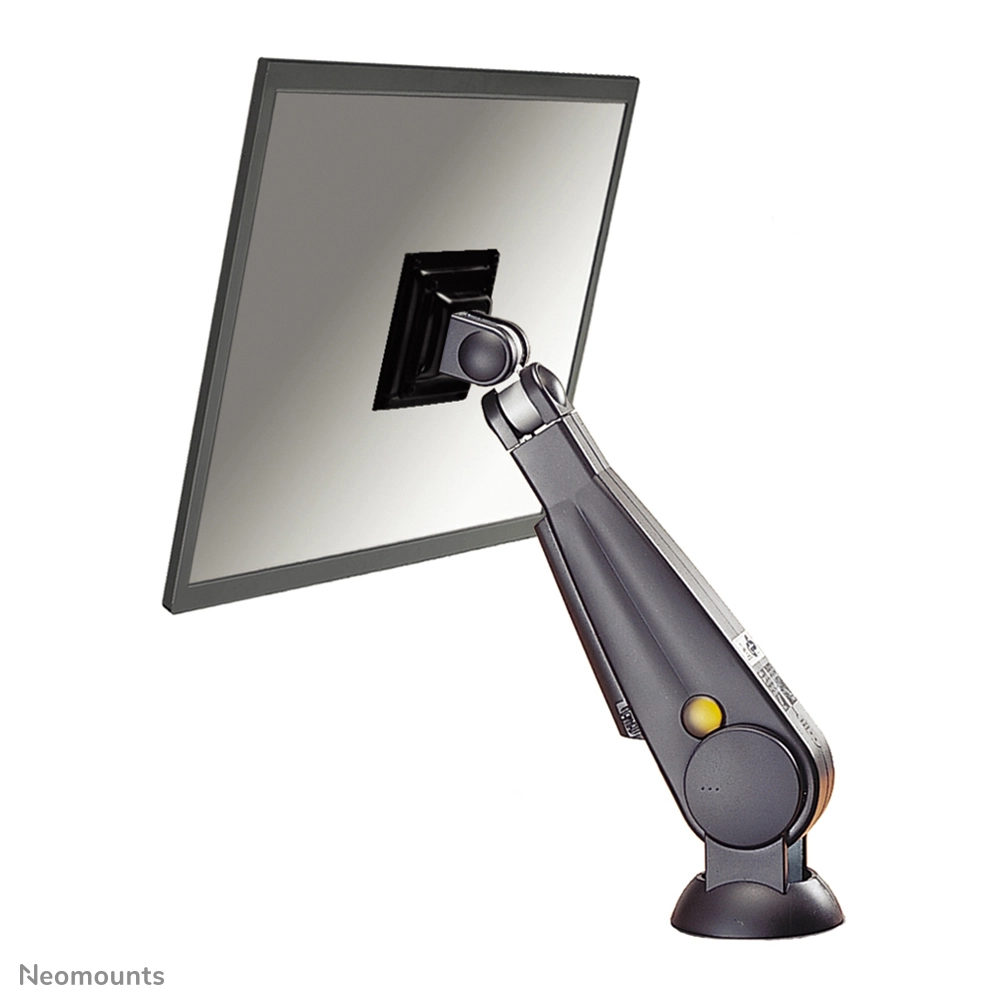

The Neomounts by Newstar desk mount, model FPMA-D200BLACK is a tilt-, swivel and rotatable desk mount for flat screens up to 30". This mount is a great choice for space saving placement on desks using a grommet mount.

Neomounts by Newstar's versatile tilt (180°), rotate (270°) and swivel (270°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily height adjustable from 0 to 45 centimetres using a gas spring. Depth adjustable from 15 to 48 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts by Newstar FPMA-D200BLACK has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 10 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specification

Product
Product id	133583
Brand	Neomounts
Partnr	FPMA-D200BLACK
EAN/UPC code	8717371440114
Warranty (months)	5 year
Mounting
Maximum weight capacity	10 kg
Maximum weight capacity (per display)	10 kg
Minimum screen size compatibility	10 "
Maximum screen size	30
Mounting type	Desk
Mounting	Grommet
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	75 x 75 mm
Number of displays supported	1
Distance to the wall (min)	150 mm
Distance to the wall (max)	480 mm
Ergonomics
Height adjustment	Y
Height adjustment type	Gas spring

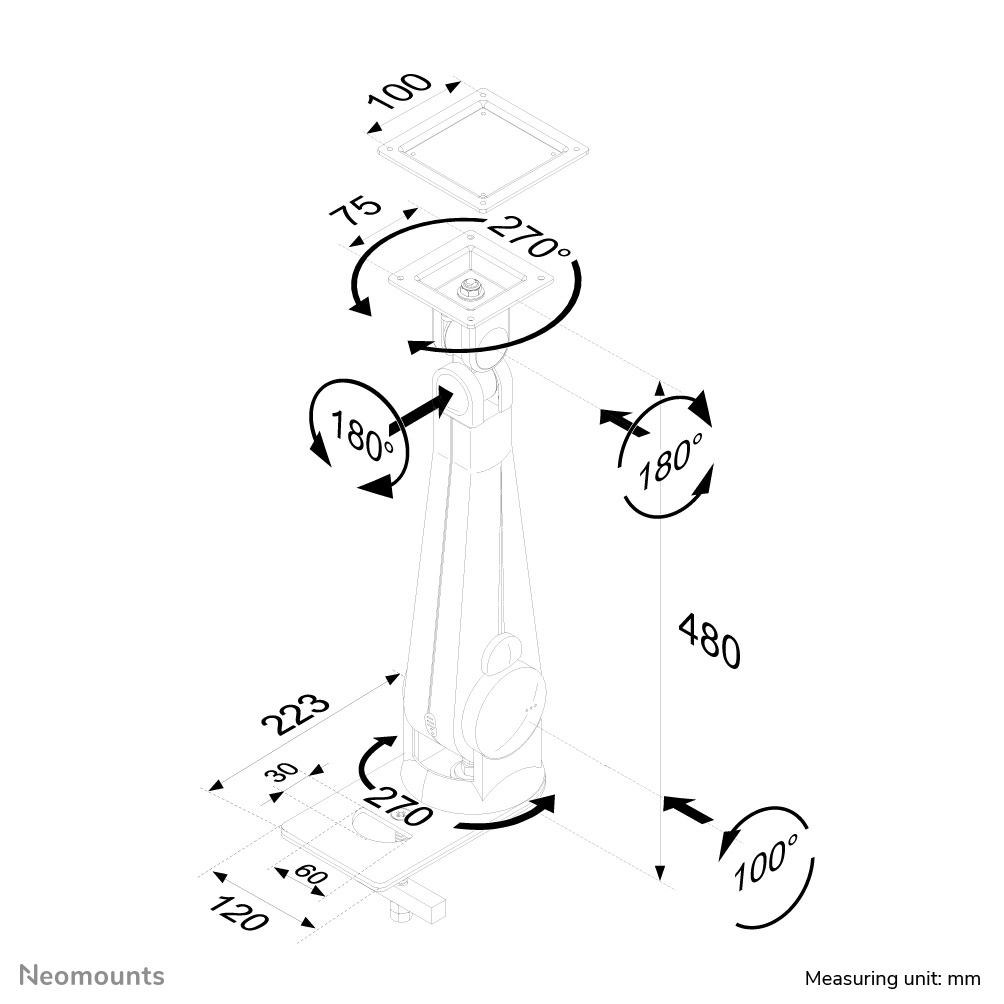

Height adjustment range	0 - 450 mm
Depth adjustment range	150 - 480 mm
Tilt angle range	0 - 180 °
Swivelling	Y
Swivel angle	270 °
Angle of rotation	270 °
Rotating	Y
Tilt adjustment	Y
Design
Product colour	Black
Housing material	Aluminium
Weight & dimensions
Height	450 mm
Weight	5810 g
Package width	330 mm
Package depth	370 mm
Package height	340 mm
Package weight	5800 g
Package net weight	5810 g
Logistics data
Master (outer) case width	660 mm
Master (outer) case length	370 mm
Master (outer) case height	340 mm
Master (outer) case weight	12460 g
Quantity per master (outer) case	2 stuk(s)
Master (outer) case net weight	11620 g
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	44 stuk(s)
Other features
Country of origin	Taiwan
