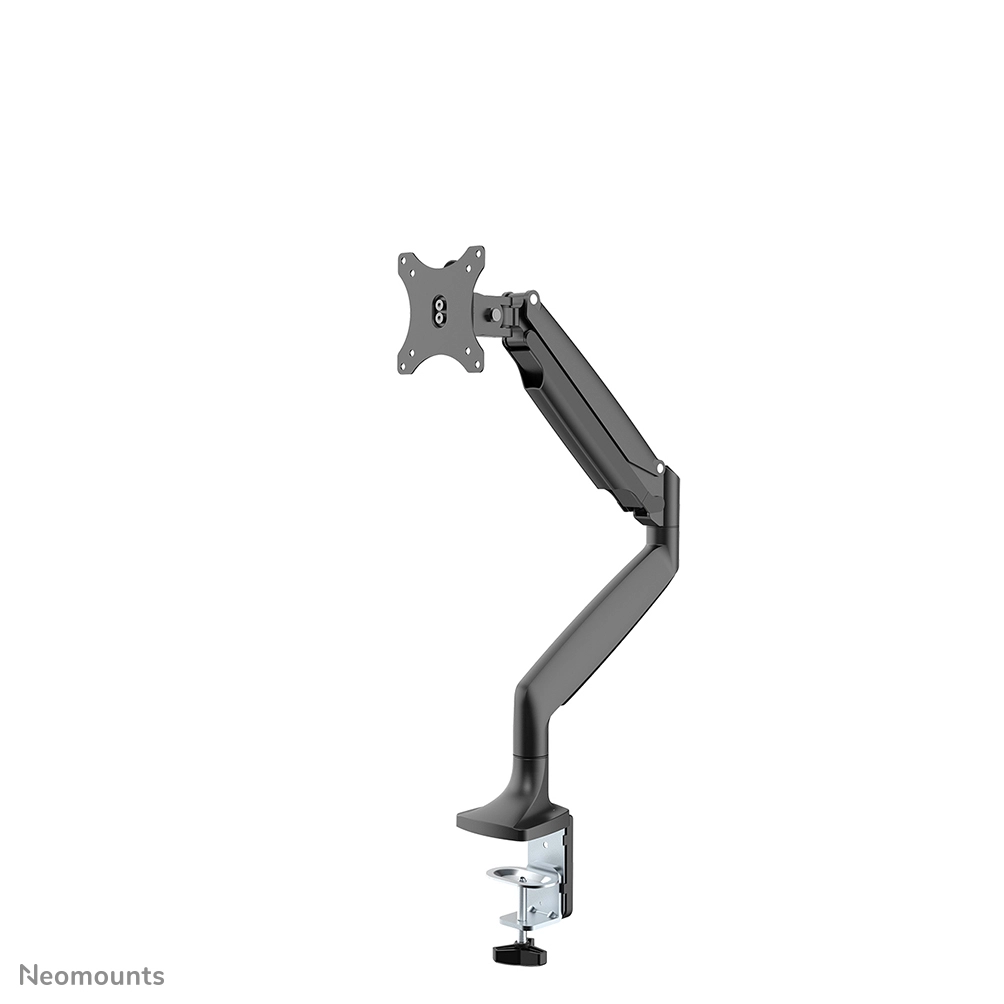

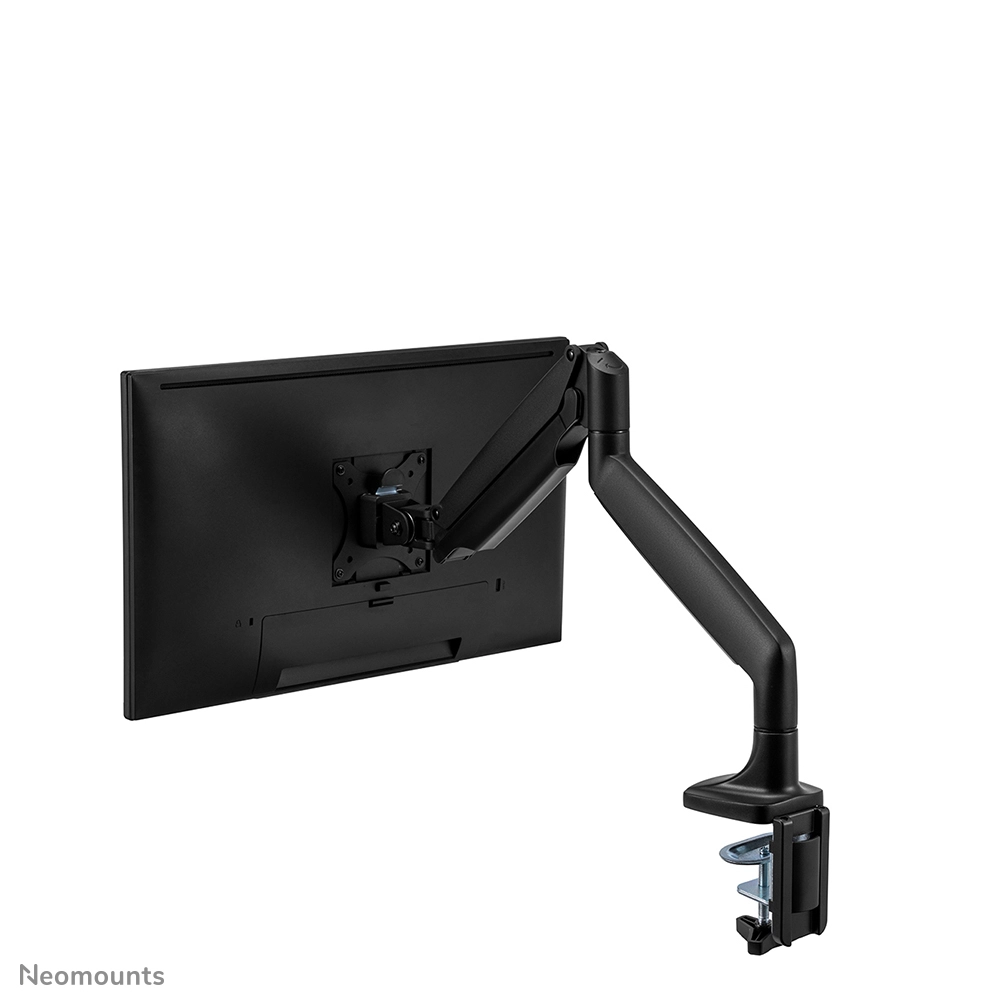

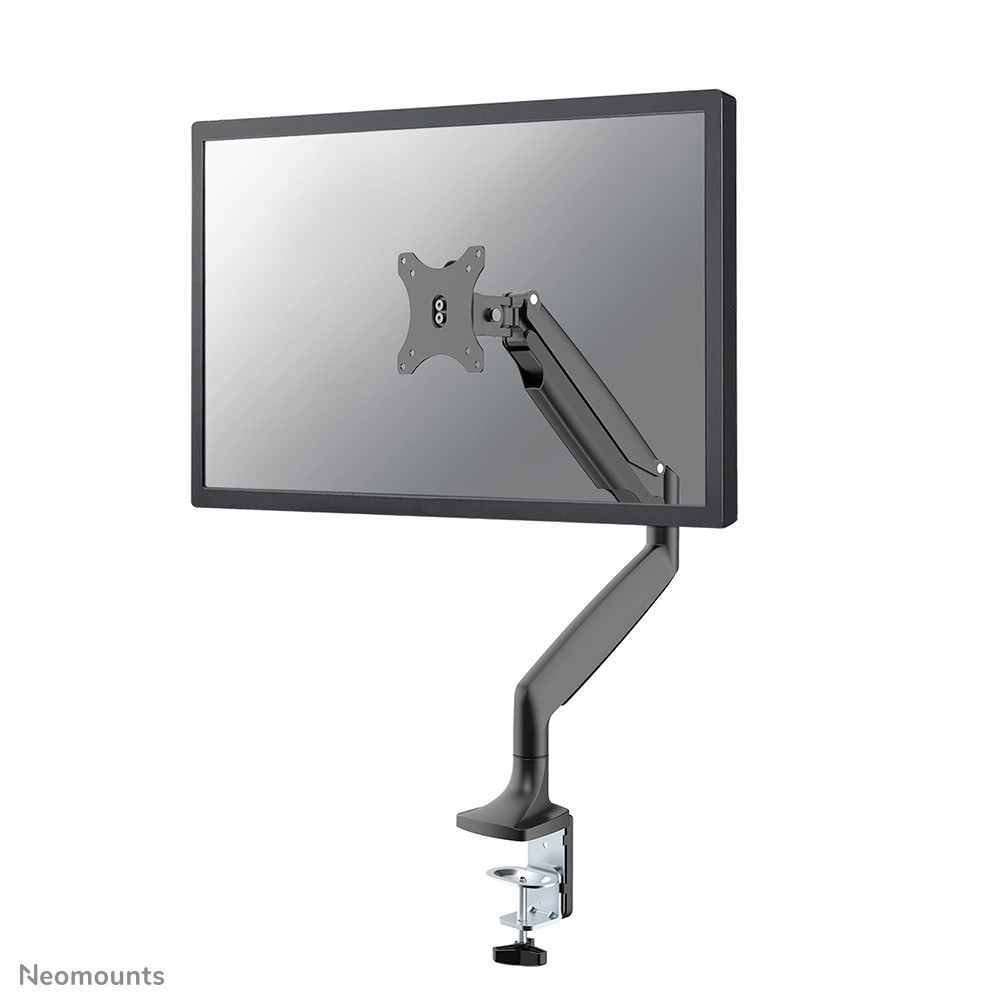

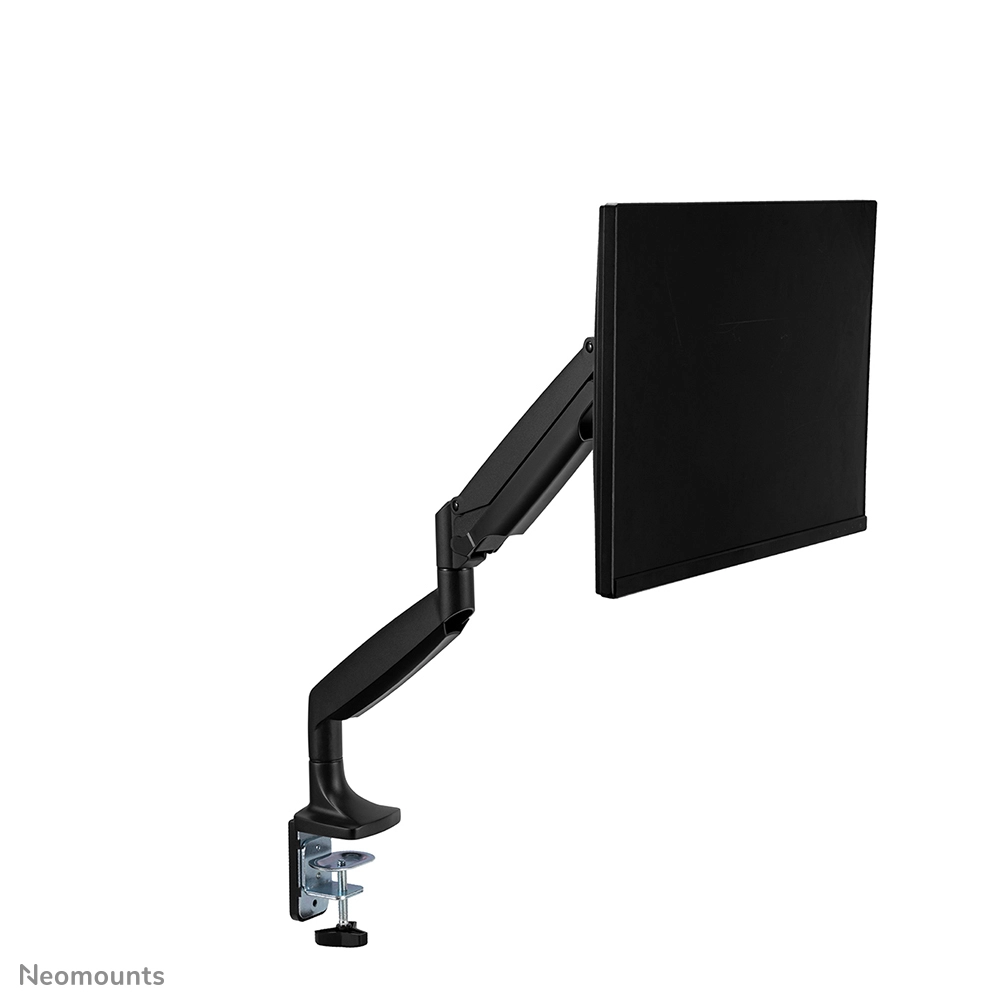

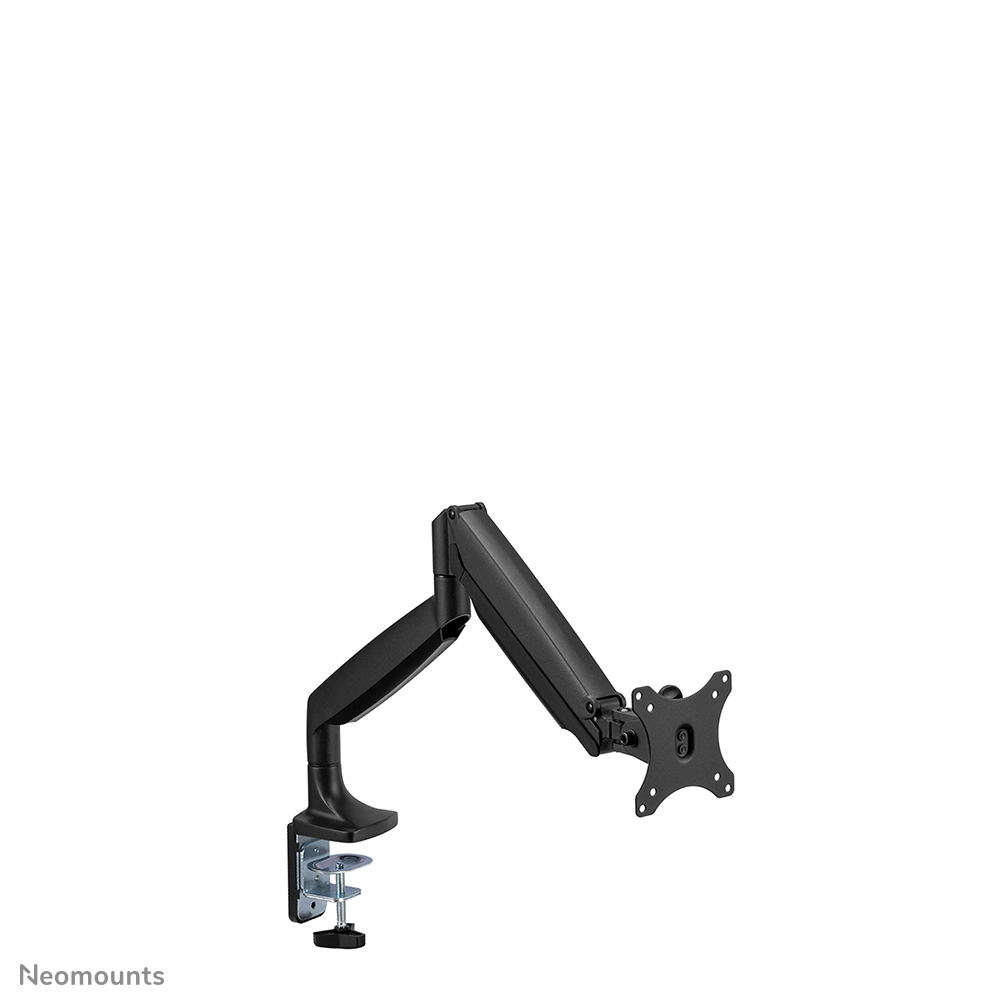

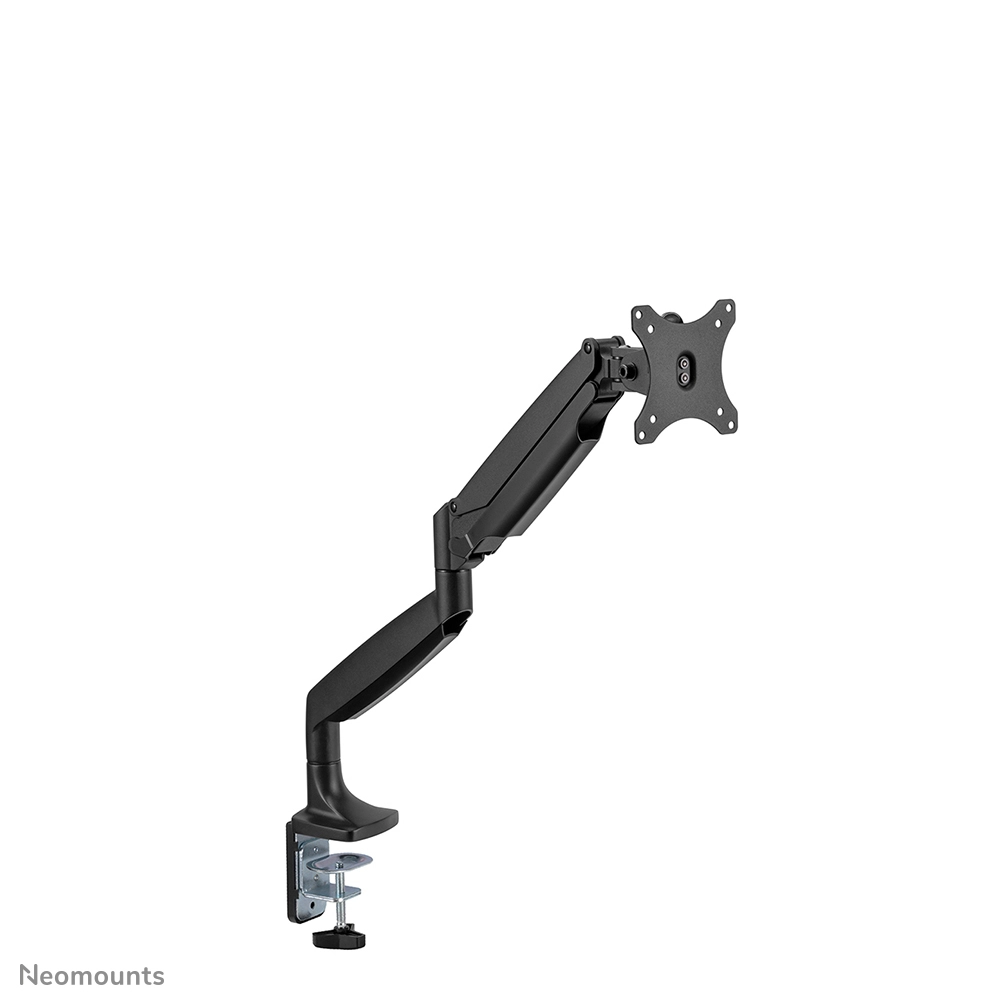

The Neomounts Select desk mount, model NM-D750BLACK is a tilt-, swivel and rotatable desk mount for flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

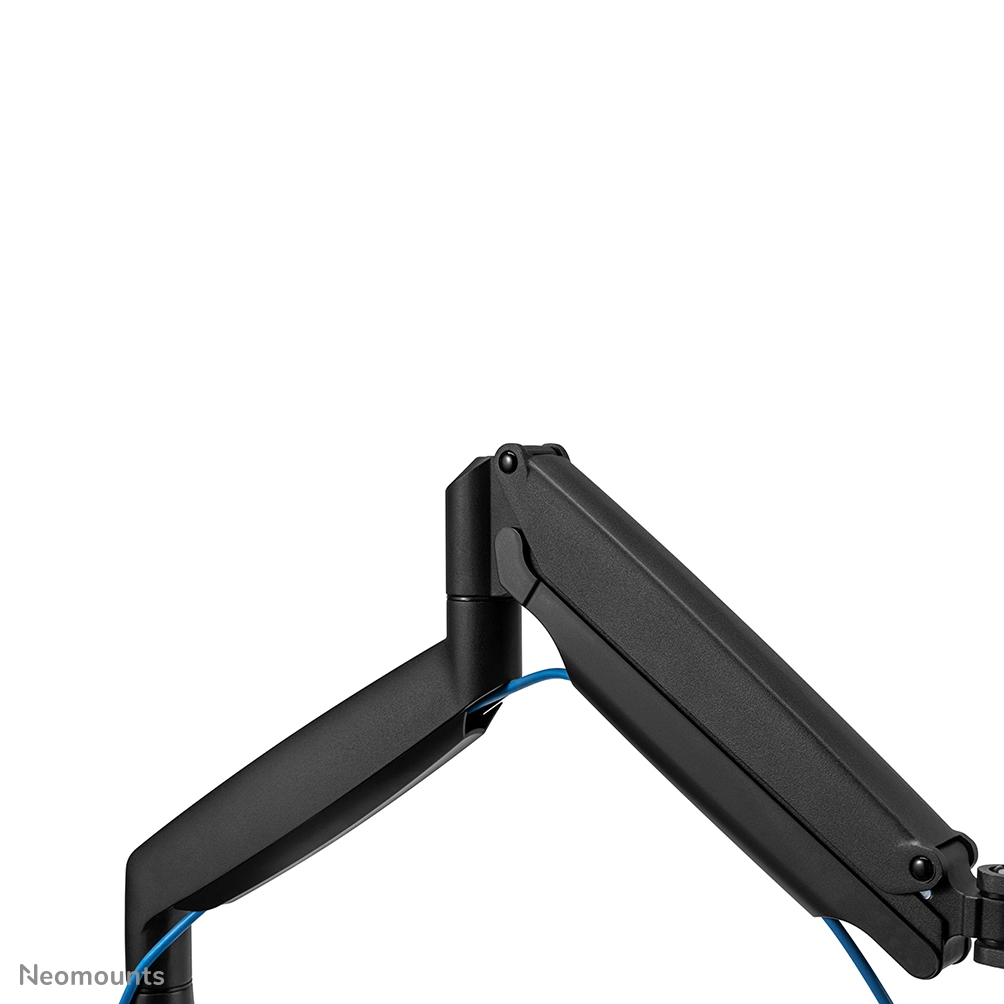

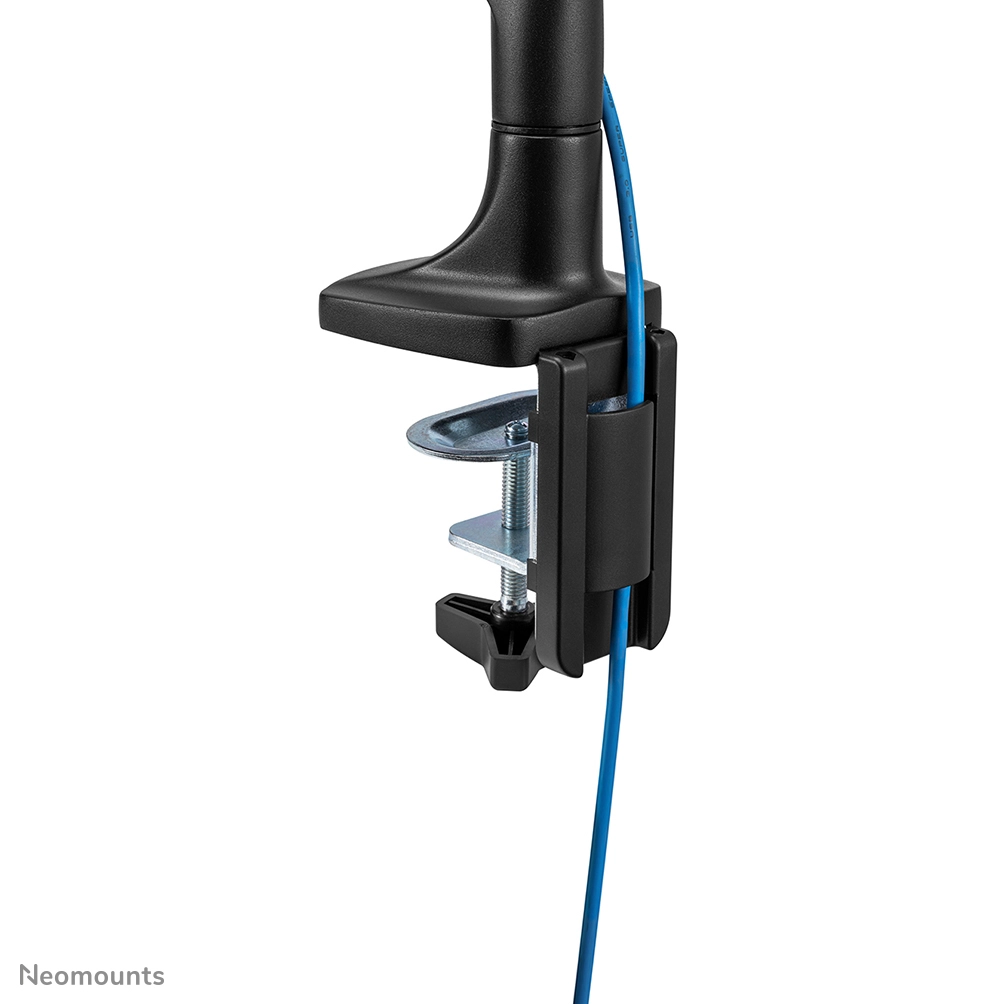

Neomounts Selects' unique tilt (180°), rotate (180°) and swivel (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily height adjustable from 17 to 51 centimetres using a gas spring. Depth adjustable from 0 to 61 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

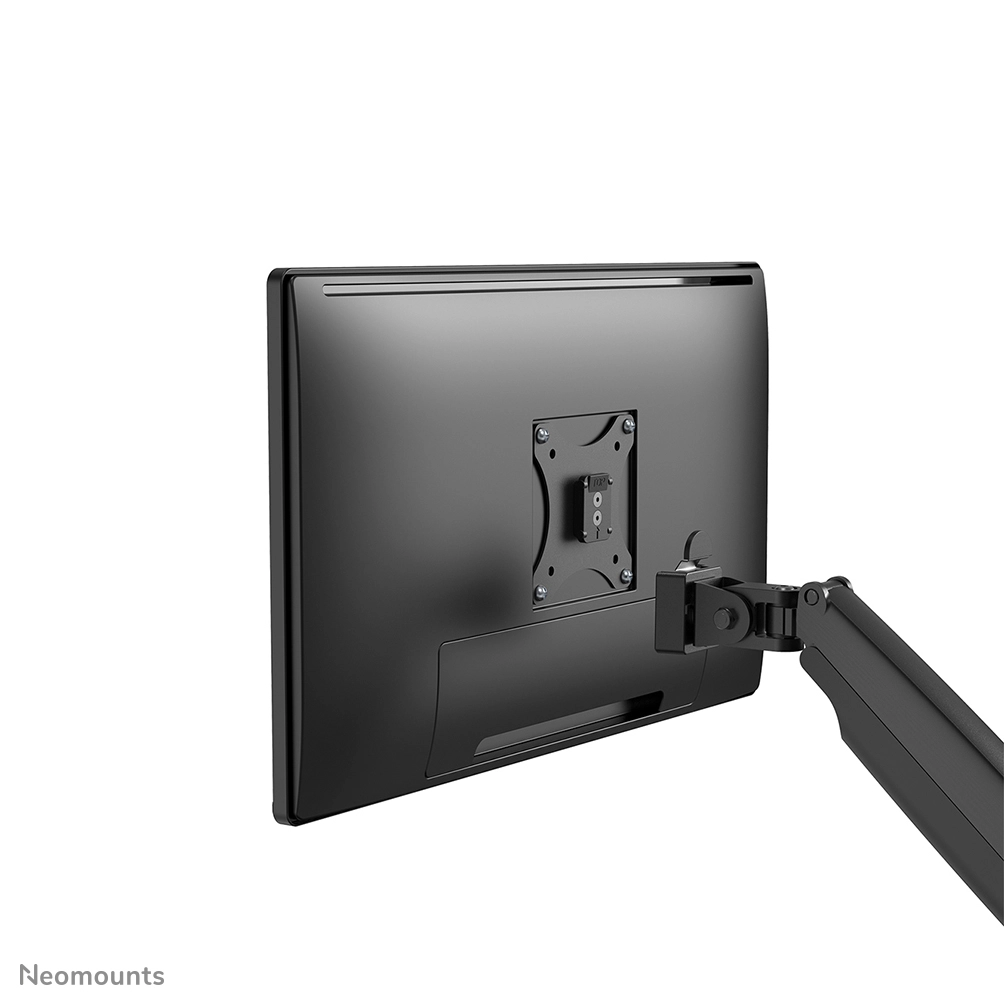

Neomounts Select NM-D750BLACK has three pivot points and is suitable for screens up to 32" (82 cm). The weight capacity of this product is 9 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts Select VESA adapter plates.

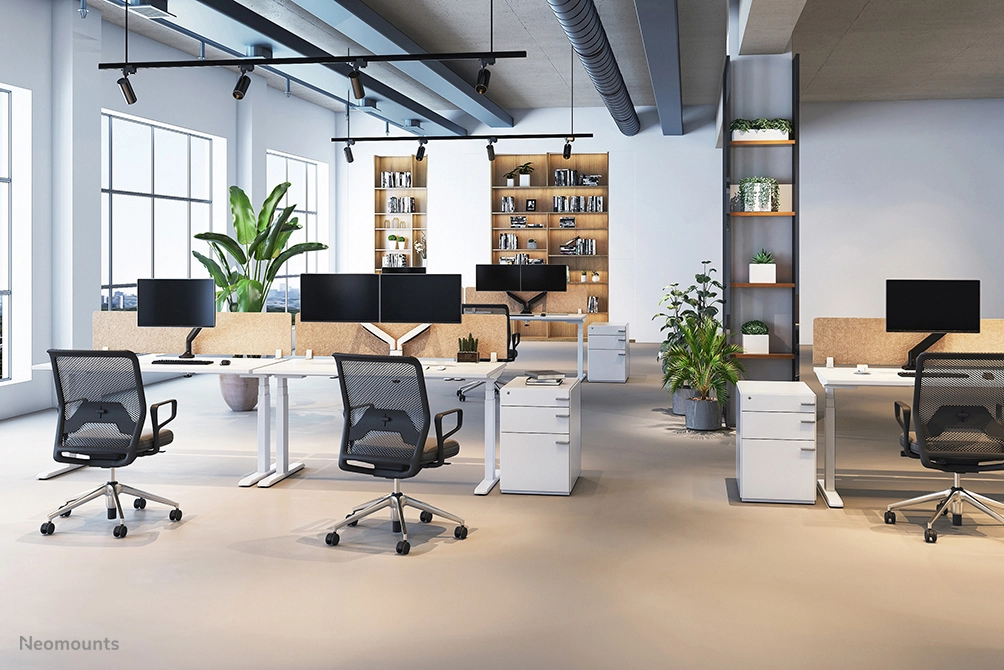

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specification

Product
Product id	577079
Brand	Neomounts
Partnr	NM-D750BLACK
EAN/UPC code	8717371446017
Warranty (months)	5 year
Mounting
Maximum weight capacity	9 kg
Minimum screen size compatibility	10 "
Maximum screen size	32
Mounting type	Desk

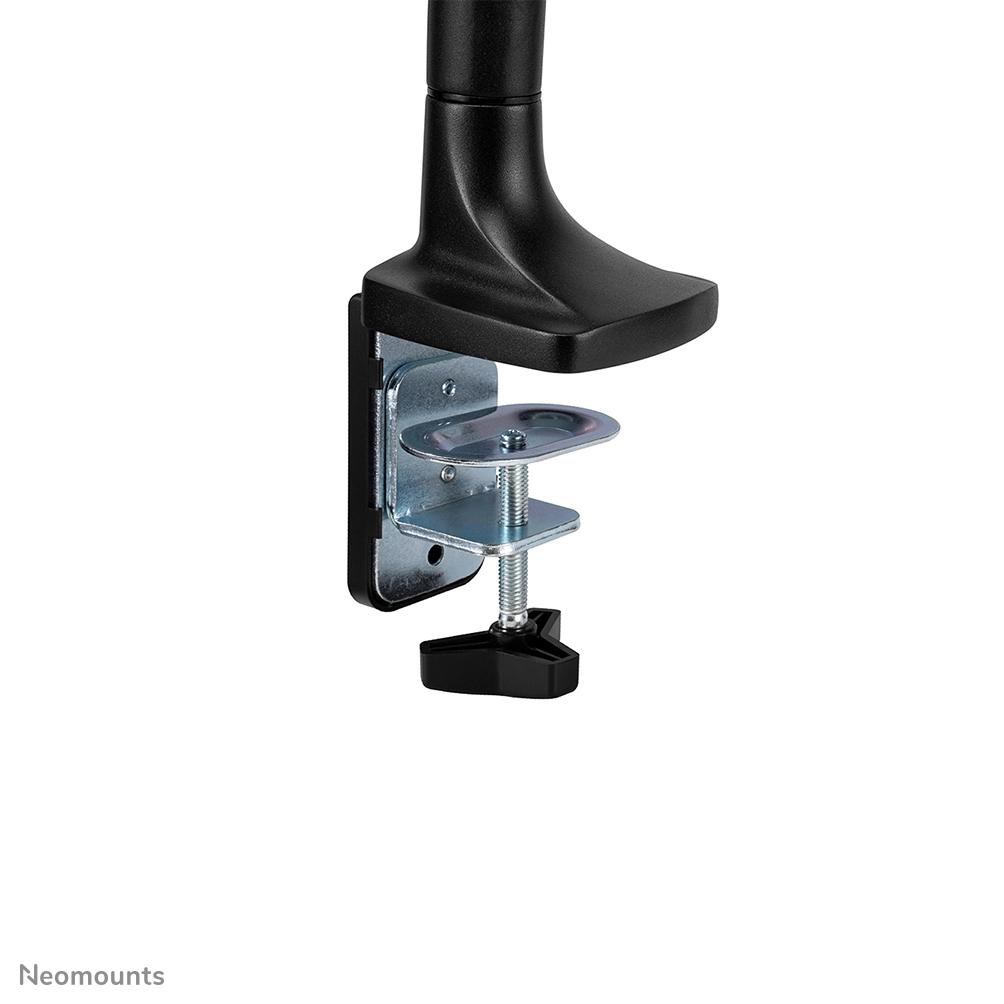

Mounting	Clamp/Bolt-through
Maximum weight capacity (per curved/ultra-wide display)	9 kg
Suitable for TV	Y
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	75 x 75, 100 x 100 mm
Number of displays supported	1
Desk thickness (min)	10 mm
Desk thickness (max)	85 mm
Distance to the wall (min)	122 mm
Distance to the wall (max)	647 mm
Ergonomics
Height adjustment	Y
Height adjustment type	Gas spring
Height adjustment range	170 - 510 mm
Depth adjustment range	0 - 610 mm
Tilt angle range	0 - 180 °
Swivelling	Y
Swivel angle	360 °
Swivel angle range	-90 - 90 °
Angle of rotation	180 °
Rotating	Y
Tilt adjustment	Y
Design
Product colour	Black
Housing material	Steel
Weight & dimensions
Depth	615 mm
Height	505 mm
Weight	3400 g
Package width	316 mm
Package depth	112 mm
Package height	485 mm
Package weight	2500 g
Logistics data
Master (outer) case width	395 mm
Master (outer) case length	125 mm
Master (outer) case height	230 mm
Master (outer) case weight	2500 g
Quantity per master (outer) case	4 stuk(s)
Master (outer) case net weight	2500 g
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	56 stuk(s)
Other features
Width adjustment range	0 - 1050 mm
Minimum weight	1 kg
Country of origin	China
