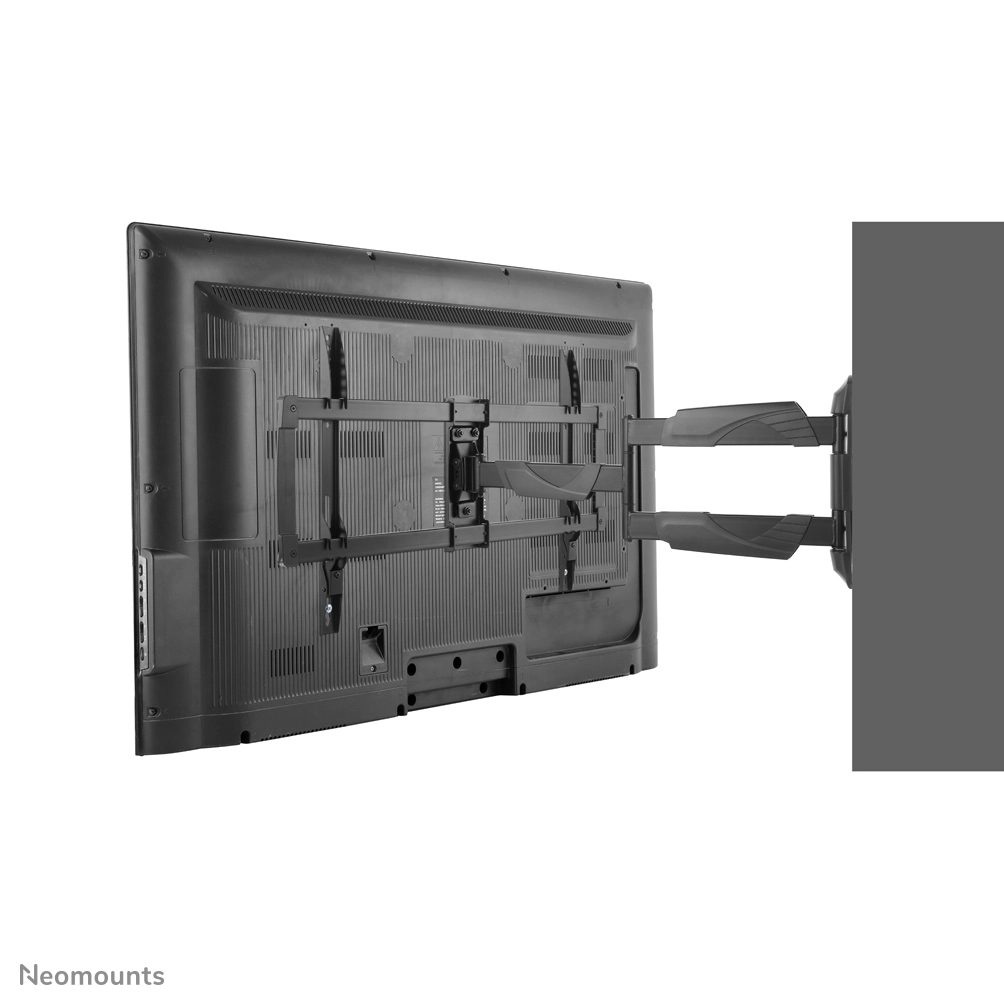

The Neomounts Select wall mount, model NM-W460BLACK is a full swing tilt- and swivel wall mount for flat screens up to 60". This mount is a great choice when you want the ultimate viewing flexibility with your flat screen TV. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished.

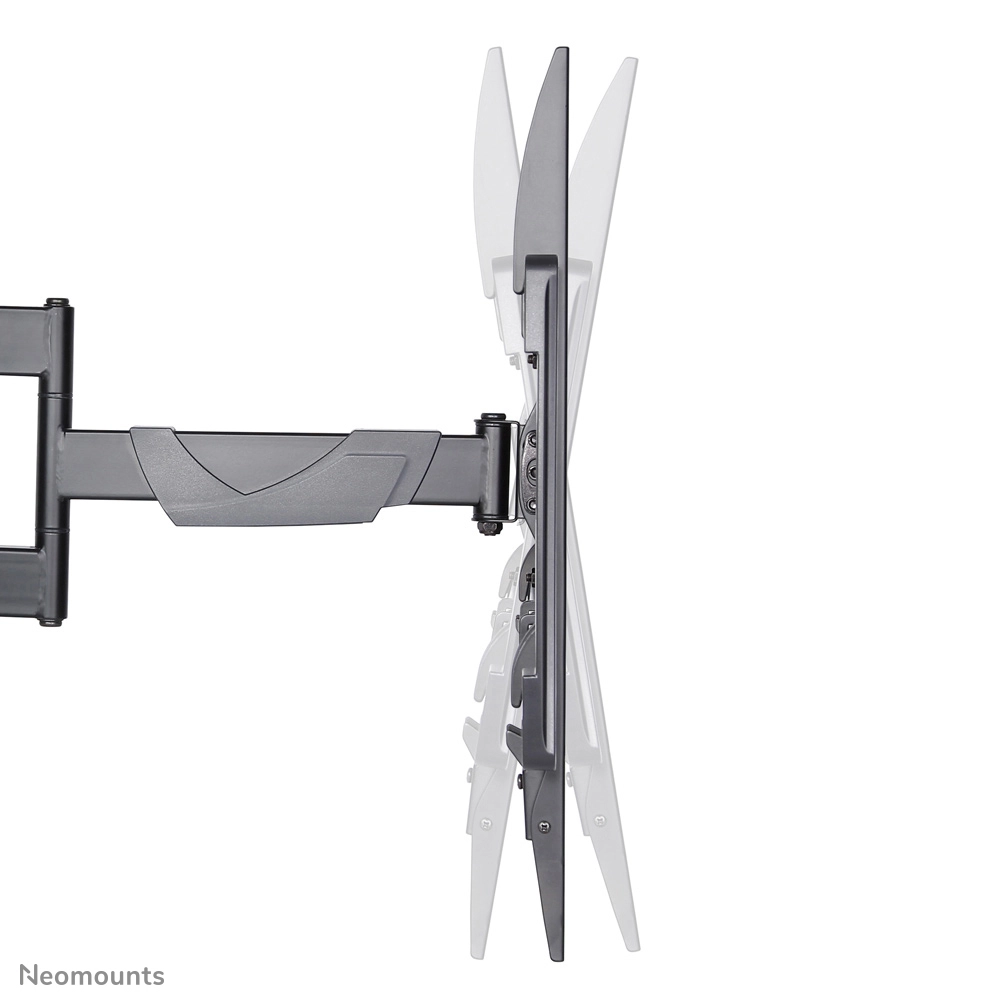

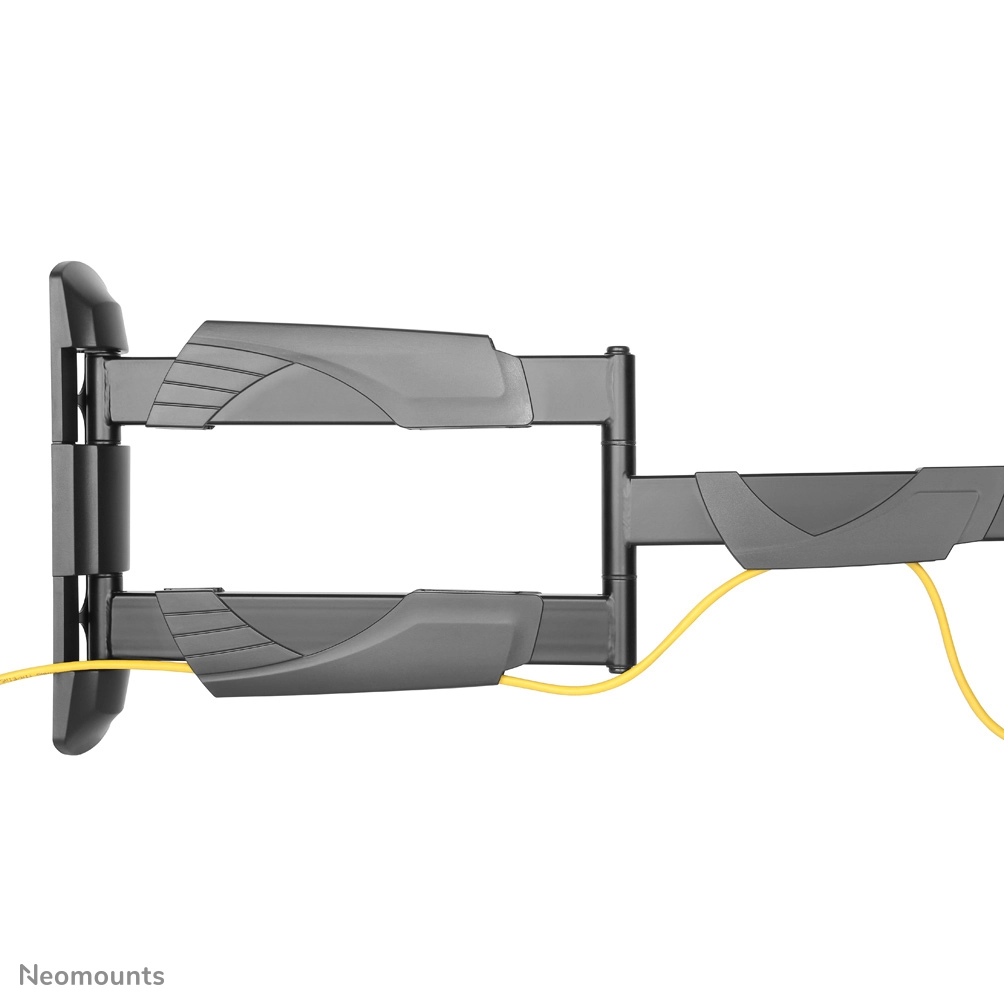

Neomounts Selects' tilt (25°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 5 to 61 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep living room, bedroom or home cinema installation nice and tidy.

Neomounts Select NM-W460BLACK has three pivot points and is suitable for screens up to 60" (150 cm). The weight capacity of this product is 30 kg. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm. Different hole patterns can be covered using Neomounts Select VESA adapter plates.

Create a clean design ambiance for your flat screen TV in a living room, bedroom or public environment.

All installation material is included with the product.

Specification

Product
Product id	462098
Brand	Neomounts
Partnr	NM-W460BLACK
EAN/UPC code	8717371444549
Warranty (months)	5 year
Mounting
Maximum weight capacity	30 kg
Mounting type	Wall
Minimum screen size compatibility	32 "
Maximum screen size	60
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	200 x 200, 200 x 300, 200 x 400, 300 x 100, 300 x 200, 300 x 300, 350 x 350, 400 x 200, 400 x 300, 400 x 400, 400 x 500, 400 x 600, 440 x 400, 500 x 400, 600 x 200, 600 x 300, 600 x 400 mm
Ergonomics
Tilt adjustment	Y
Rotating	Y
Swivelling	Y
Swivel angle	180 °
Swivel angle range	0 - 180 °
Tilt angle range	0 - 25 °
Type	Full motion
Technical details
Product colour	Black
Angle of rotation	6 °
Number of displays supported	1
Distance to the wall (max)	610 mm
Package net weight	4900 g
Distance to the wall (min)	50 mm
Design
Housing material	Steel
Weight & dimensions
Weight	4850 g
Packaging data
Package width	376 mm
Package depth	82 mm
Package height	800 mm
Package weight	4900 g
Other features
Country of origin	China
Logistics data
Master (outer) case width	820 mm
Master (outer) case length	400 mm
Master (outer) case height	280 mm
Master (outer) case weight	18600 g
Master (outer) case net weight	14800 g
Quantity per master (outer) case	3 stuk(s)
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	54 stuk(s)
