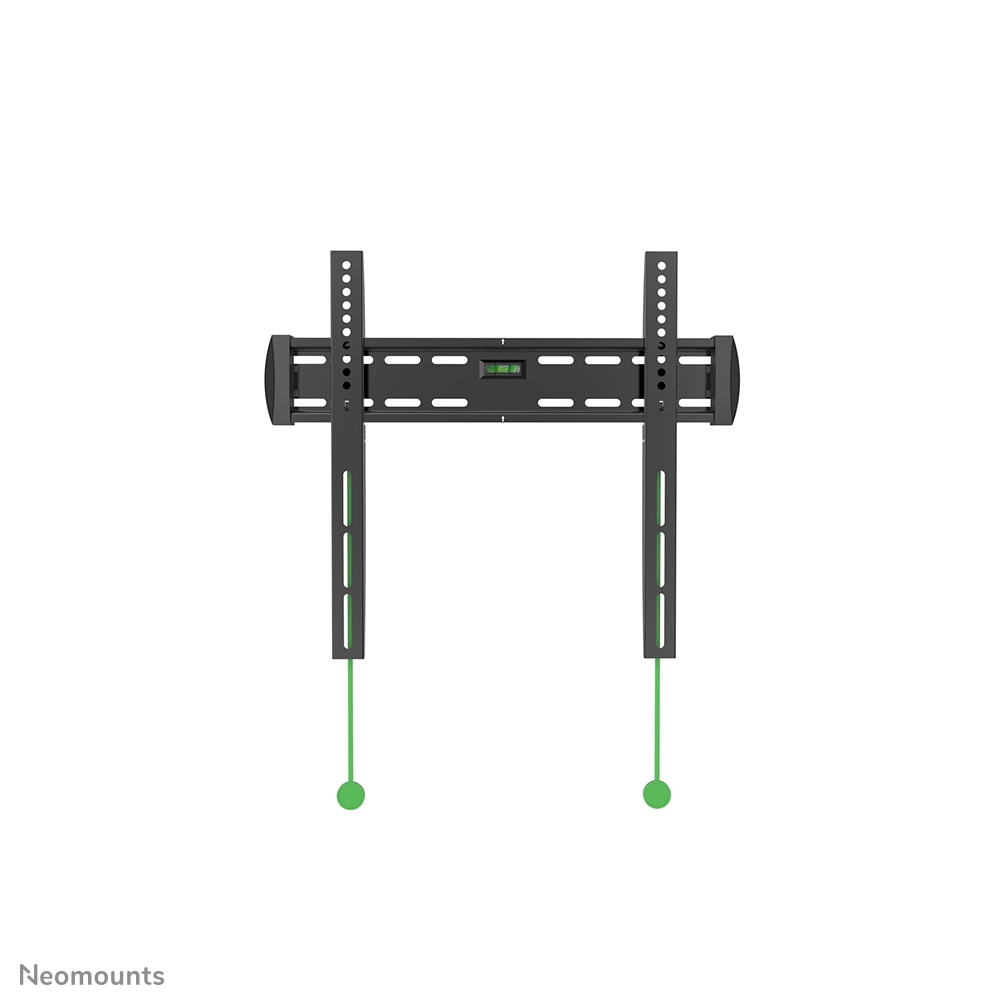

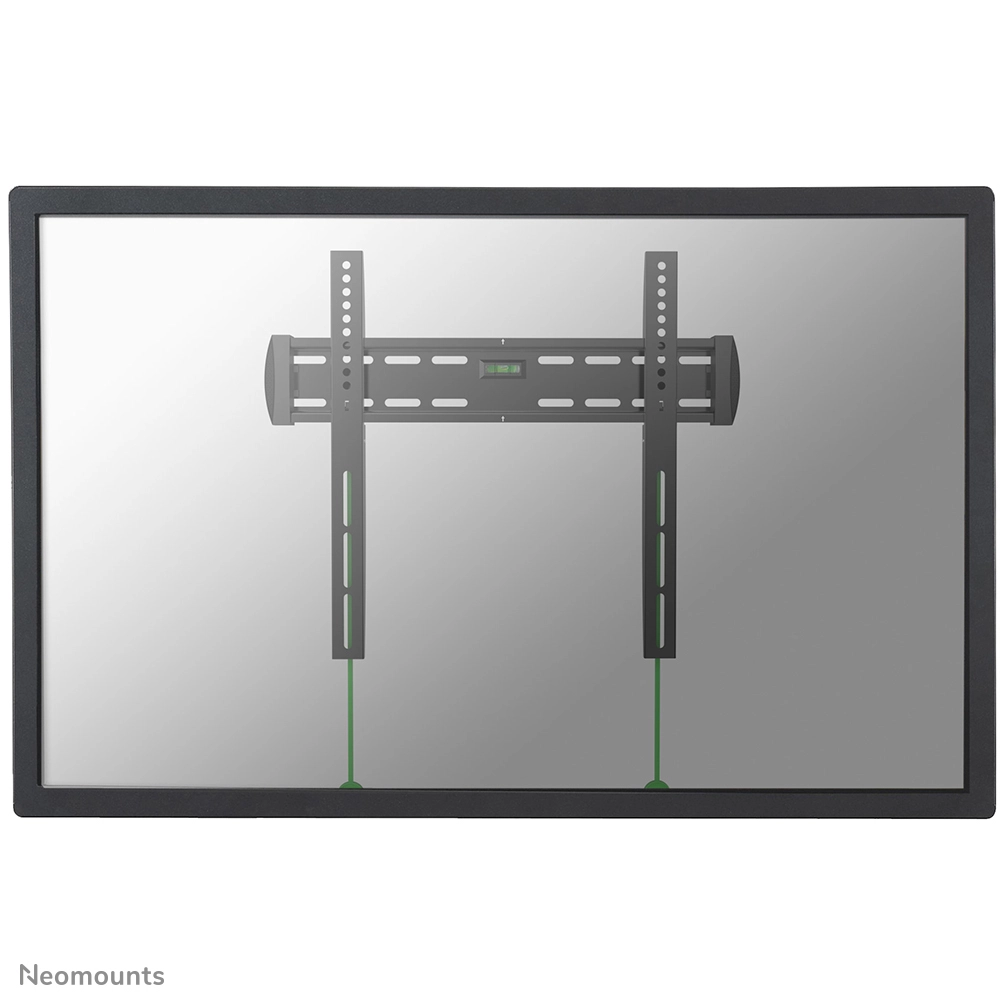

The NewStar wall mount, model NM-W340BLACK is a fixed wall mount for flat screens up to 52”. This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Depth of this mount is 2, 9 centimetres.
NewStar NM-W340BLACK is suitable for screens up to 52" (130 cm). The weight capacity of this product is 50 kg. The wall mount is suitable for screens that meet VESA hole patterns between 100x100 and 400x400 mm.
Create a clean design ambiance for your flat screen TV in a living room, bedroom or public environment.
All installation material is included with the product.

Specification

Product
Product id	462092
Brand	Neomounts
Partnr	NM-W340BLACK
EAN/UPC code	8717371444631
Warranty (months)	5 year
Technical details
Product colour	Black
Mounting type	Wall
Number of displays supported	1
Country of origin	China

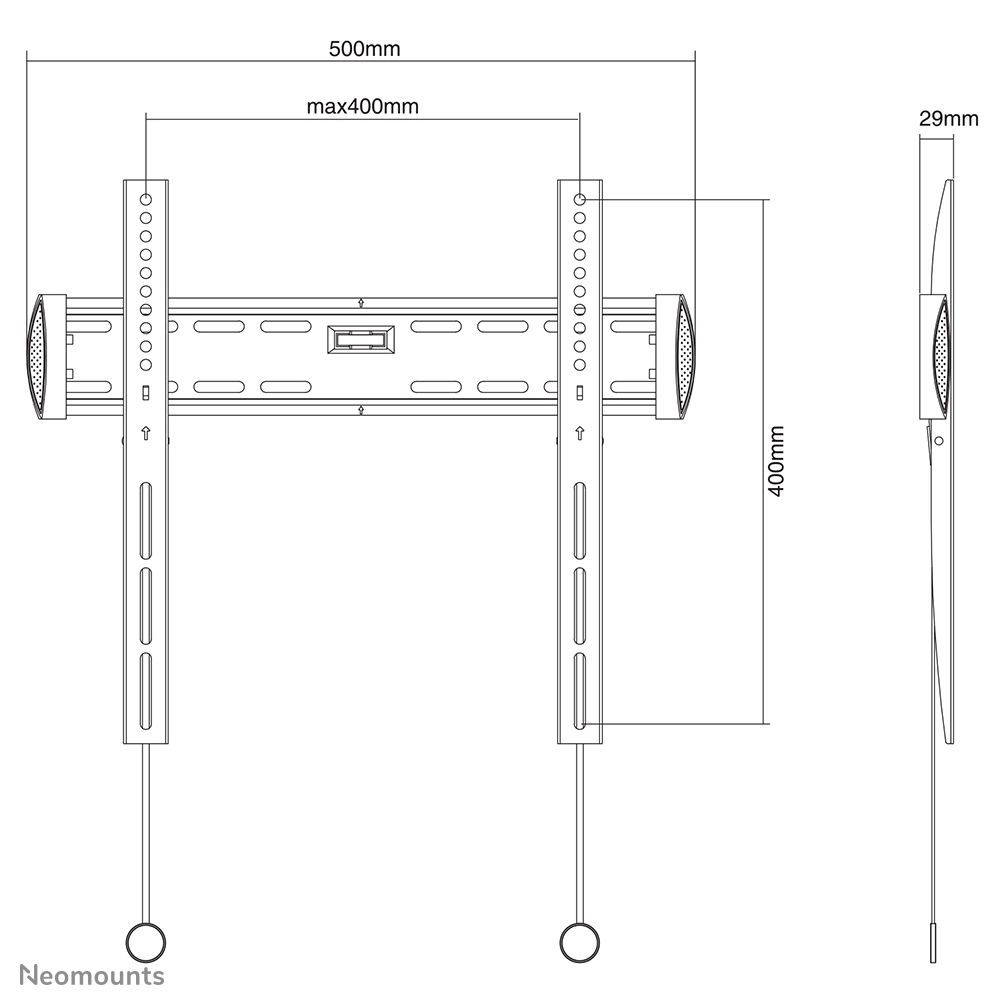

Minimum VESA mount	100 x 100 mm
Maximum VESA mount	400 x 400 mm
Mounting hole pattern (WxD)	350 x 300 mm
Screen size compatibility	32 - 52 "
Maximum weight capacity	50 kg
Panel mounting interface	100 x 100, 400 x 400 mm
Package net weight	1700 g
Ergonomics
Distance to the wall (min)	29 mm
Distance to the wall (max)	29 mm
Weight & dimensions
Weight	1570 g
Packaging data
Package width	100 mm
Package depth	530 mm
Package height	40 mm
Package weight	1700 g
Logistics data
Master (outer) case width	220 mm
Master (outer) case length	530 mm
Master (outer) case height	200 mm
Master (outer) case weight	16700 g
Quantity per master (outer) case	10 stuk(s)
Master (outer) case net weight	15000 g
Harmonized System (HS) code	85299097
Quantity per EUR-pallet	280 stuk(s)
Type	Fixed
Housing material	Steel
Minimum screen size compatibility	32 "
Maximum screen size	55
