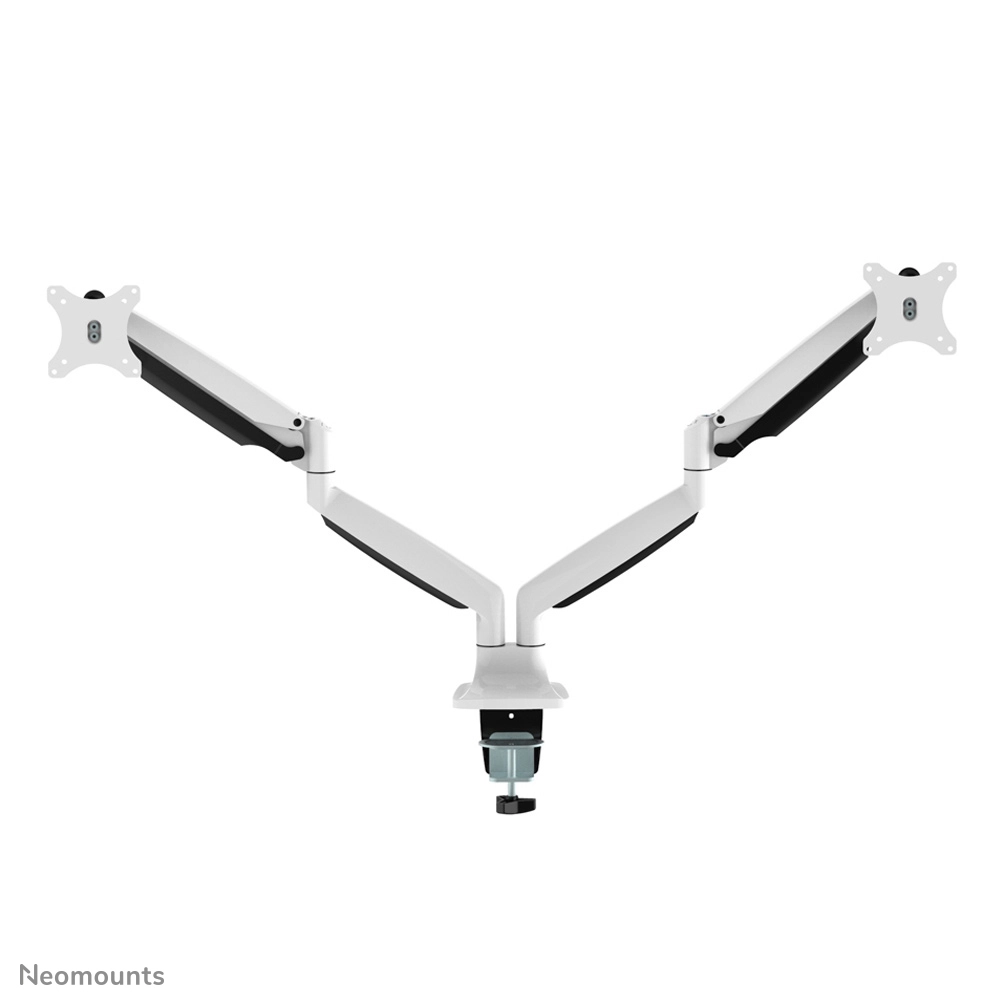

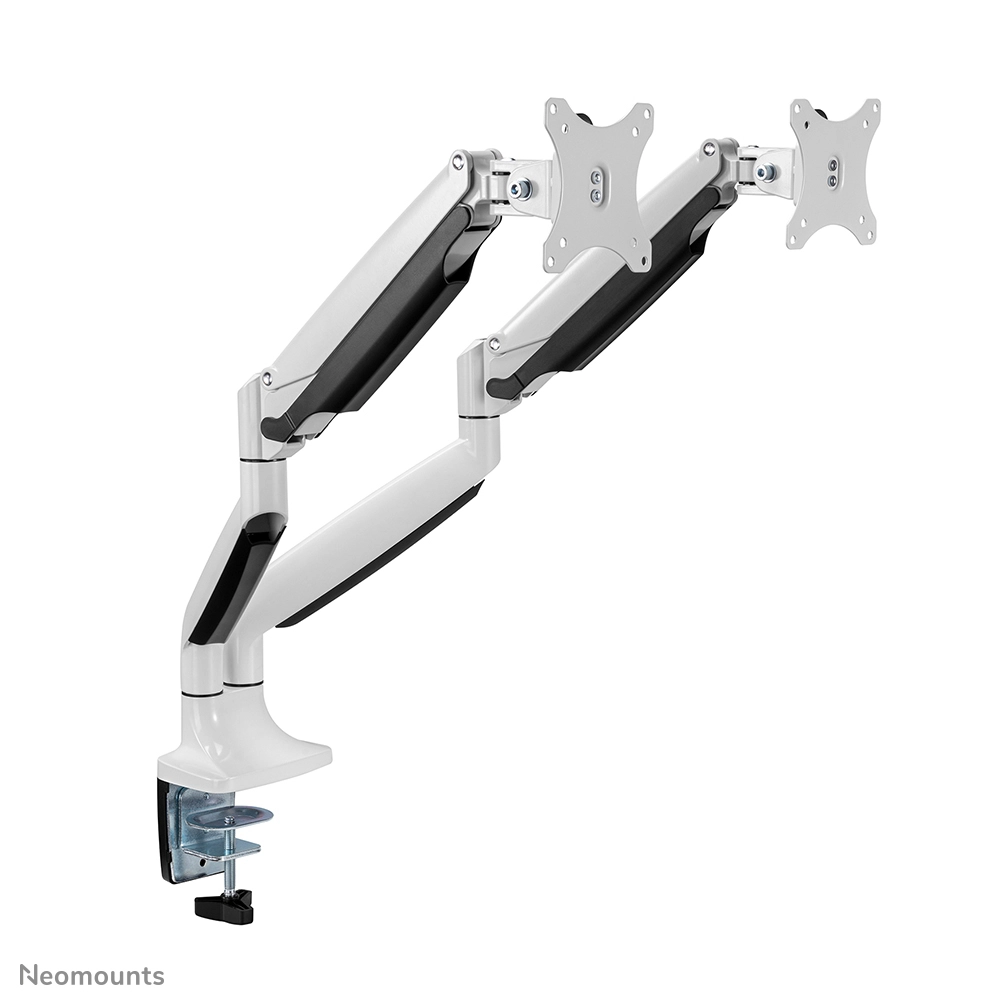

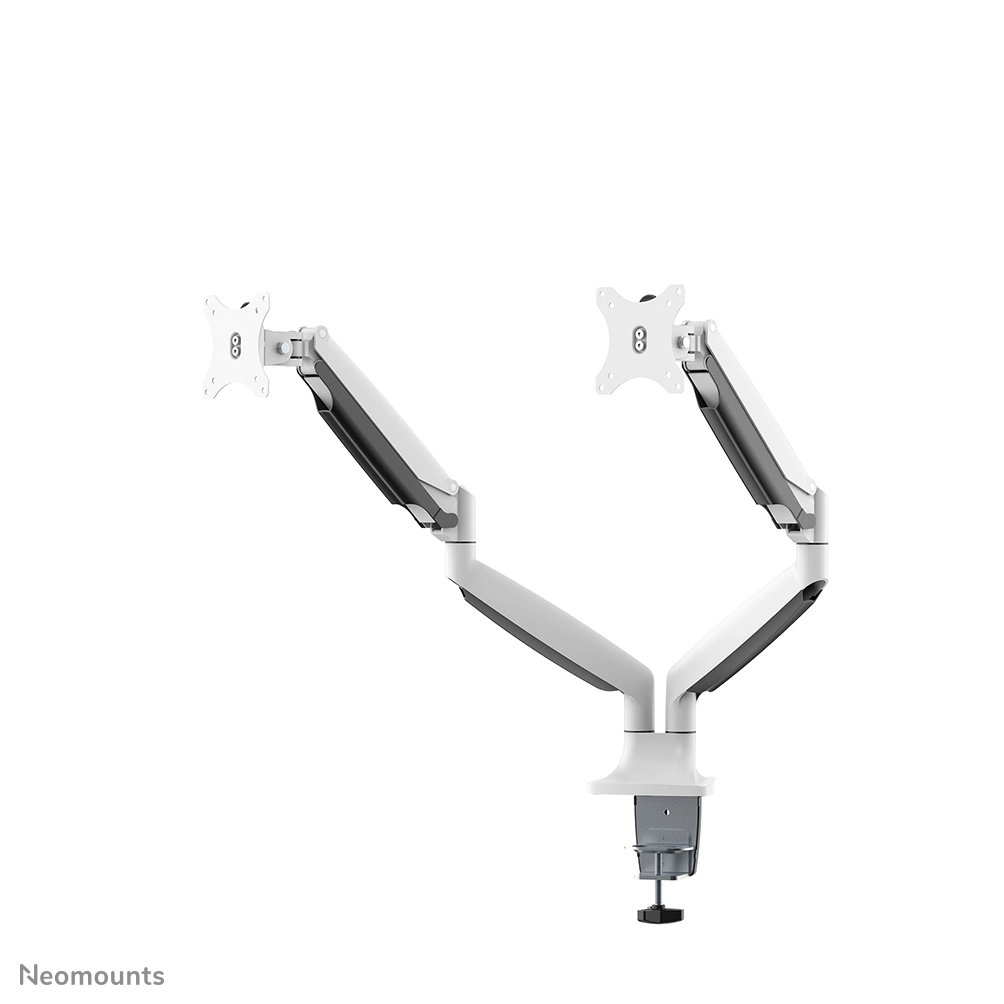

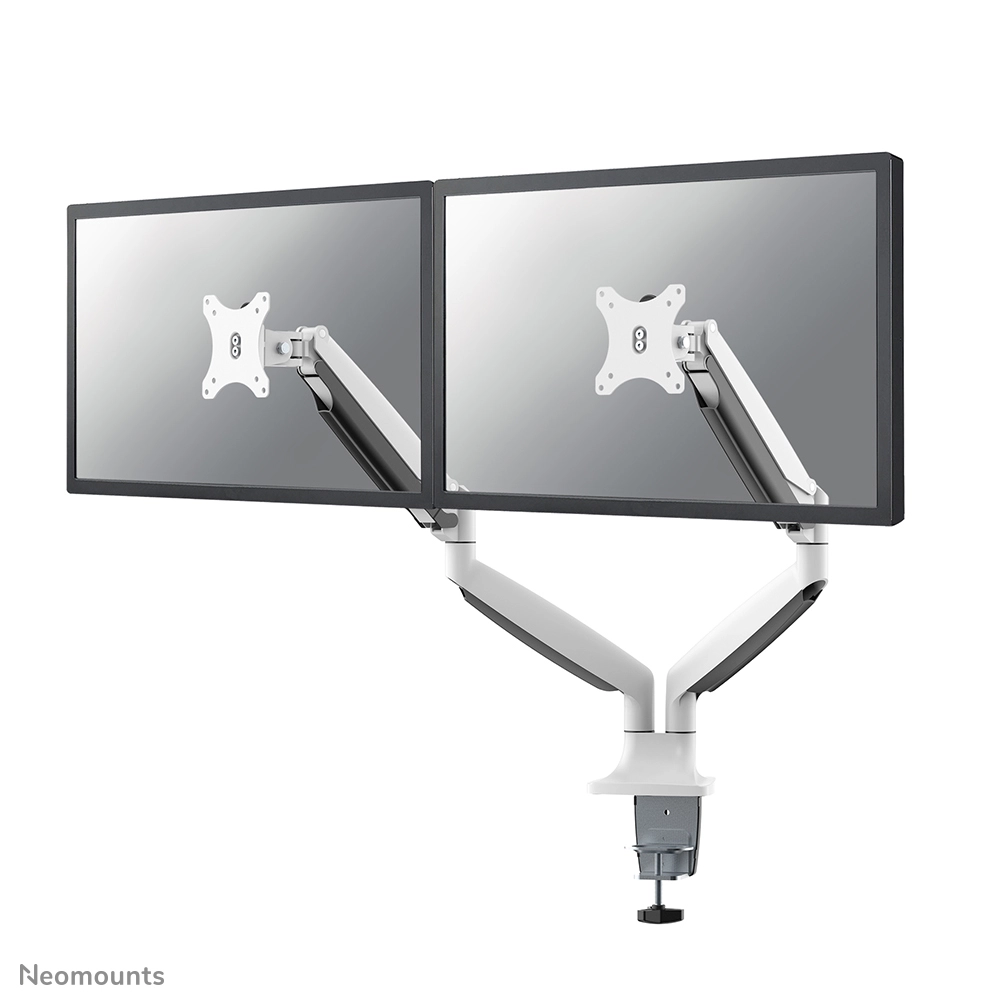

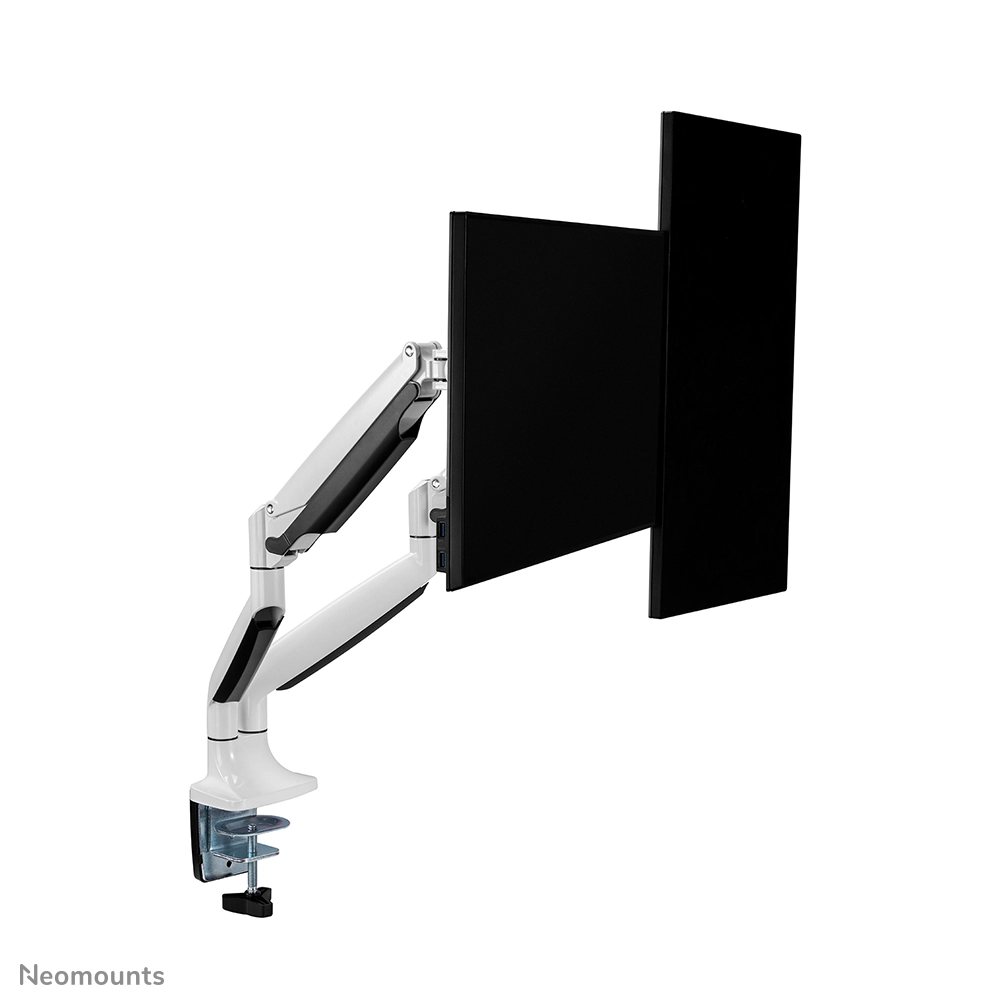

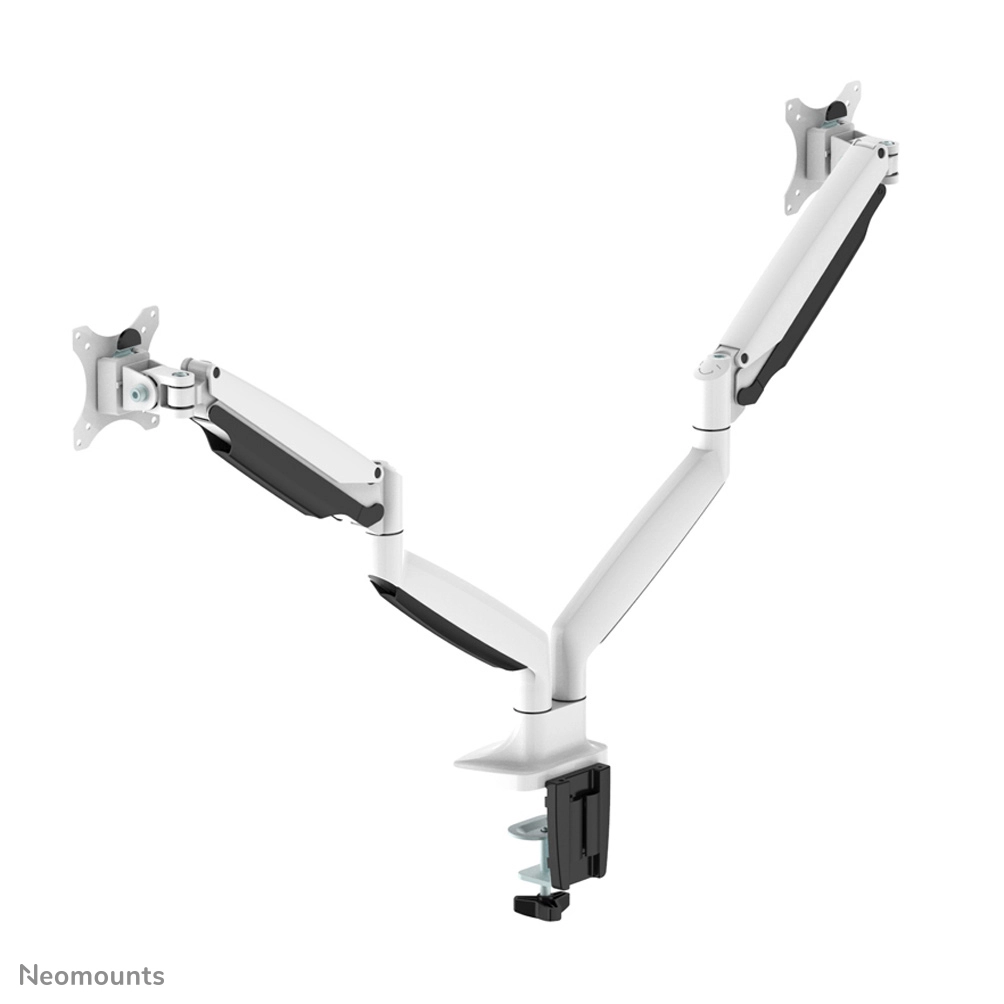

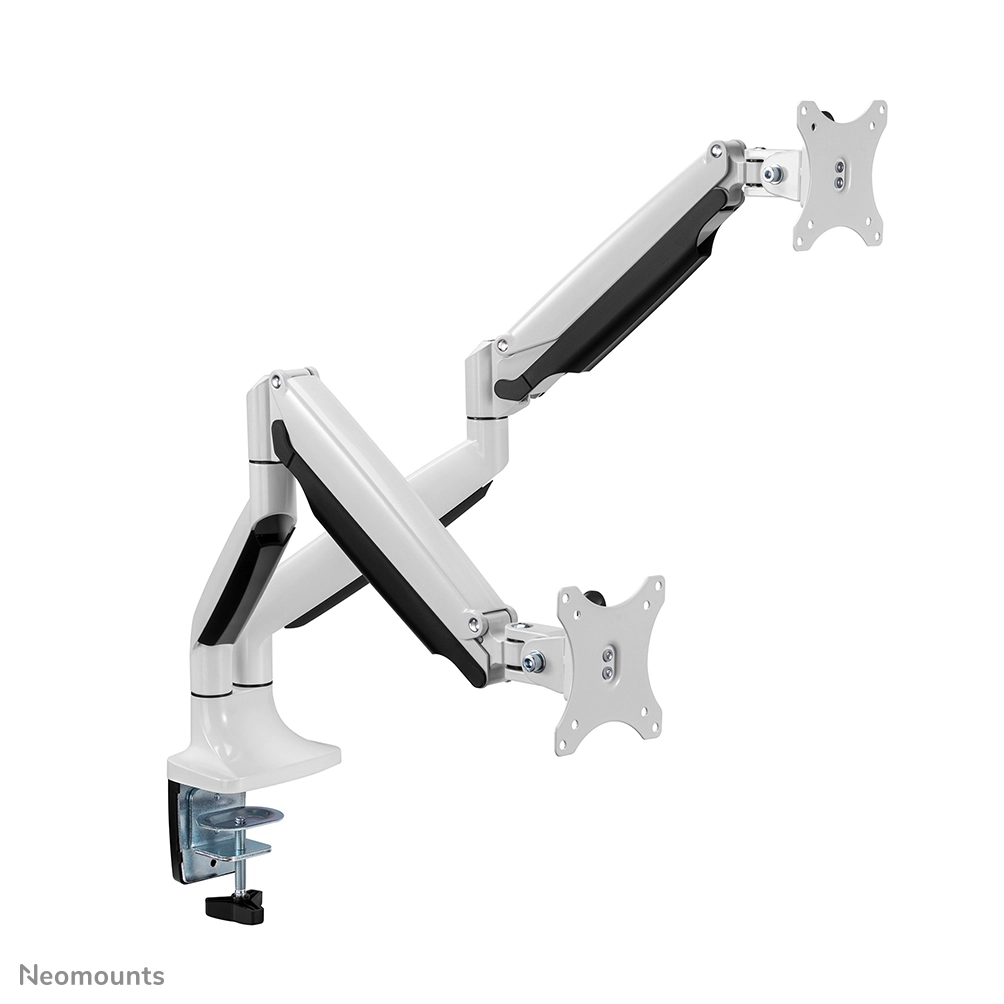

The Neomounts Select desk mount, model NM-D750DWHITE is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

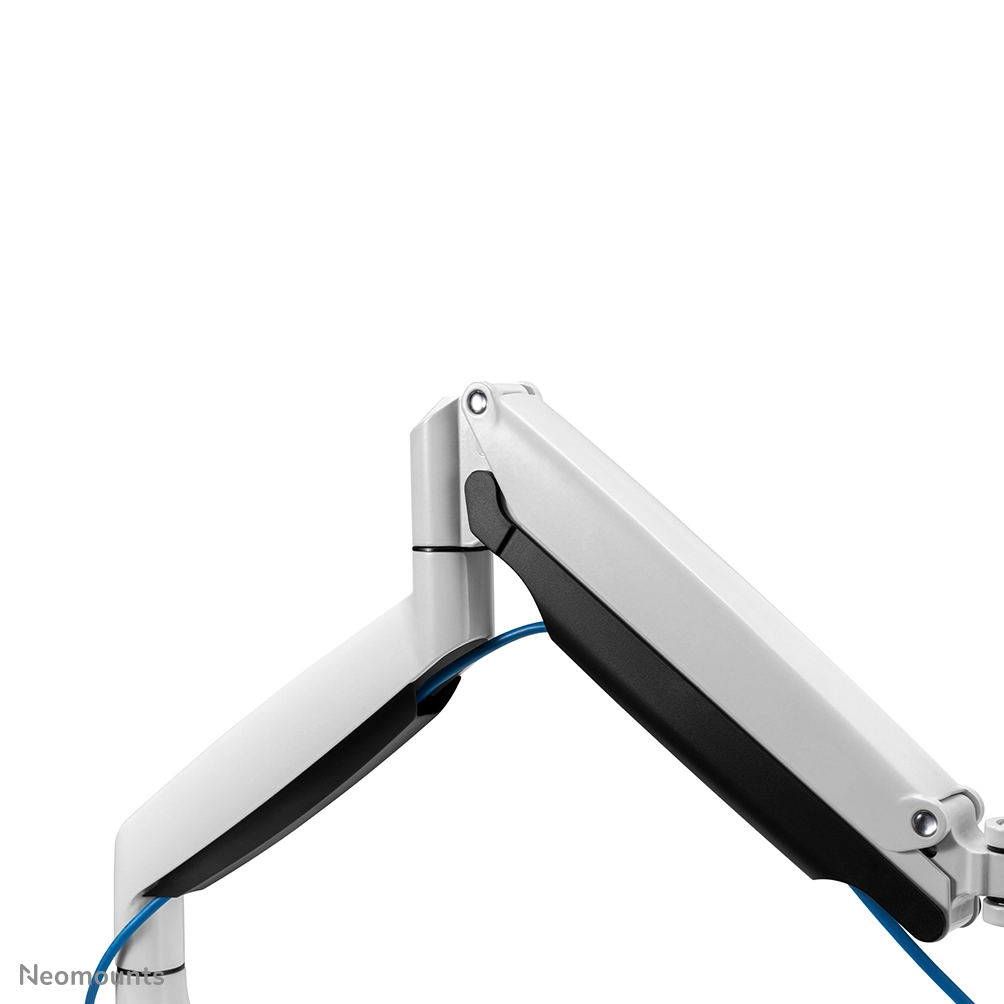

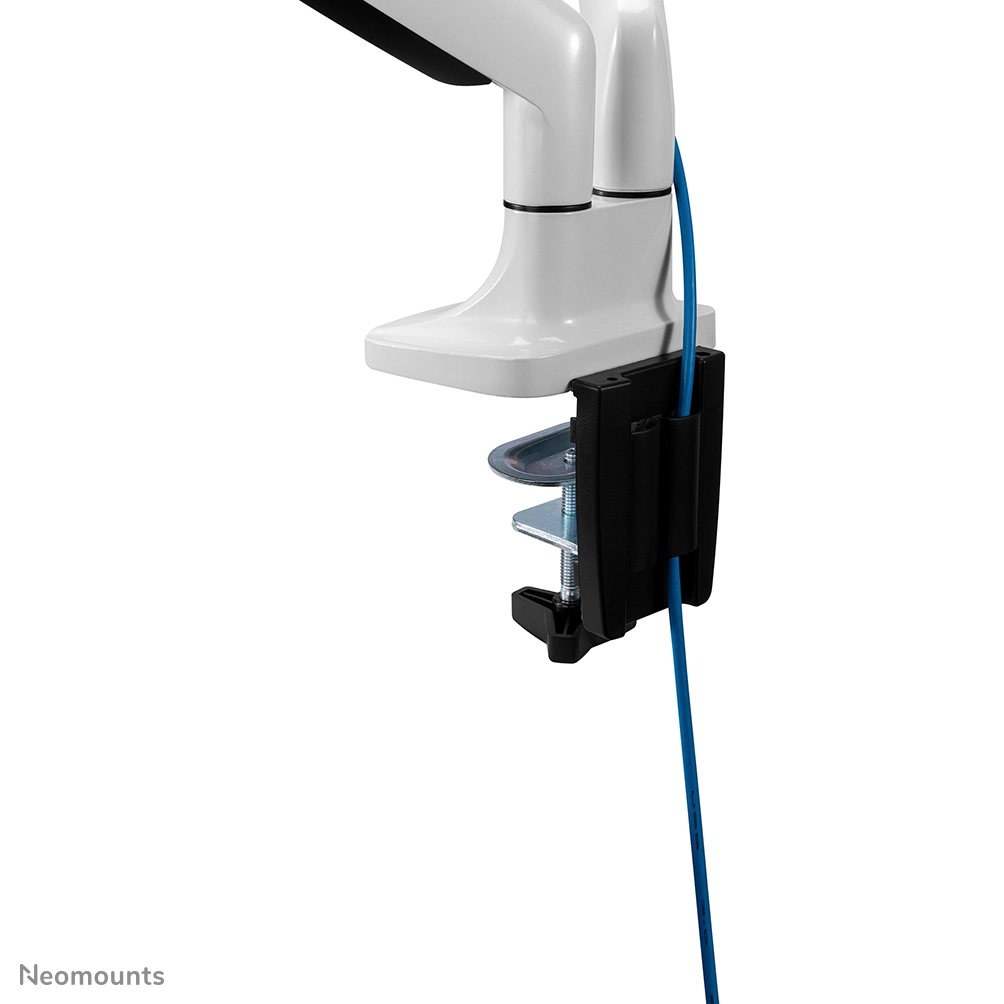

Neomounts Selects' unique tilt (180°), rotate (180°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable from 17 to 51 centimetres using a gas spring. Depth adjustable from 0 to 61 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

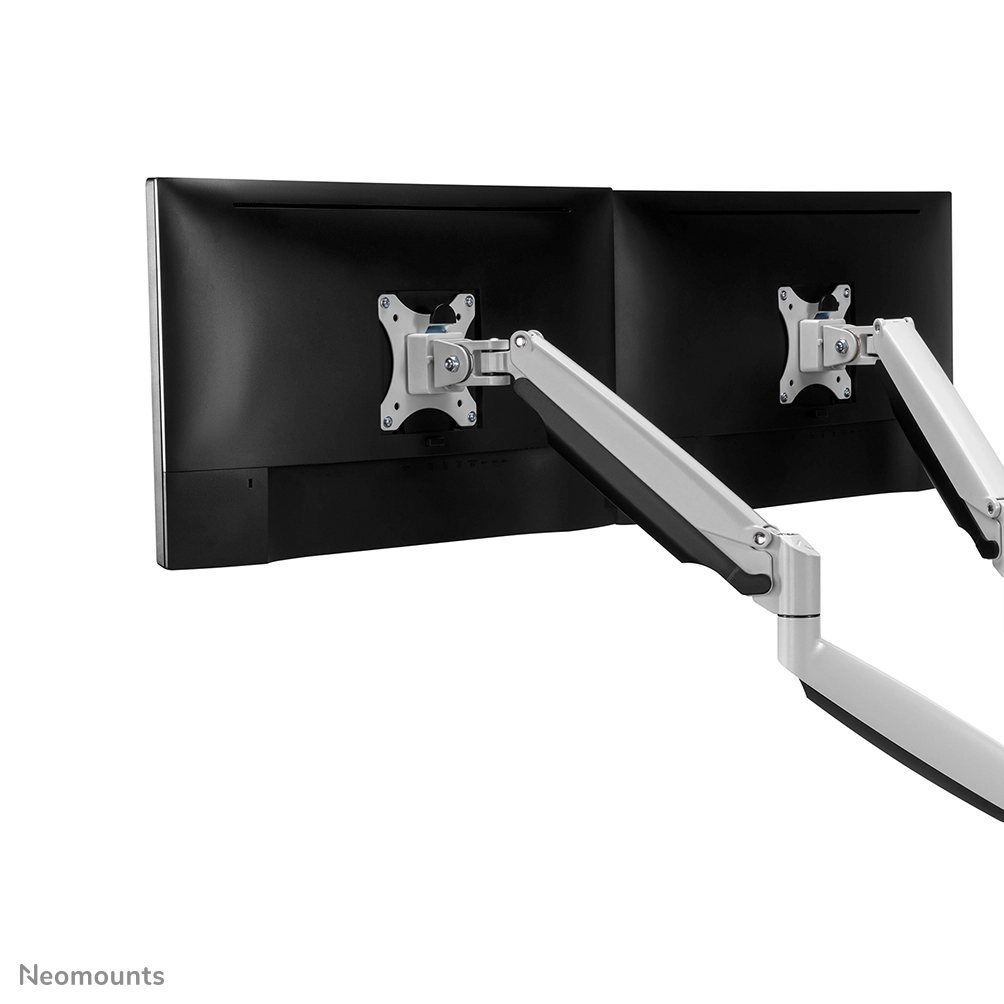

Neomounts Select NM-D750DWHITE has three pivot points and is suitable for screens up to 32" (82 cm). The weight capacity of this product is 9 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts Select VESA adapter plates.

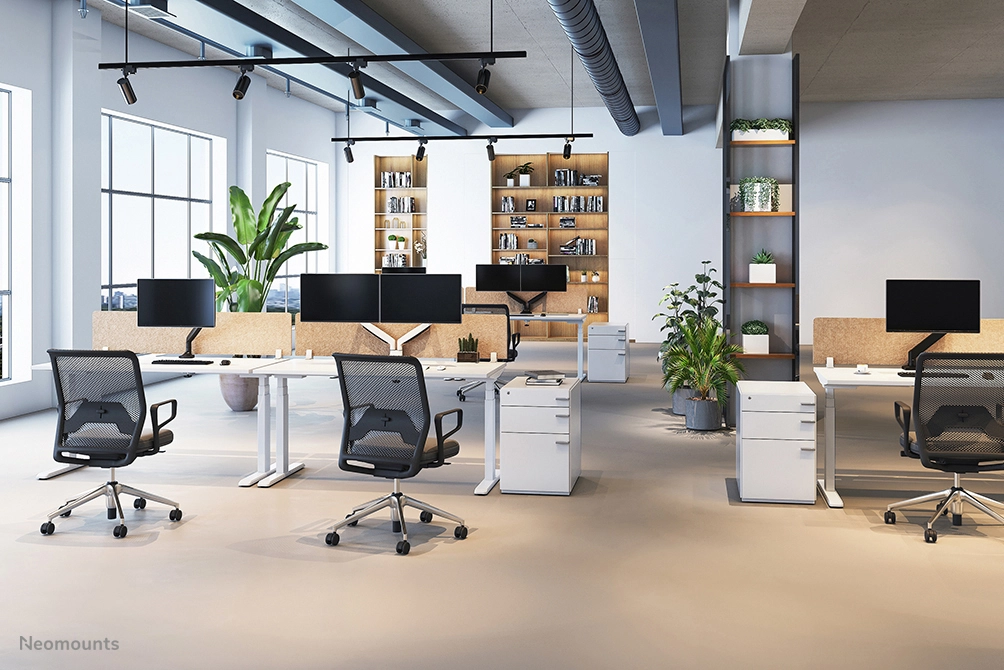

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specification

Product
Product id	563404
Brand	Neomounts
Partnr	NM-D750DWHITE
EAN/UPC code	8717371445850
Warranty (months)	5 year

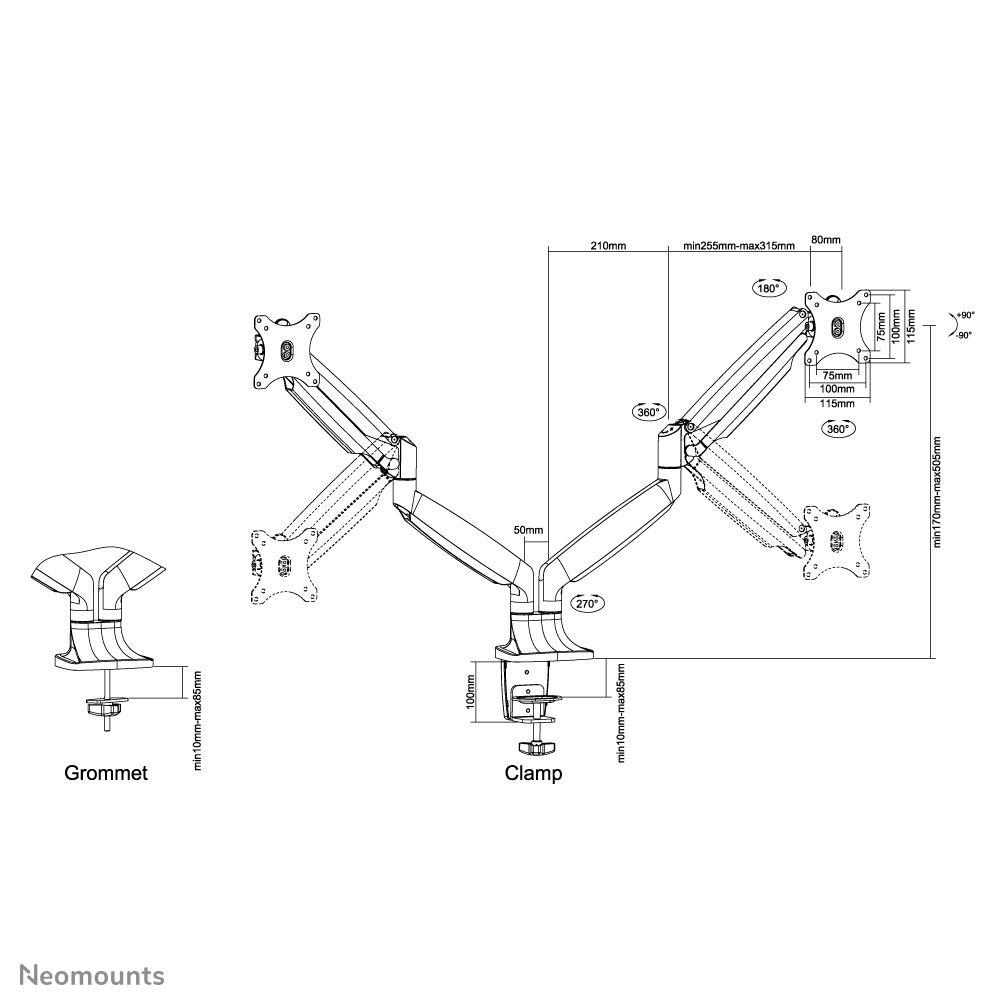

Mounting
Maximum weight capacity	9 kg
Maximum weight capacity (per display)	9 kg
Minimum screen size compatibility	10 "
Maximum screen size	32
Mounting type	Desk

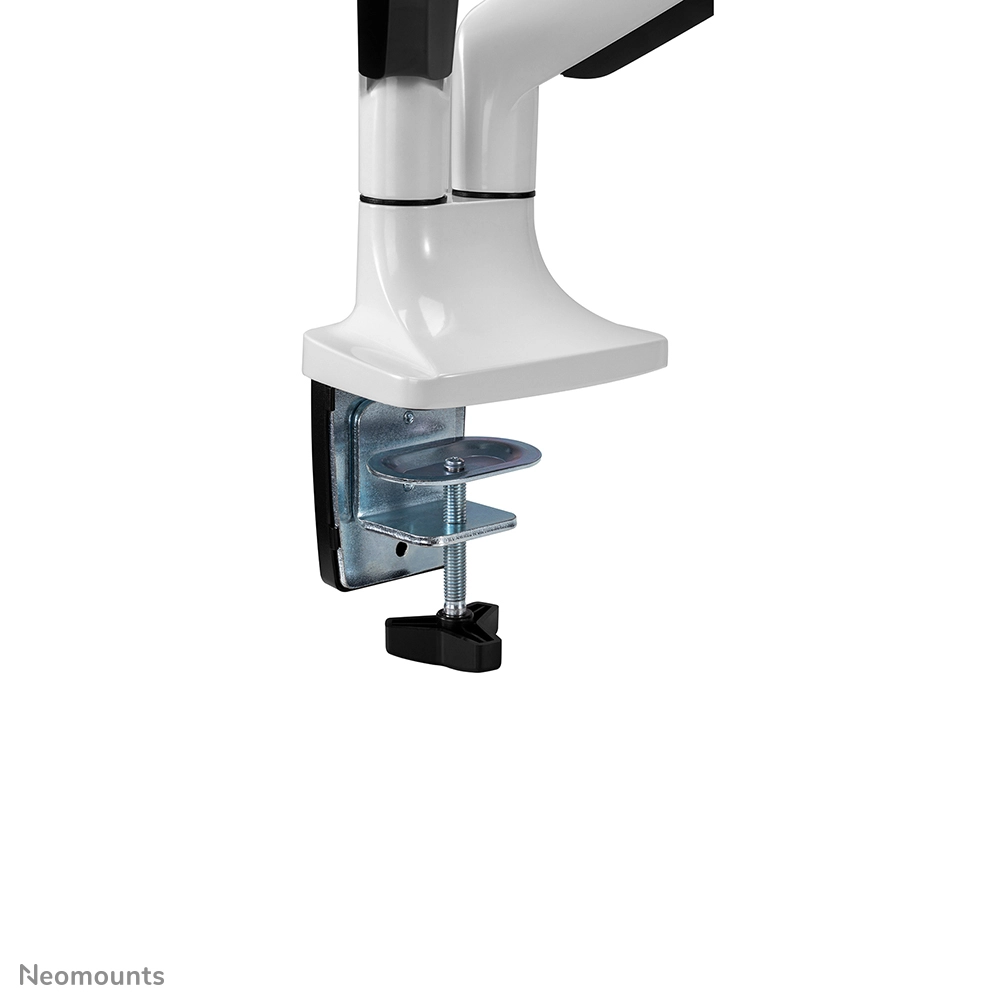

Mounting	Clamp/Bolt-through
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	75 x 75, 100 x 100 mm
Number of displays supported	2
Desk thickness (min)	10 mm
Desk thickness (max)	85 mm
Distance to the wall (min)	126 mm
Distance to the wall (max)	610 mm
Ergonomics
Height adjustment	Y
Height adjustment type	Gas spring
Height adjustment range	170 - 510 mm
Depth adjustment range	80 - 605 mm
Tilt angle range	0 - 180 °
Swivelling	Y
Swivel angle	180 °
Swivel angle range	-90 - 90 °
Angle of rotation	180 °
Rotating	Y
Tilt adjustment	Y
Design
Product colour	White
Housing material	Steel
Weight & dimensions
Depth	615 mm
Height	505 mm
Weight	6100 g
Package width	465 mm
Package depth	116 mm
Package height	570 mm
Package weight	6100 g
Logistics data
Master (outer) case width	590 mm
Master (outer) case length	480 mm
Master (outer) case height	250 mm
Master (outer) case weight	16500 g
Quantity per master (outer) case	2 stuk(s)
Master (outer) case net weight	12200 g
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	36 stuk(s)
Other features
Minimum weight	1 kg
Country of origin	China
