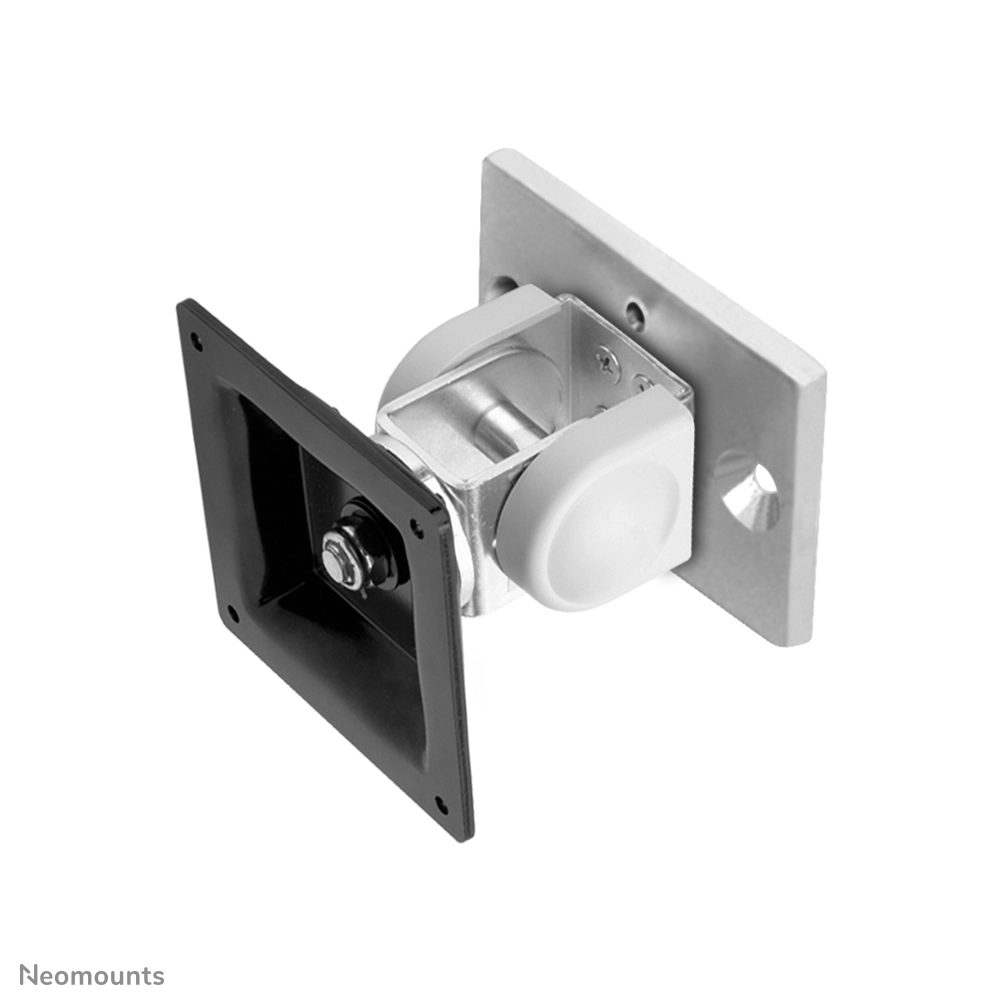

The Neomounts by Newstar toolbar mount, model FPMA-DTBW100 is a tilt- and rotatable mount for flat screens up to 30". This mount is a great choice to use in combination with Neomounts by Newstars' toolbar model FPMA-DTB100, FPMA-DTB200 or FPMA-WTB100.

Neomounts by Newstar's versatile tilt (180°) and rotate (270°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Depth 8 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

FPMA-DTBW100 has one pivot point and is suitable for screens up to 30" (76 cm). The weight capacity of this mount is 8 kg each screen. The toolbar mount is suitable for screens that meet VESA hole pattern 75x75 and 100x100 mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specification

Product
Product id	502608
Brand	Neomounts
Partnr	FPMA-DTBW100
EAN/UPC code	8717371445195
Warranty (months)	5 year
Mounting
Maximum weight capacity	8 kg
Minimum screen size compatibility	10 "
Maximum screen size	30
Mounting type	Desk
Mounting	Bolt-through

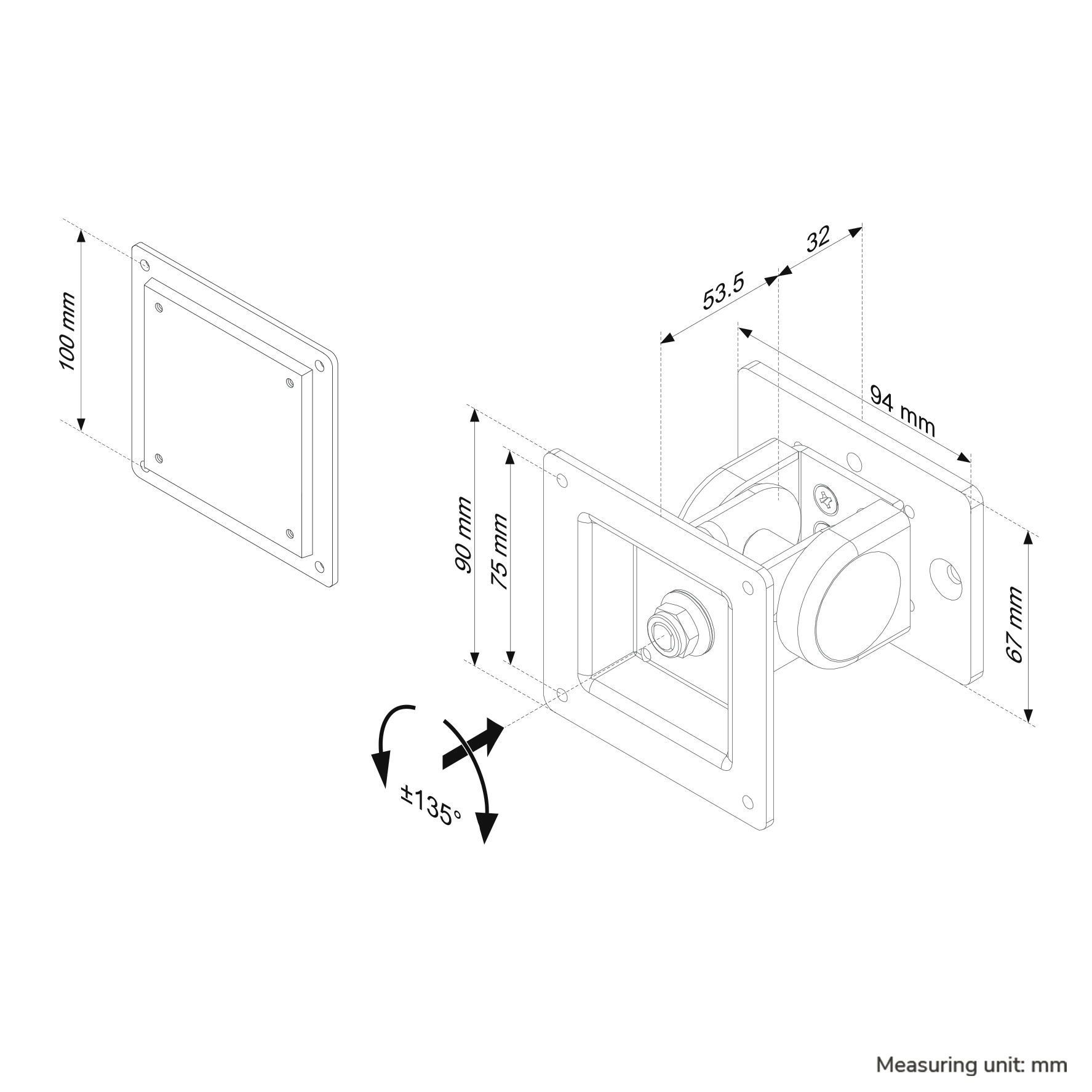

Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	75 x 75 mm
Number of displays supported	1
Distance to the wall (min)	80 mm
Distance to the wall (max)	80 mm
Ergonomics
Depth adjustment range	0 - 80 mm
Tilt angle range	-90 - 90 °
Angle of rotation	270 °
Tilt adjustment	Y
Design
Product colour	Grey
Housing material	Steel
Weight & dimensions
Depth	80 mm
Weight	1250 g
Package width	130 mm
Package depth	130 mm
Package height	110 mm
Package weight	1100 g
Package net weight	1100 g
Logistics data
Master (outer) case width	280 mm
Master (outer) case length	270 mm
Master (outer) case height	350 mm
Master (outer) case weight	15600 g
Quantity per master (outer) case	12 stuk(s)
Master (outer) case net weight	15000 g
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	384 stuk(s)
Other features
Country of origin	Taiwan
