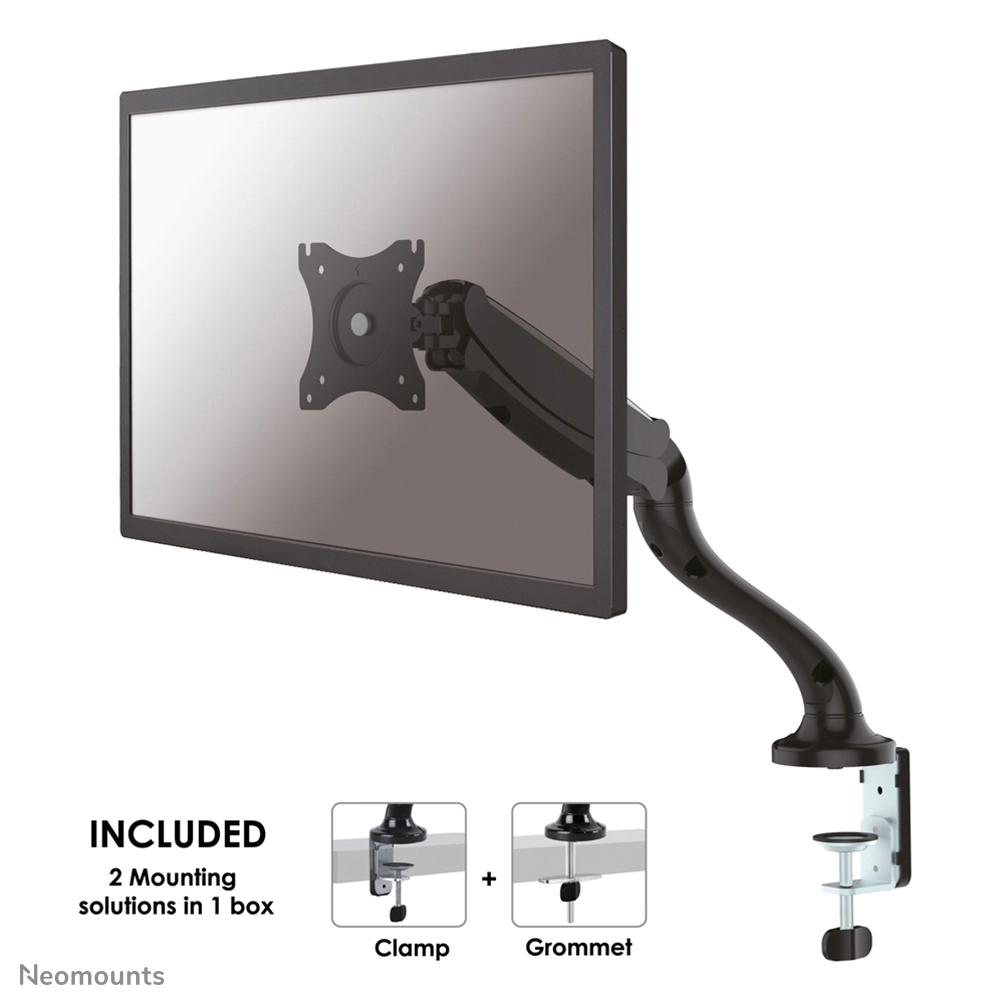

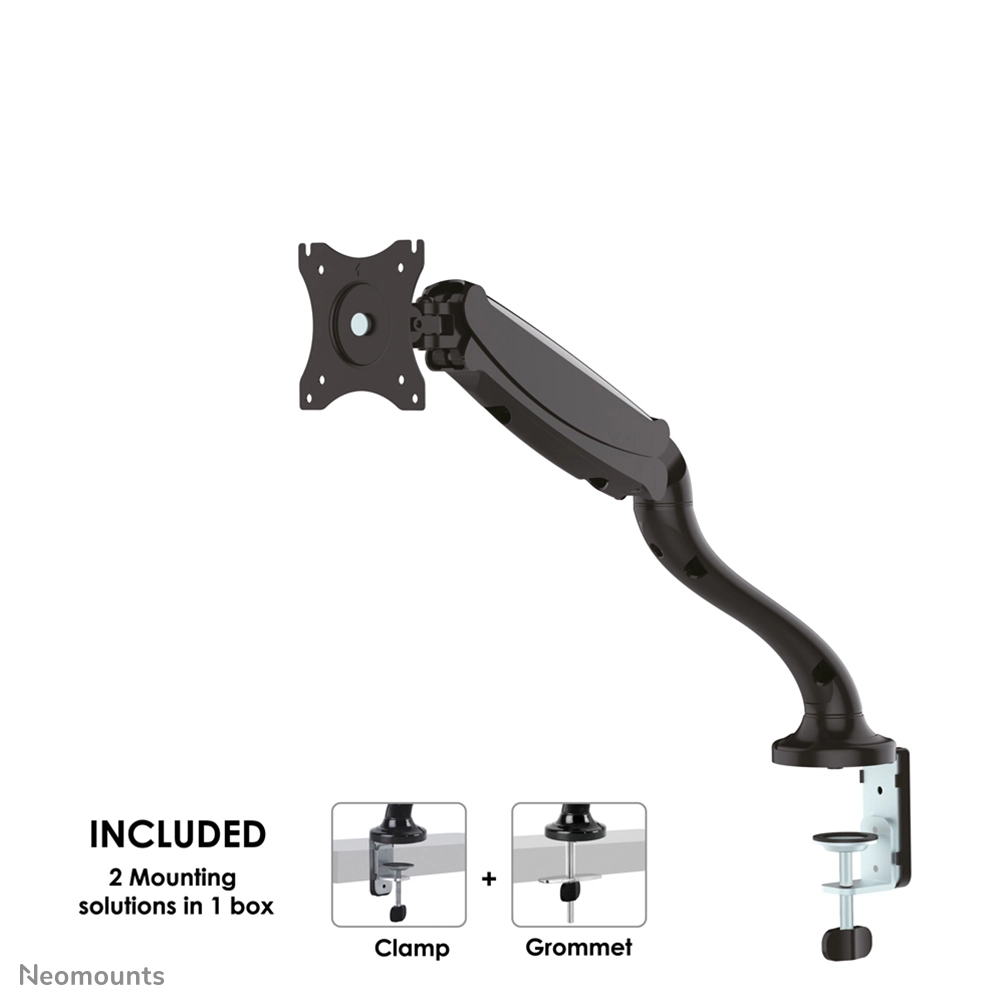

The Neomounts Select desk mount, model NM-D500BLACK is a tilt-, swivel and rotatable desk mount for flat screens up to 30". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

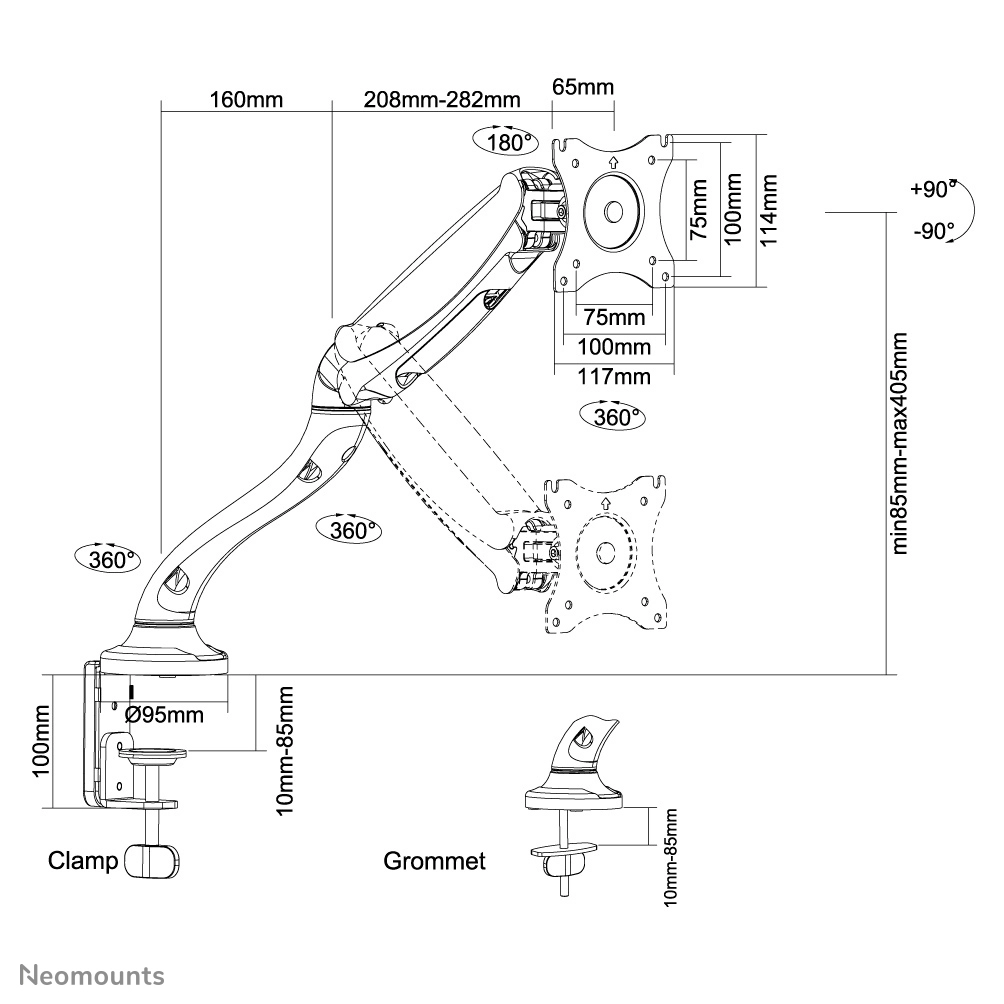

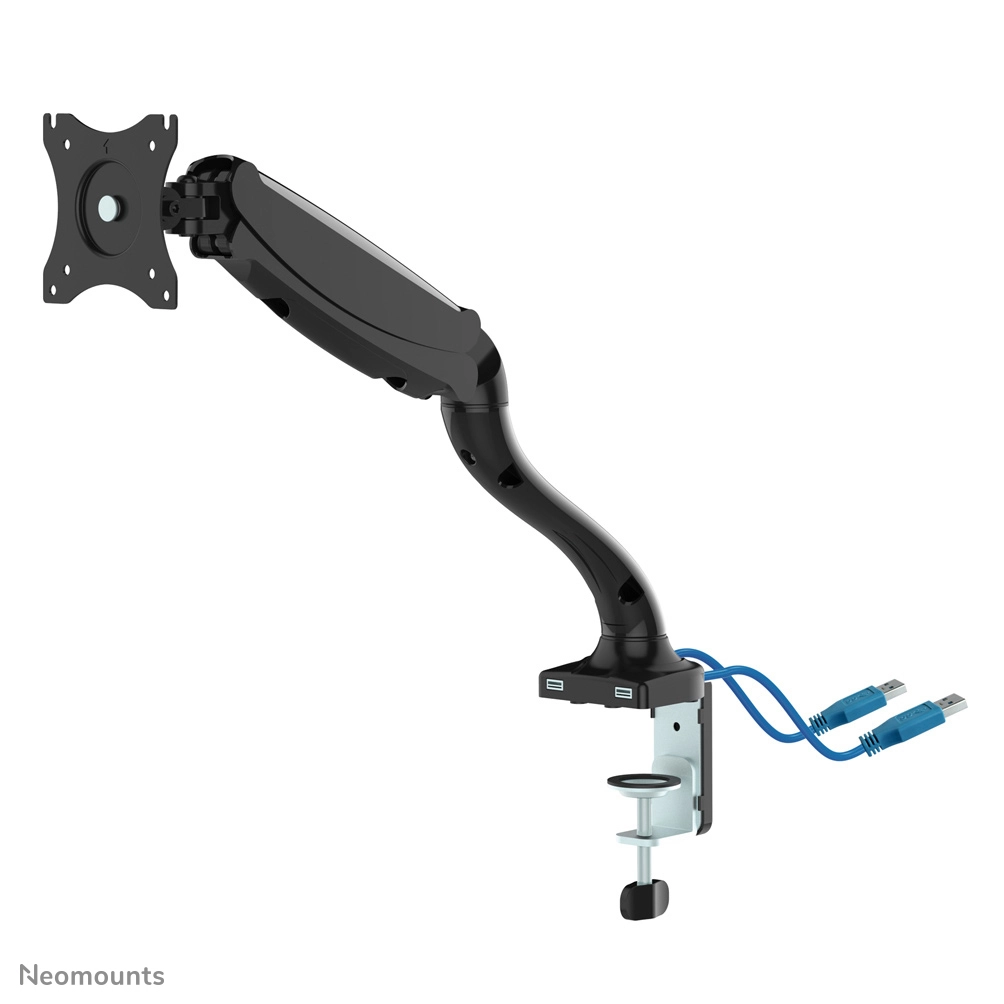

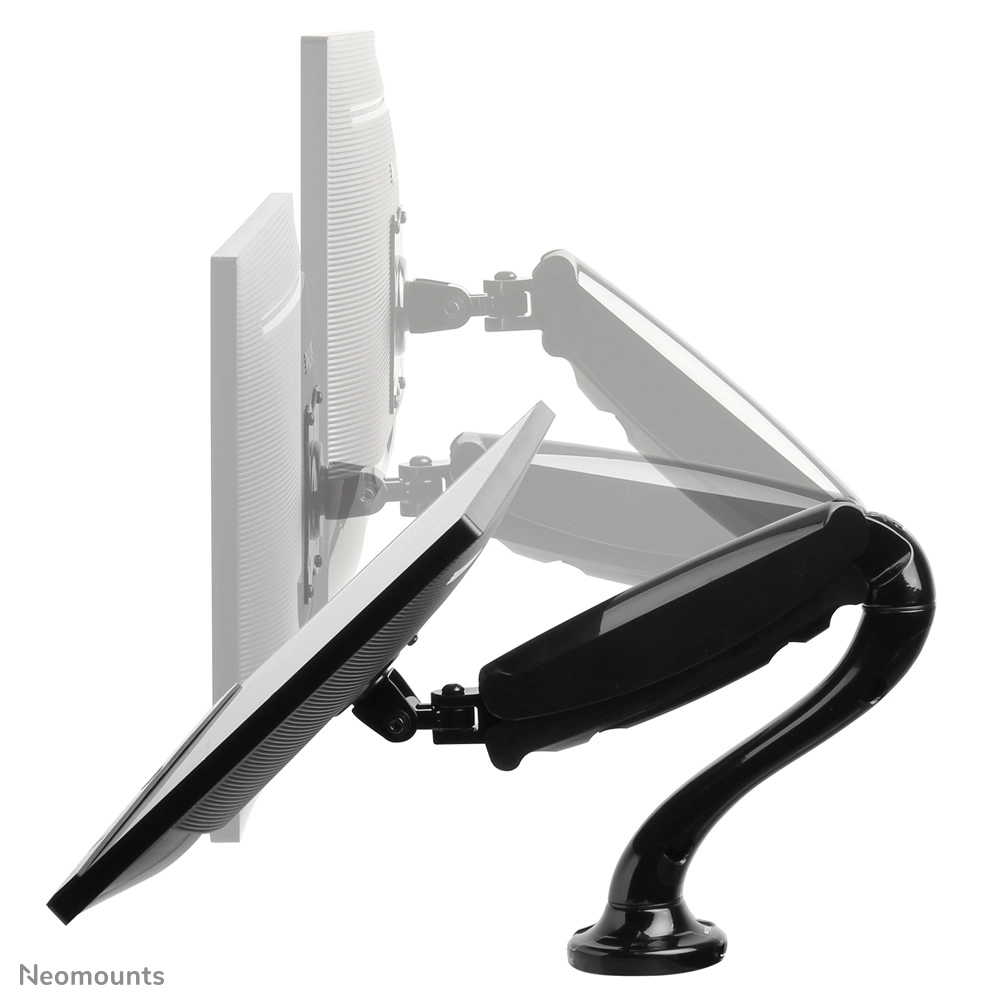

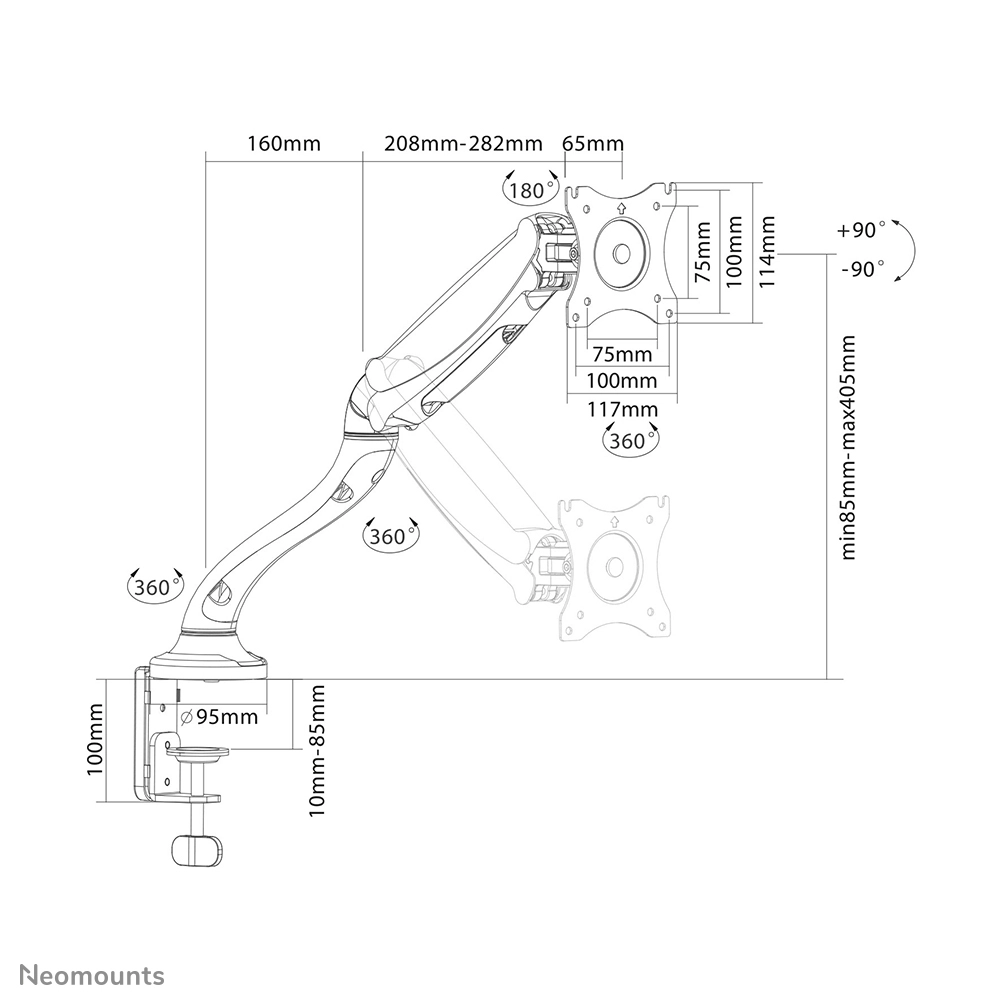

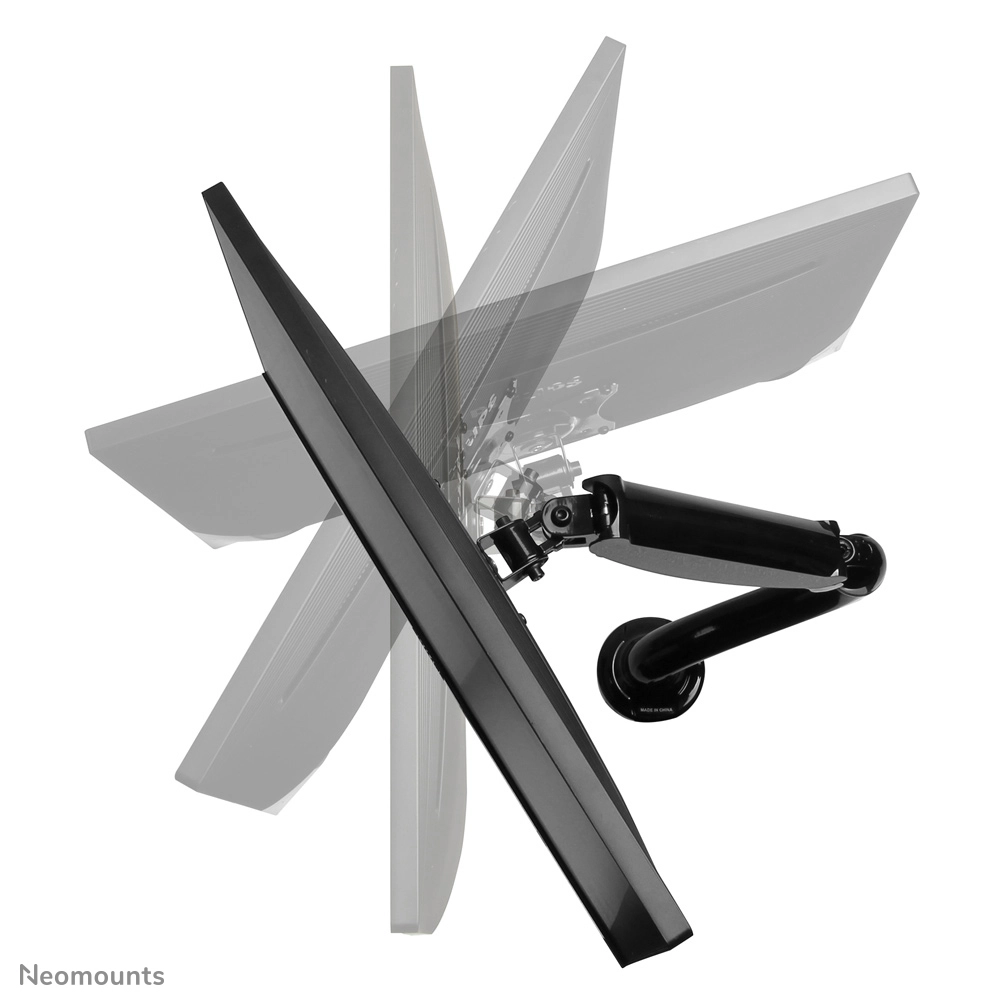

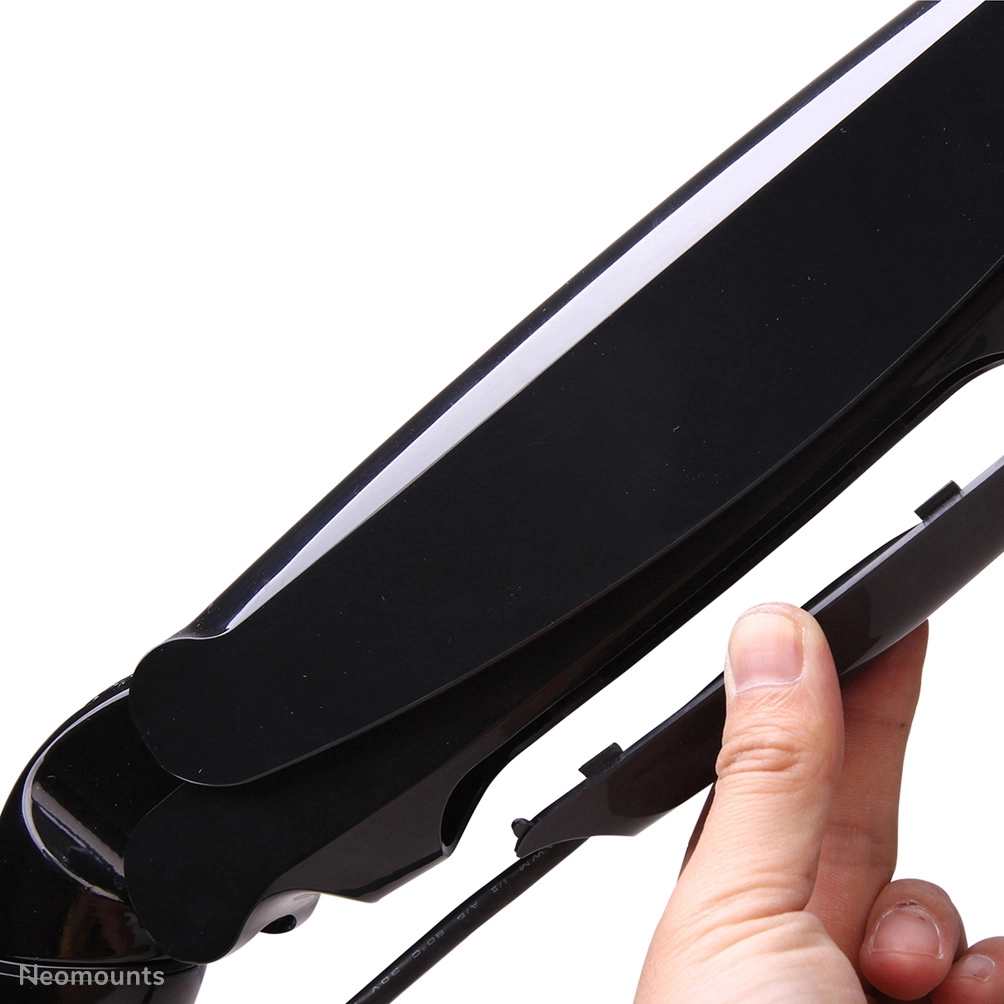

Neomounts Select's versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily height adjustable from 8, 5 to 40, 5 centimetres using a gas spring. Depth adjustable from 6, 5 to 50, 7 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts Select NM-D500BLACK has three pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 6 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts Select VESA adapter plates.

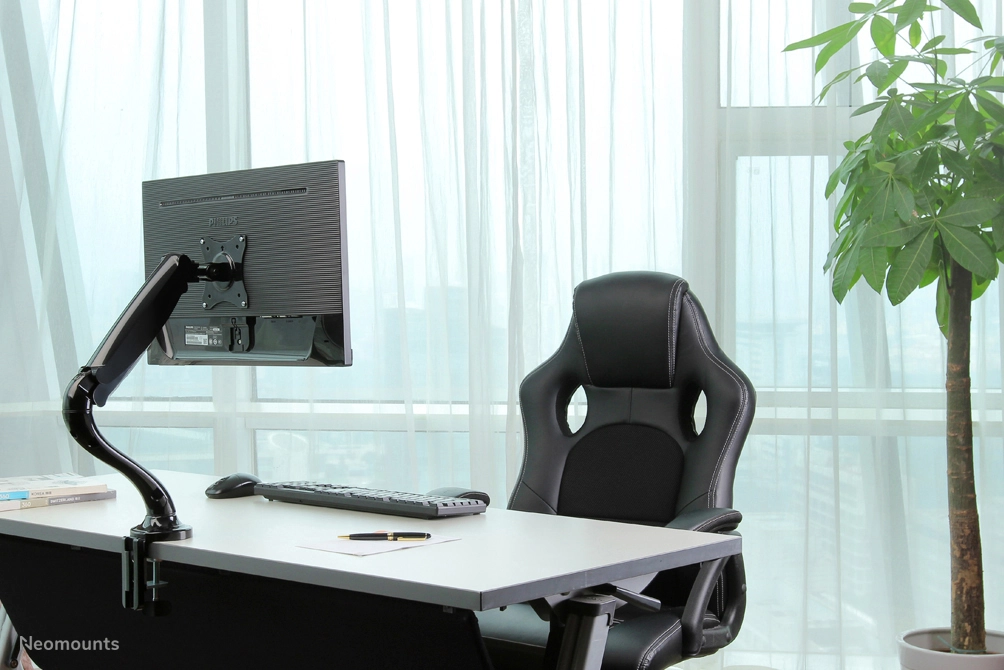

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specification

Product
Product id	532392
Brand	Neomounts
Partnr	NM-D500BLACK
EAN/UPC code	8717371445409
Warranty (months)	5 year
Mounting
Maximum weight capacity	6 kg
Minimum screen size compatibility	10 "
Maximum screen size	30
Mounting type	Desk
Mounting	Clamp/Bolt-through
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Number of displays supported	1
Distance to the wall (max)	510 mm
Ergonomics
Height adjustment	Y
Height adjustment type	Gas spring
Height adjustment range	80 - 410 mm
Adjustable depth	Y
Tilt angle range	0 - 180 °
Swivel angle	180 °
Angle of rotation	360 °
Design
Product colour	Black
Weight & dimensions
Depth	507 mm
Height	405 mm
Package width	255 mm
Package depth	123 mm
Package height	390 mm
Package net weight	2400 g
Logistics data
Master (outer) case width	758 mm
Master (outer) case length	410 mm
Master (outer) case height	275 mm
Quantity per master (outer) case	6 stuk(s)
Master (outer) case net weight	14500 g
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	96 stuk(s)
Other features
Country of origin	China
