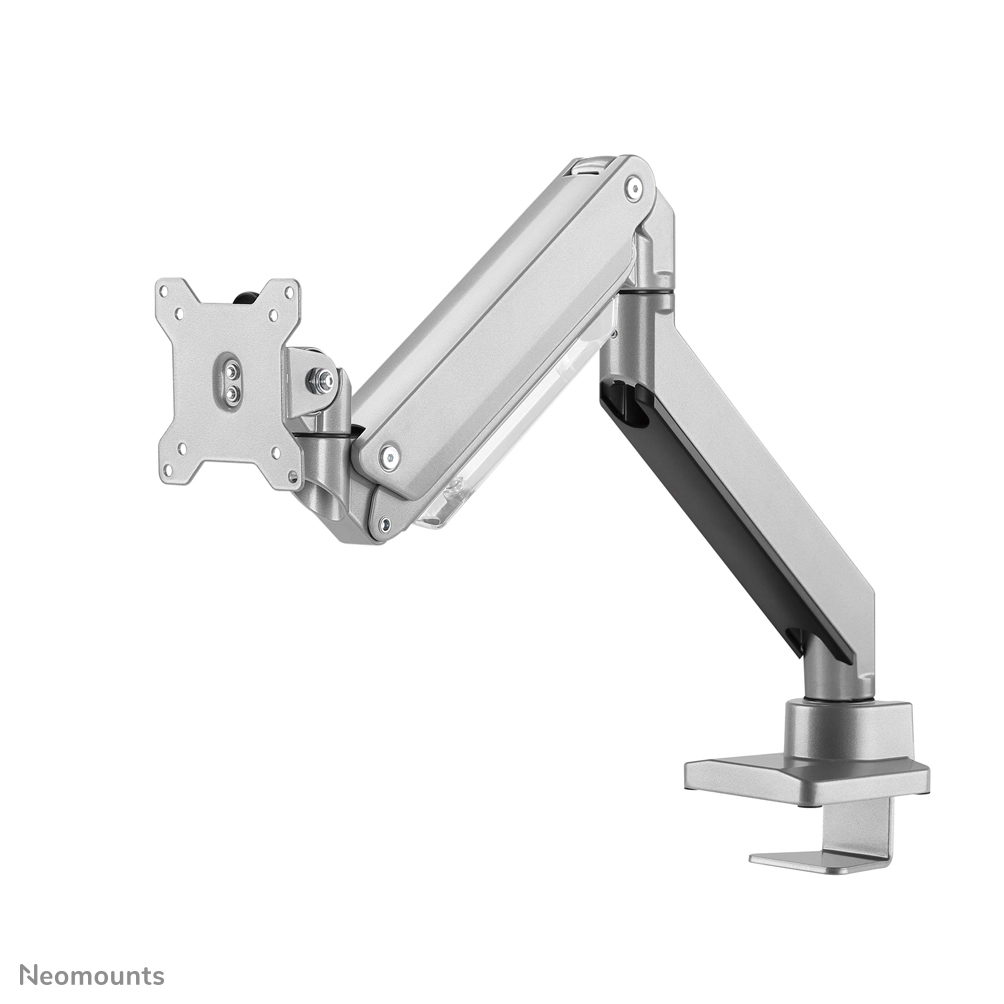

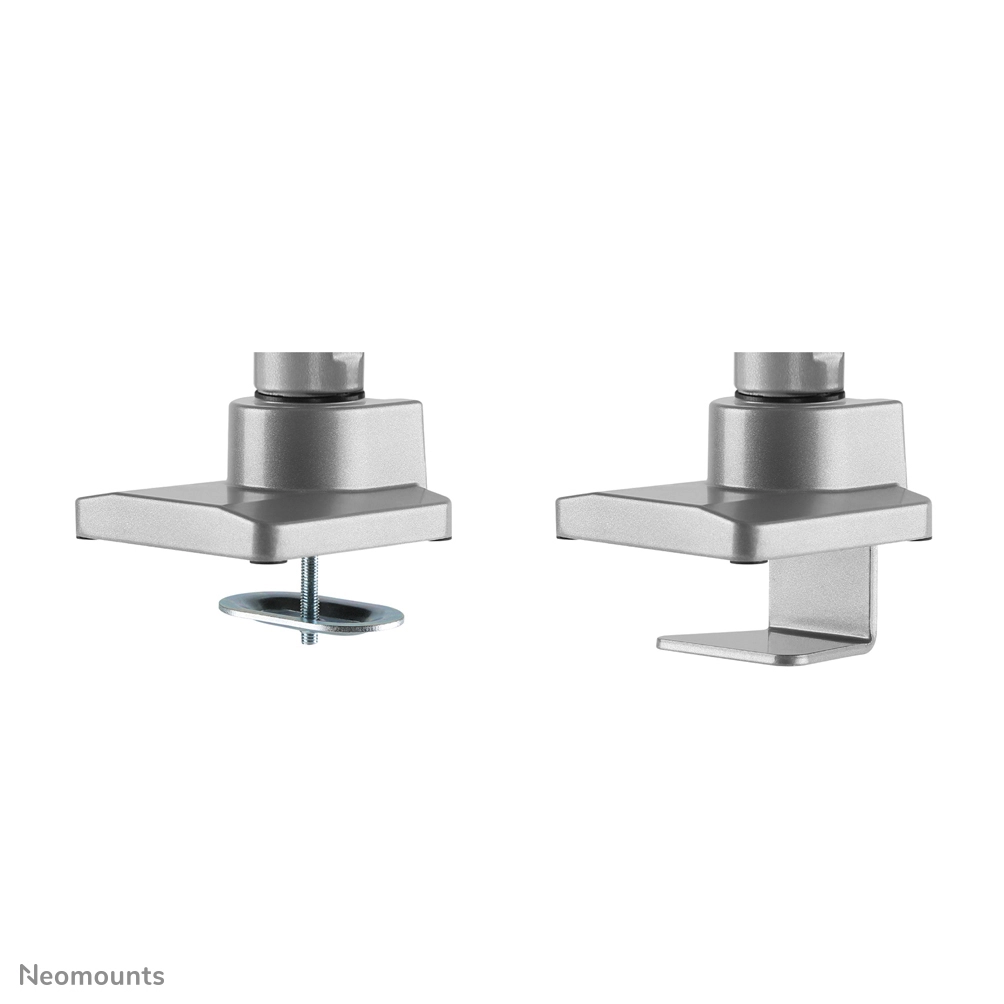

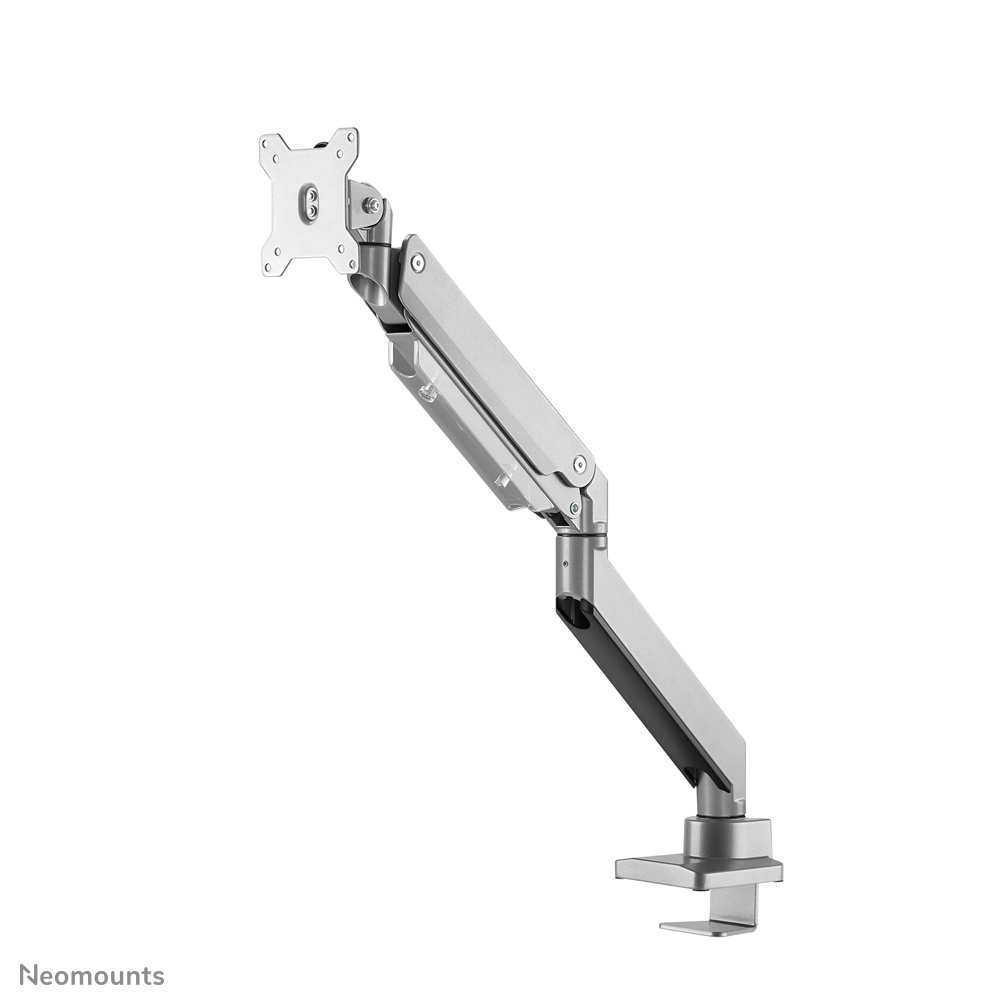

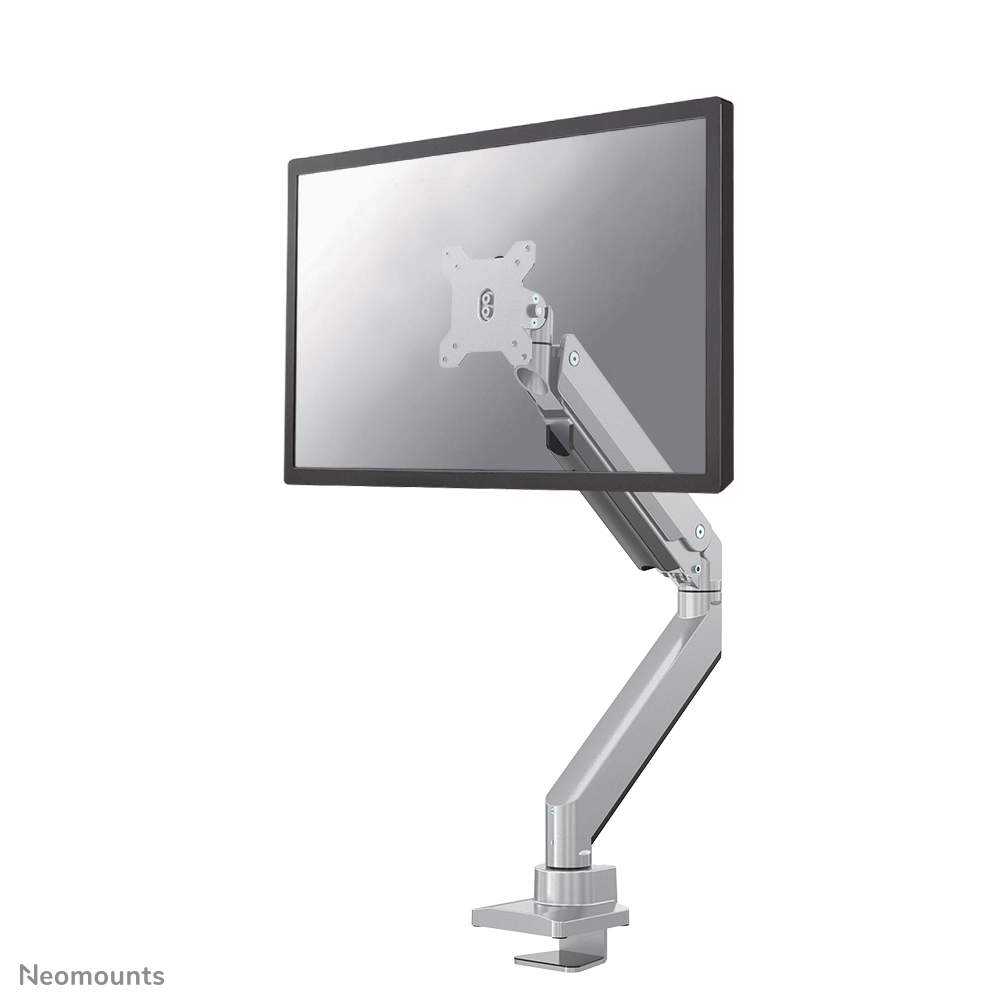

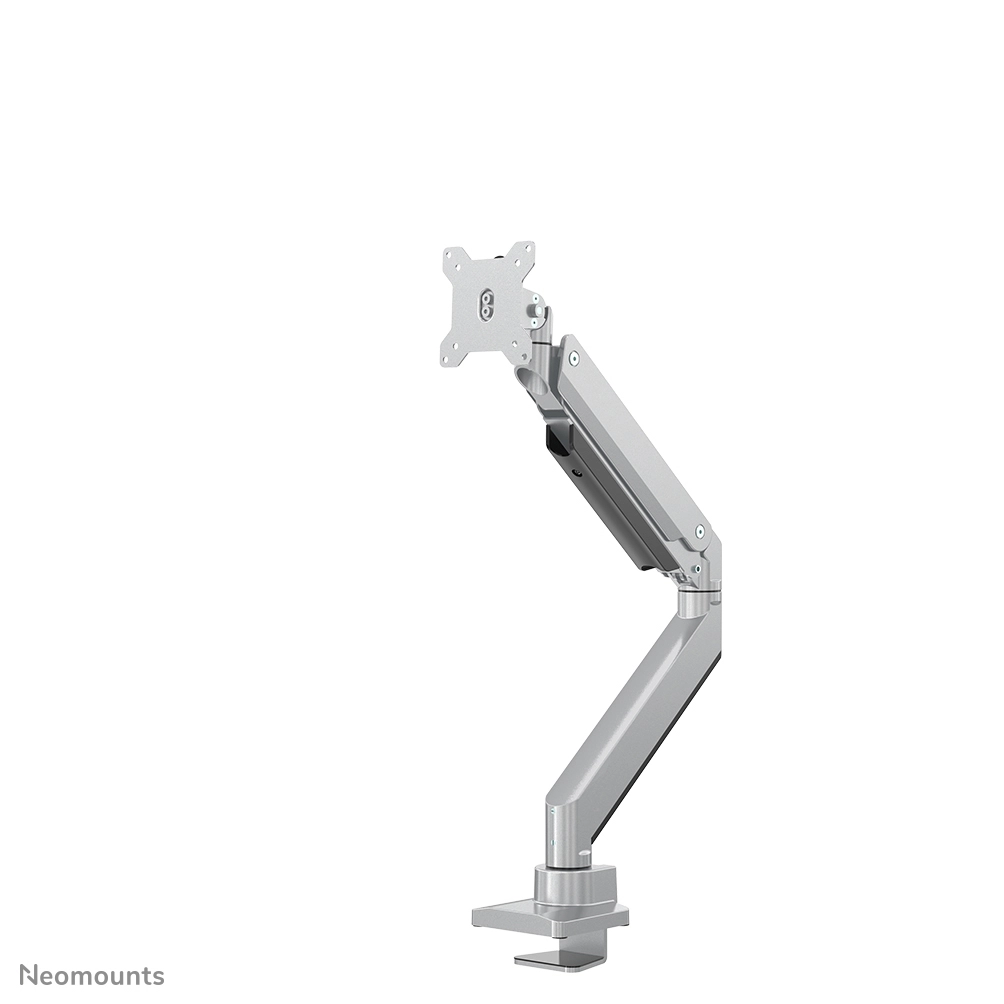

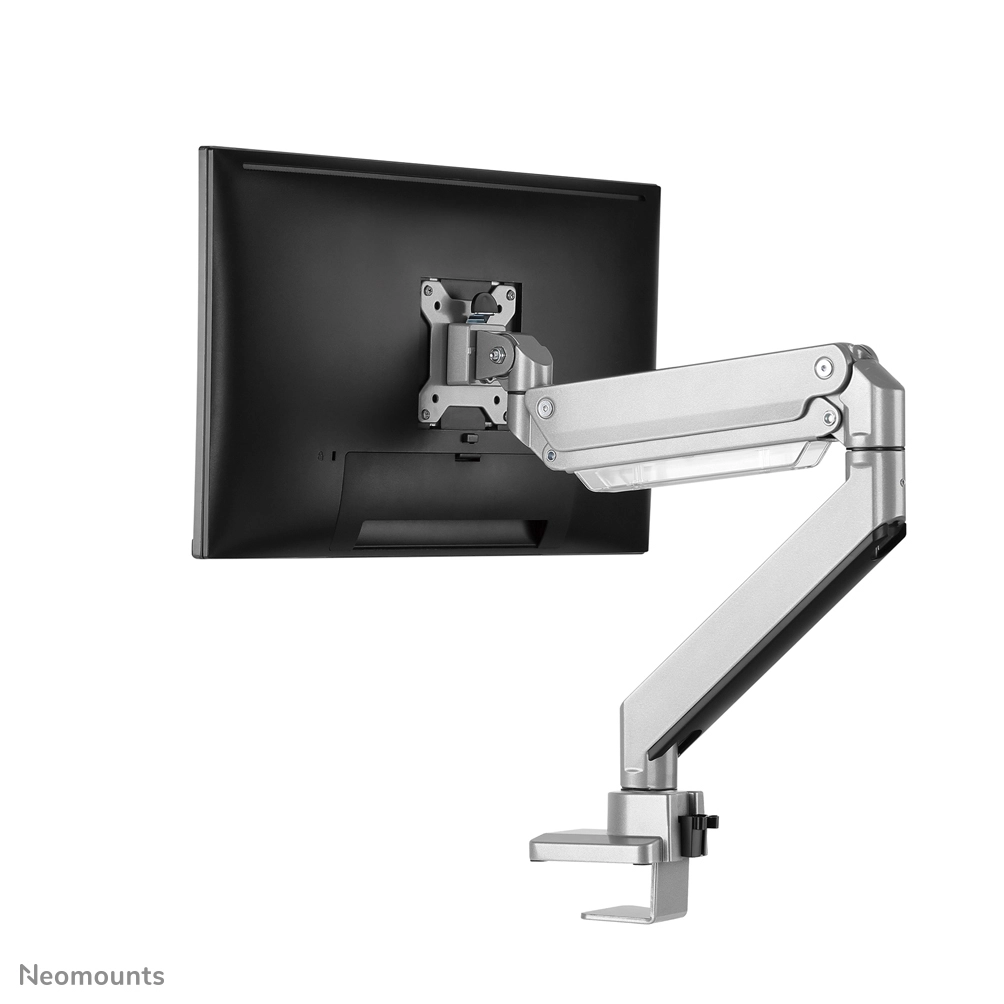

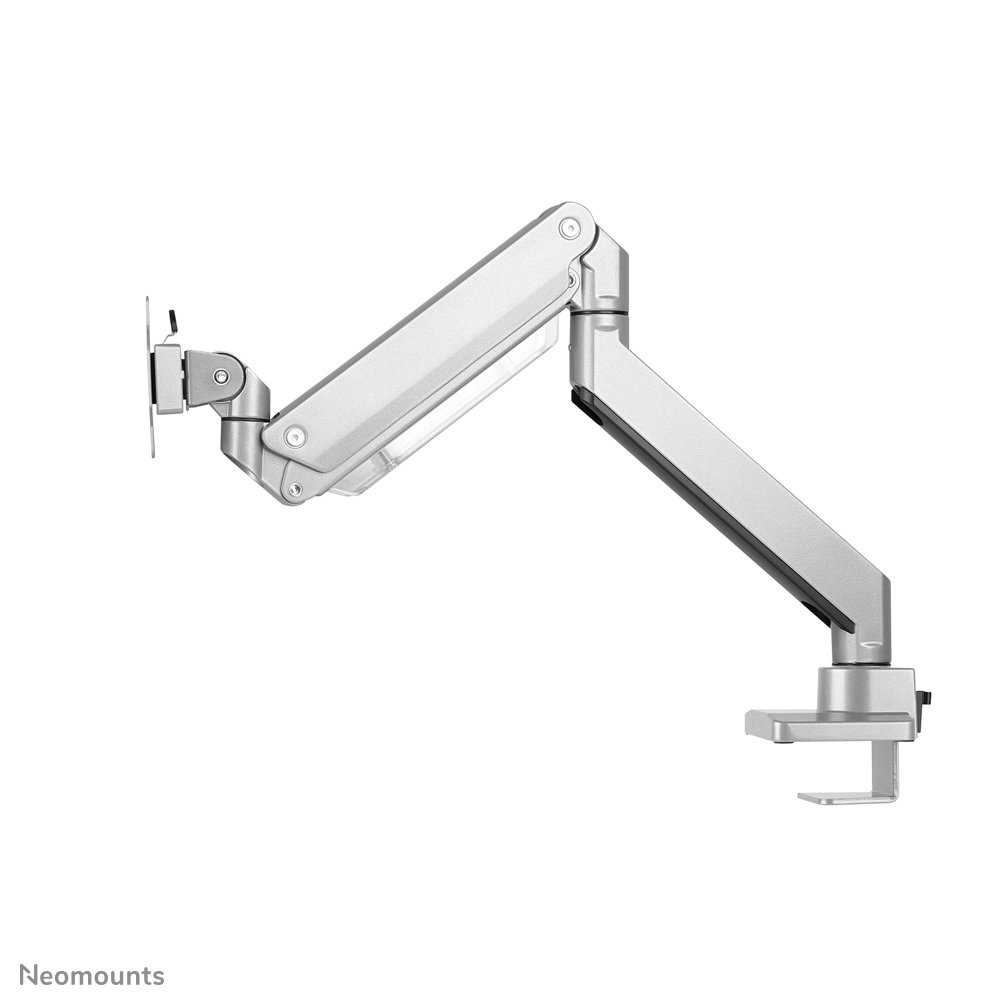

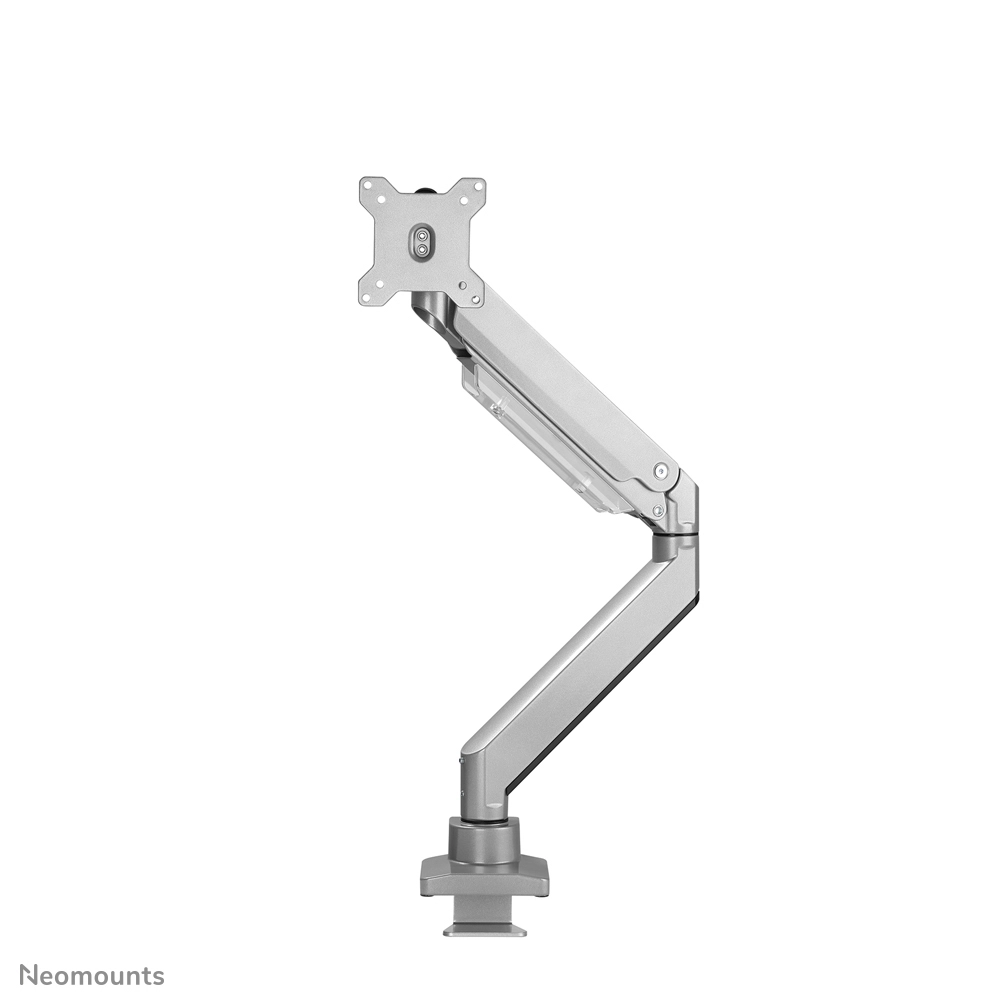

The Neomounts Select NM-D775SILVER is a tilt-, swivel and rotatable desk mount for flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

Neomounts Selects' unique tilt (90°), rotate (180°) and swivel (180°/360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable to 59 centimetres using a gas spring. Depth adjustable from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The mount is equipped with a 180° stop mechanism.

Neomounts Select NM-D775SILVER has three pivot points and is suitable for flat screens up to 32" (81 cm). The weight capacity of this product is 1 to 16 kg. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts Select VESA adapter plates.

For curved monitor screens we recommend our NM-D775 PLUS models; the NM-D775SILVERPLUS mounts are specifically designed to support curved screens. They feature a strengthen head for curved screens and are designed to support a higher total capacity up to 49" and a maximum weight of 18 kg.

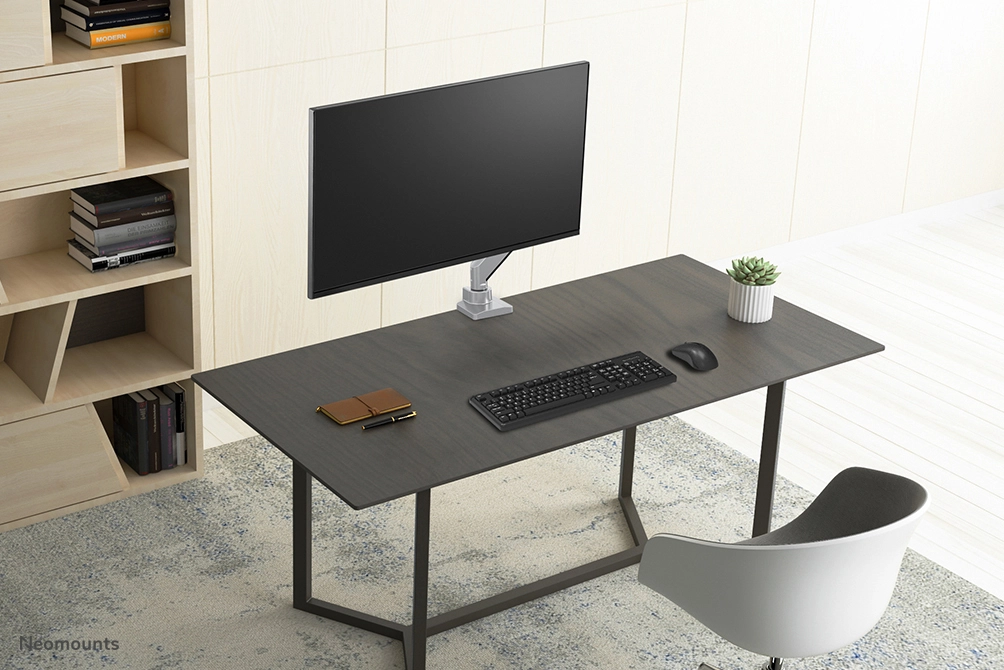

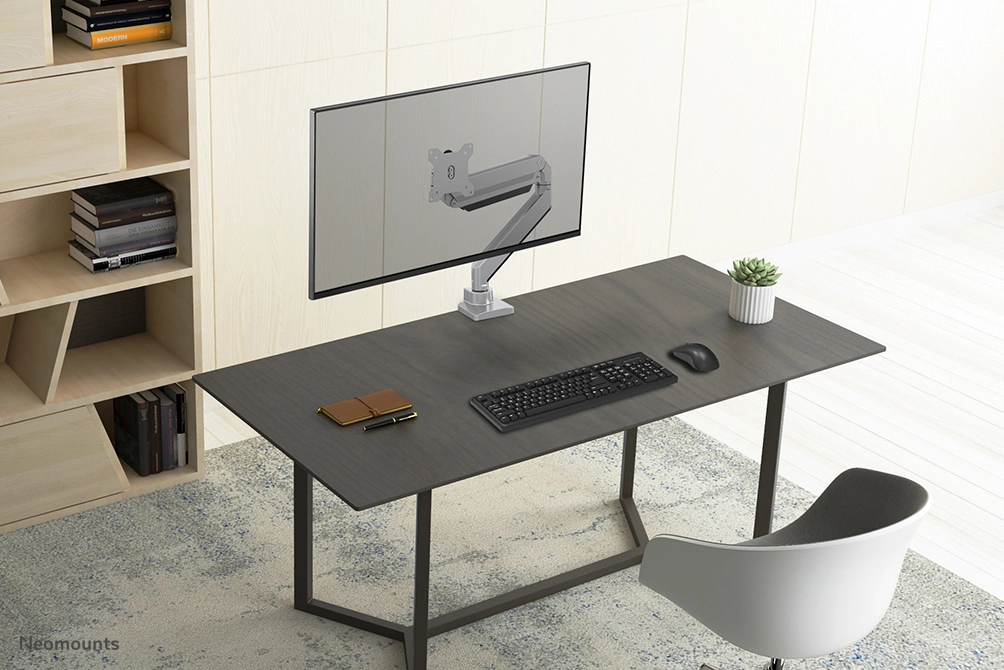

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specification

Product
Product id	647267
Brand	Neomounts
Partnr	NM-D775SILVER
EAN/UPC code	8717371447229
Warranty (months)	5 year
Mounting
Maximum weight capacity	16 kg
Maximum weight capacity (per display)	15 kg
Minimum screen size compatibility	10 "
Maximum screen size	32
Mounting type	Desk

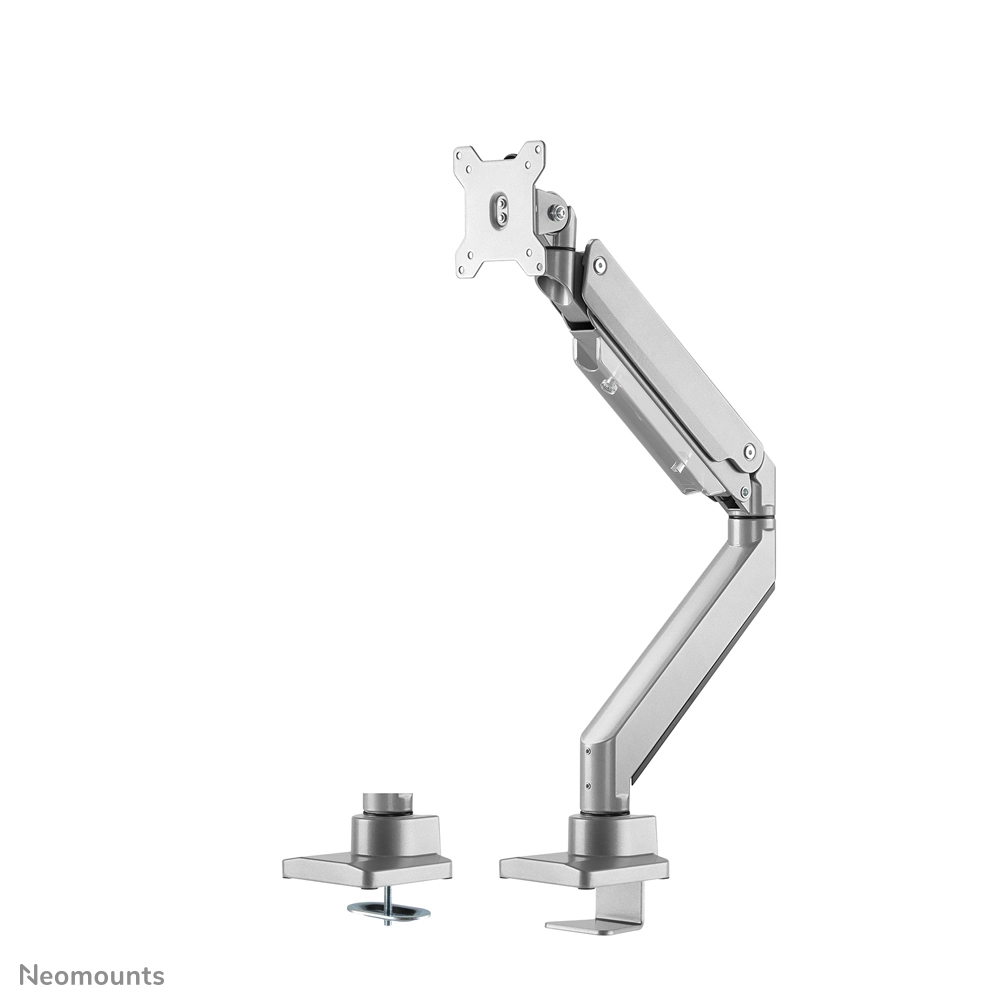

Mounting	Clamp/Bolt-through
Maximum weight capacity (per curved/ultra-wide display)	11 kg
Suitable for TV	Y
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	100 x 100, 75 x 75 mm
Number of displays supported	1

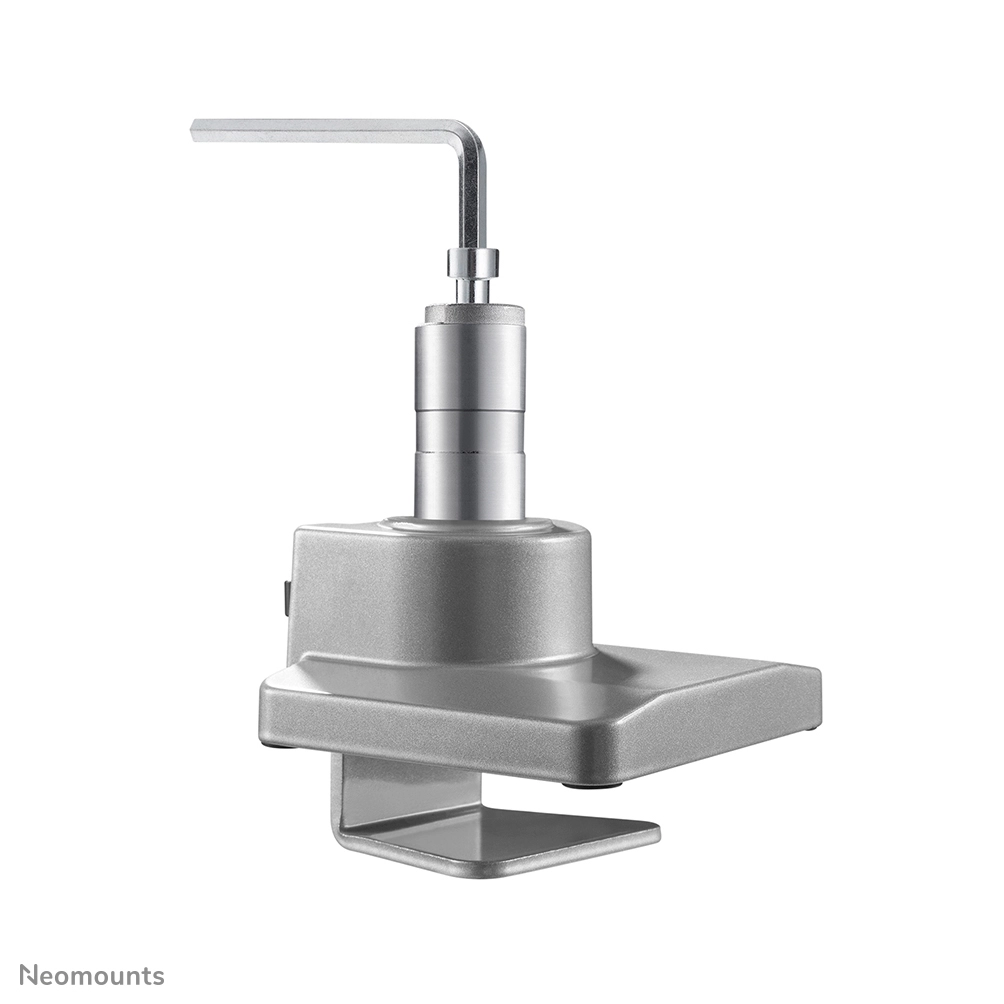

Desk thickness (min)	10 mm
Desk thickness (max)	45 mm
Ergonomics
Height adjustment	Y
Height adjustment type	Gas spring

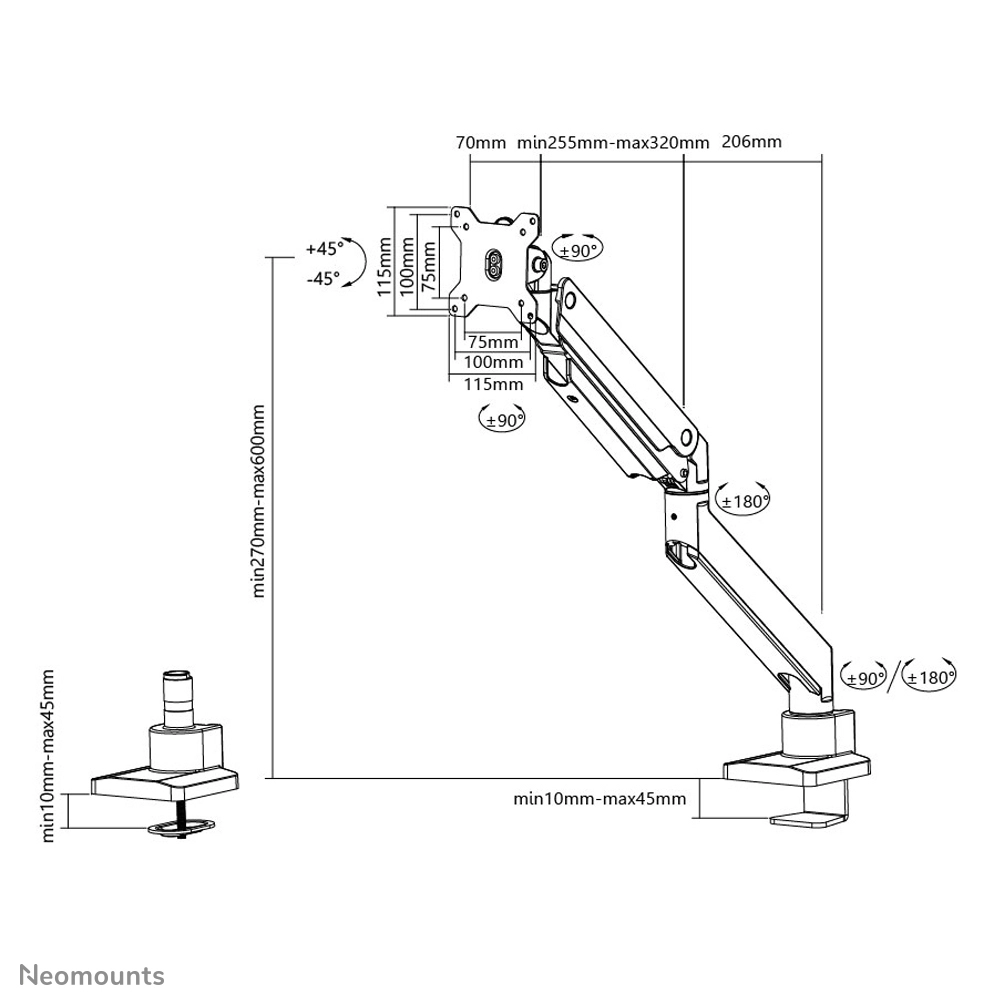

Height adjustment range	270 - 600 mm
Adjustable depth	Y
Depth adjustment range	0 - 630 mm
Tilt angle range	-90 - 90 °
Swivelling	Y
Swivel angle	360 °
Swivel angle range	0 - 360 °
Angle of rotation	180 °
Cable management	Y
Rotating	Y
Tilt adjustment	Y
Design
Product colour	Silver
Housing material	Steel
Orientation	Landscape
Weight & dimensions
Height	600 mm
Weight	3910 g
Package width	255 mm
Package depth	110 mm
Package height	560 mm
Package weight	5200 g
Package net weight	5200 g
Logistics data
Master (outer) case width	575 mm
Master (outer) case length	530 mm
Master (outer) case height	240 mm
Master (outer) case weight	20800 g
Quantity per master (outer) case	4 stuk(s)
Master (outer) case net weight	18700 g
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	72 stuk(s)
Other features
Minimum weight	1 kg
Country of origin	China
