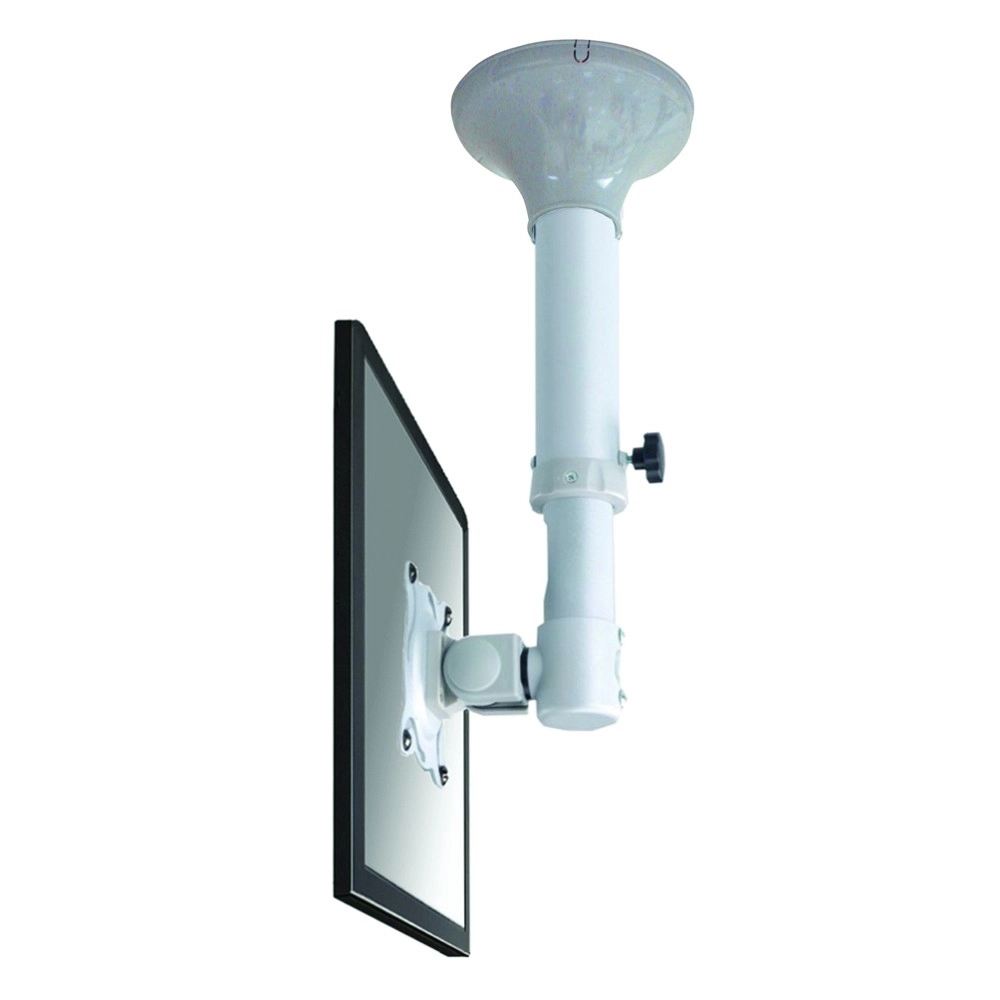

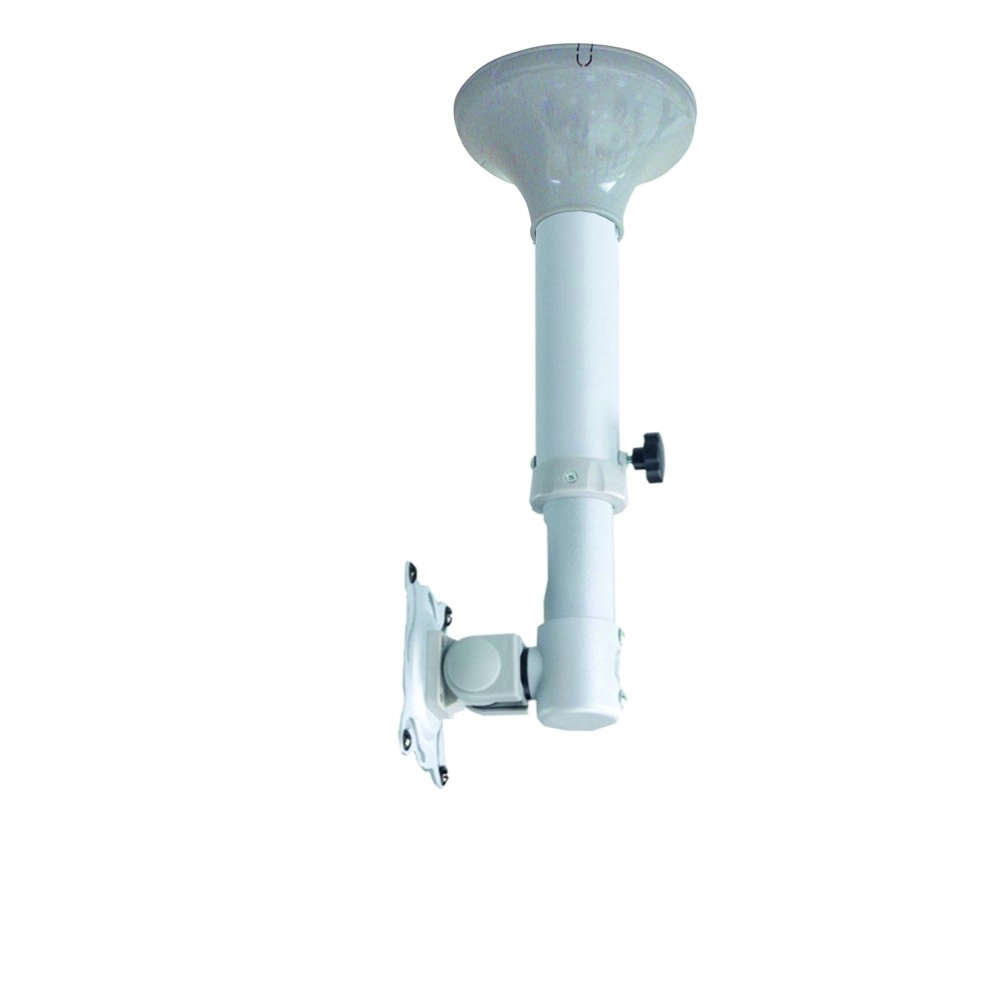

The Neomounts by Newstar ceiling mount, model FPMA-C025SILVER is a tilt- and rotatable ceiling mount for flat screens up to 30" (76 cm). This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.

Neomounts by Newstar's versatile tilt (180°) and rotate (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 37 to 47 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.

Neomounts by Newstar FPMA-C025SILVER has one pivot point and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 12 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.

All installation material is included with the product.

Specification

Product
Product id	282451
Brand	Newstar Computer Products
Partnr	FPMA-C025SILVER
EAN/UPC code	8717371442354
Warranty (months)	5 year
Mounting
Maximum weight capacity	12 kg
Minimum screen size compatibility	10 "
Mounting type	Ceiling
Maximum screen size	30
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Ergonomics
Height adjustment type	Manual

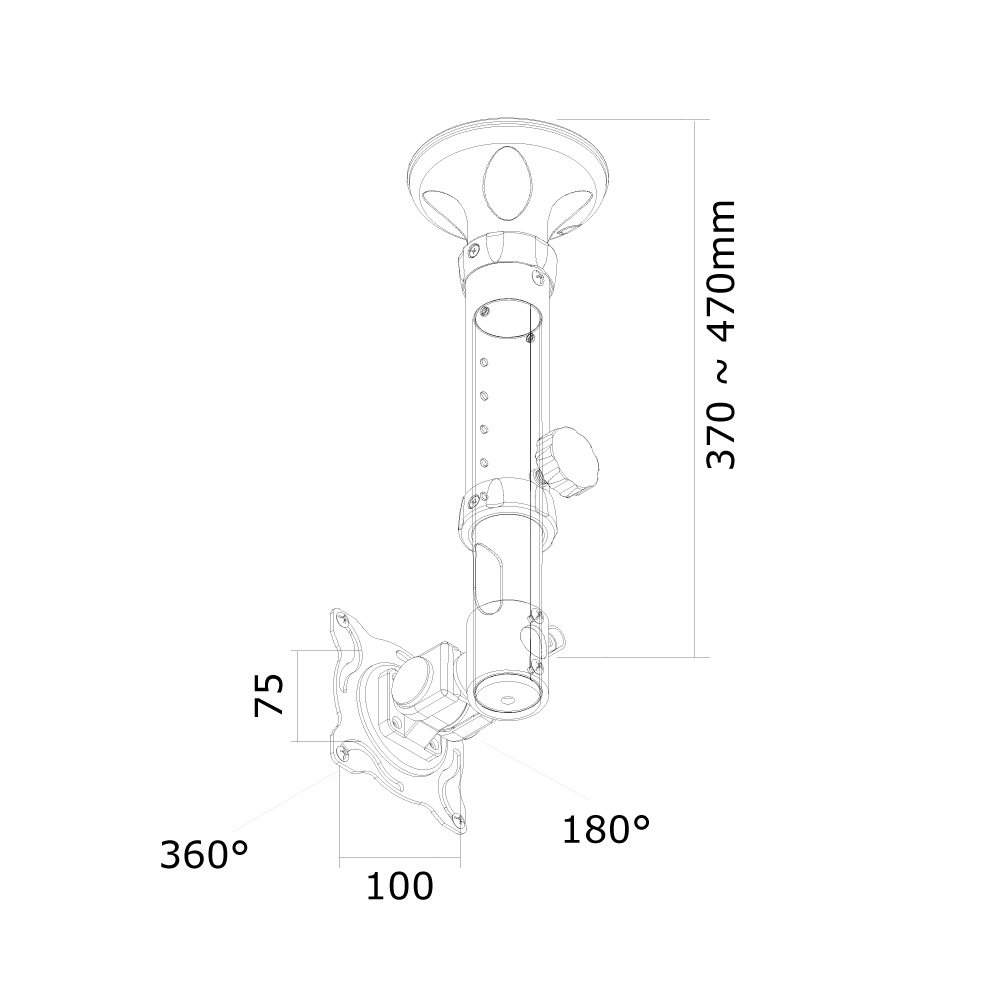

Height adjustment range	370 - 470 mm
Height adjustment	Y
Tilt angle range	0 - 180 °
Design
Product colour	Silver
Weight & dimensions
Depth	50 mm
Height	470 mm
Package width	403 mm
Package depth	182 mm
Package height	191 mm
Technical details
Angle of rotation	360 °
Number of displays supported	1
Other features
Country of origin	Taiwan
Logistics data
Master (outer) case net weight	9300 g
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	84 stuk(s)
Master (outer) case width	590 mm
Master (outer) case length	437 mm
Master (outer) case height	240 mm
Master (outer) case weight	10450 g
Quantity per master (outer) case	3 stuk(s)
