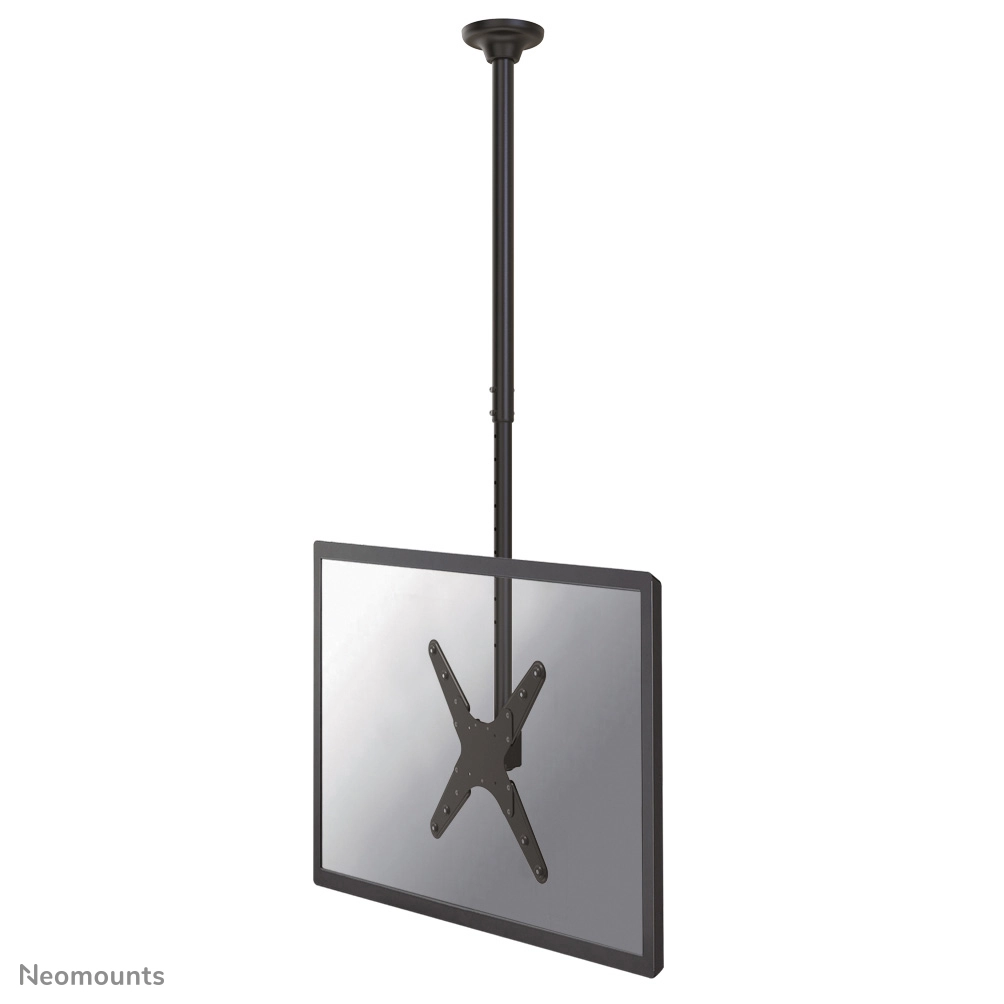

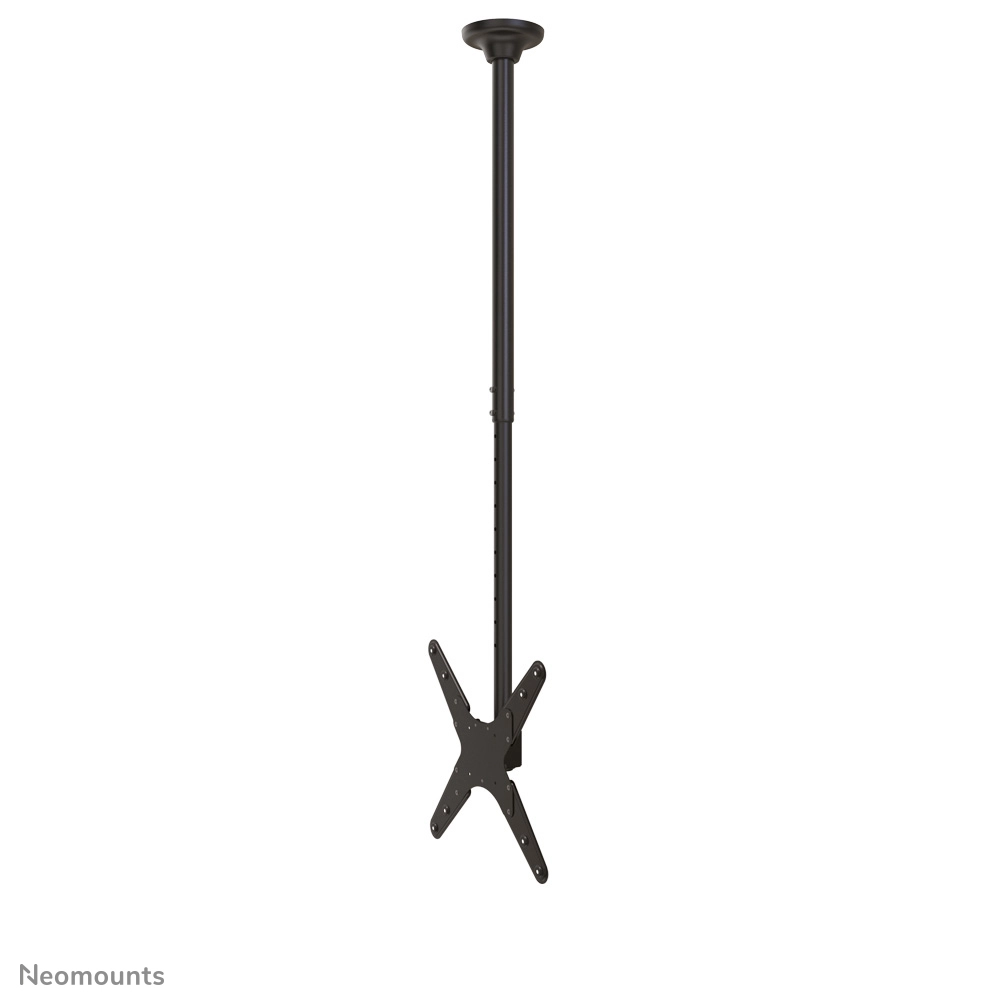

The Neomounts by Newstar FPMA-C340BLACK is a tilt- and swivel ceiling mount for flat screens up to 75". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.

Neomounts by Newstars' unique tilt (25°) and rotation (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 106 to 156 centimeters*. A unique cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.

Neomounts by Newstar FPMA-C340BLACK has 1 pivot point and is suitable for screens up to 75". The weight capacity of this product is 50 kg. The ceiling mount is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm.

All installation material is included with the product.

* The Neomounts by Newstar NS-EP100BLACK is an extension pole for ceiling mount models NM-C440BLACK, NM-C440DBLACK and FPMA-C340BLACK. This pole can be used as extra extension to the pole included with the models. In this way, the height of the ceiling mounts can be increased with and extra 107, 5 cm.

Specification

Product
Product id	605006
Brand	Newstar Computer Products
Partnr	FPMA-C340BLACK
EAN/UPC code	8717371446369
Warranty (months)	5 year
Mounting
Maximum weight capacity	50 kg
Minimum screen size compatibility	32 "
Mounting type	Ceiling
Maximum screen size	75
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	400 x 400 mm
Panel mounting interface	100 x 100, 400 x 400 mm
Ergonomics
Height adjustment type	Manual

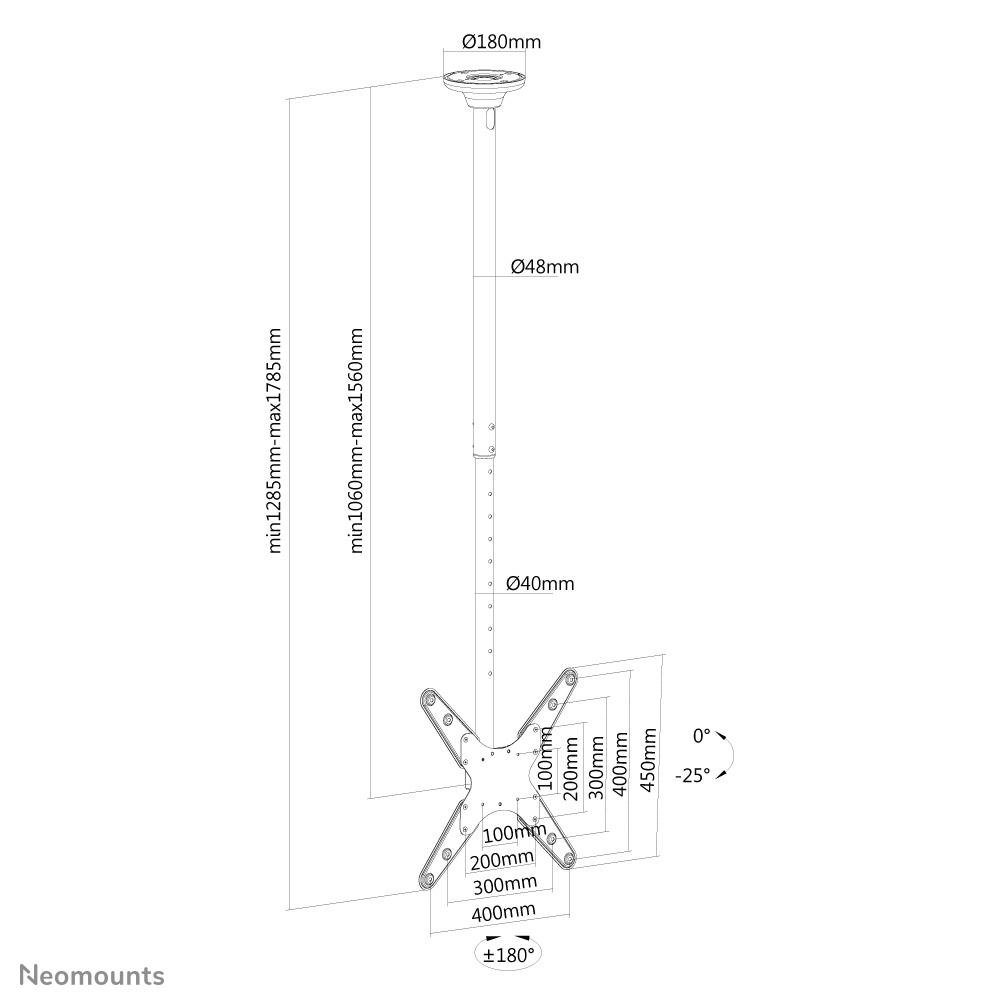

Height adjustment range	1060 - 1560 mm
Swivel angle	360 °
Number of pivot points	1
Height adjustment	Y
Tilt angle range	0 - 25 °
Design
Product colour	Black
Weight & dimensions
Height	1560 mm
Package width	250 mm
Package depth	145 mm
Package height	930 mm
Technical details
Angle of rotation	6 °
Number of displays supported	1
Package net weight	12800 g
Other features
Country of origin	China
Logistics data
Master (outer) case net weight	17600 g
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	30 stuk(s)
Master (outer) case width	310 mm
Master (outer) case length	270 mm
Master (outer) case height	950 mm
Master (outer) case weight	17600 g
Quantity per master (outer) case	2 stuk(s)
